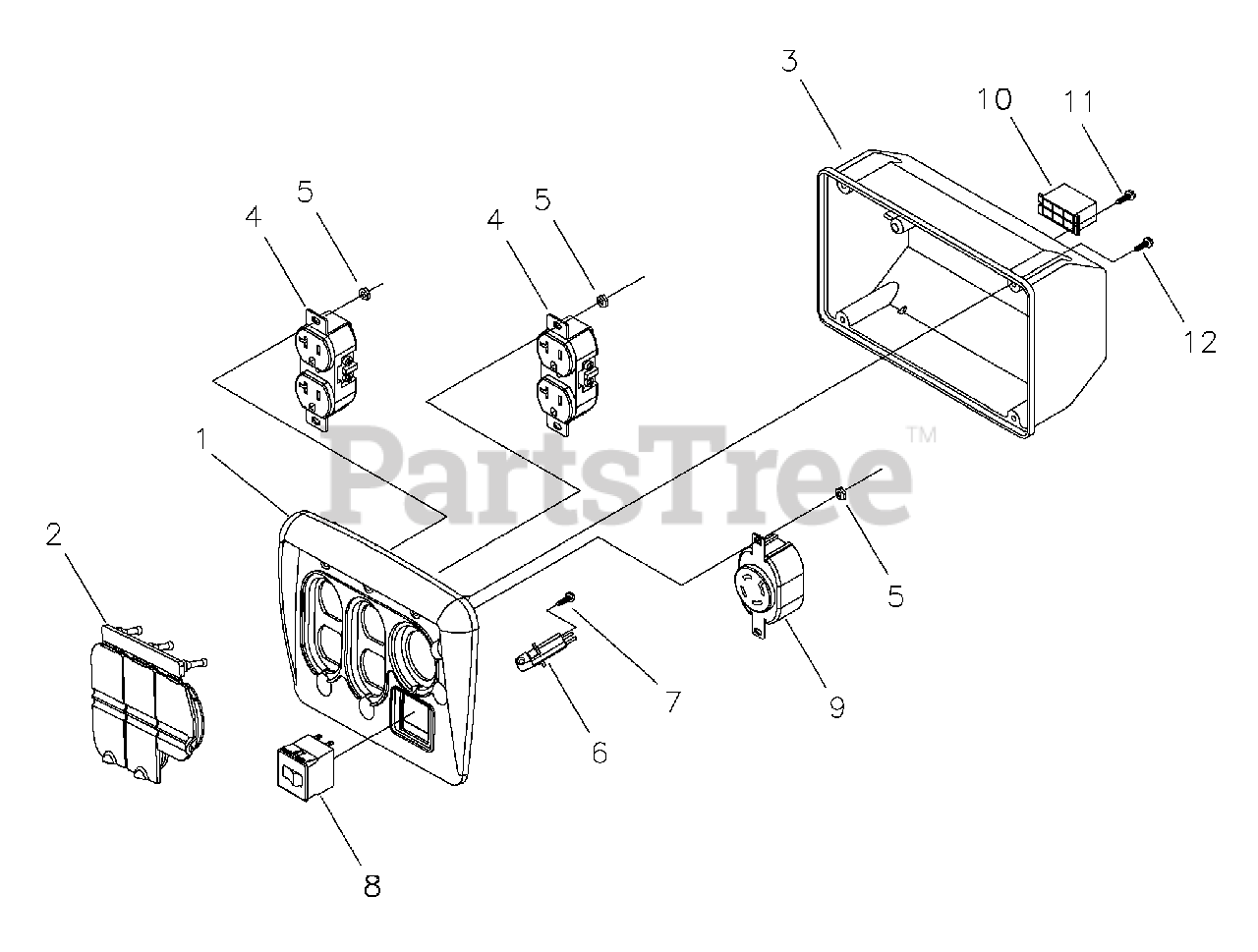

030243-2 - Craftsman 5,600 Watt Portable Generator Control Panel (202889) Parts Diagram

5,600 Watt Portable Generator

Control Panel (202889) Parts Diagram

  • Title

1

Briggs & Stratton 197471GS

Panel, Control

Note: Tableau, Commande

$35.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 197472GS

Cover, Outlet Flip

Note: Couvercle, Sortie A Rabat

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 188890GS

Cover, Back Panel

Note: Couvercle, Tableau Arriere

$15.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 197731GS

Outlet, 120V, 15/20A Dplx

Note: Prise, 120 V, 15/20 A Double

$18.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 189165GS

Nut, 5/32 Pal

Note: Ecrou, 5/32 Pal

$3.49

$

In Stock, only 2 left!

0

6

Briggs & Stratton 197729GS

Module, Led
(Superseded to 202951GS)

Note: Module, Del

$6.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 197958GS

Screw, 3 x 6, Tapping

Note: Vis, 3 x 6, Autotaraudeuse

$3.49

$

In Stock, only 3 left!

0

8

Briggs & Stratton 202030GS

Breaker, Circuit, 20A

Note: Disjoncteur, 20 A

$104.99

$

In Stock, only 1 left!

0

Briggs & Stratton 191481GS

Boot, Breaker Circuit

Note: Not Shown Gaine, Disjoncteur Non Montre

$11.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 43437GS

Outlet, 120/240V, 30A

Note: Prise, 120/240 V, 30 A

$17.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 22694GS

Housing, Rcptcl, 6 Pin

Note: BATI, Prise, 6 Broches

$5.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 82308GS

Screw, 3 x 18, Tapping

Note: VIS, 3 x 18, Autotaraudeuse

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 192241GS

Screw, 3.5 x 14, Tapping

Note: VIS, 3.5 x 14, Autotaraudeuse

$3.99

$

Usually ships in 2-12 days

0
