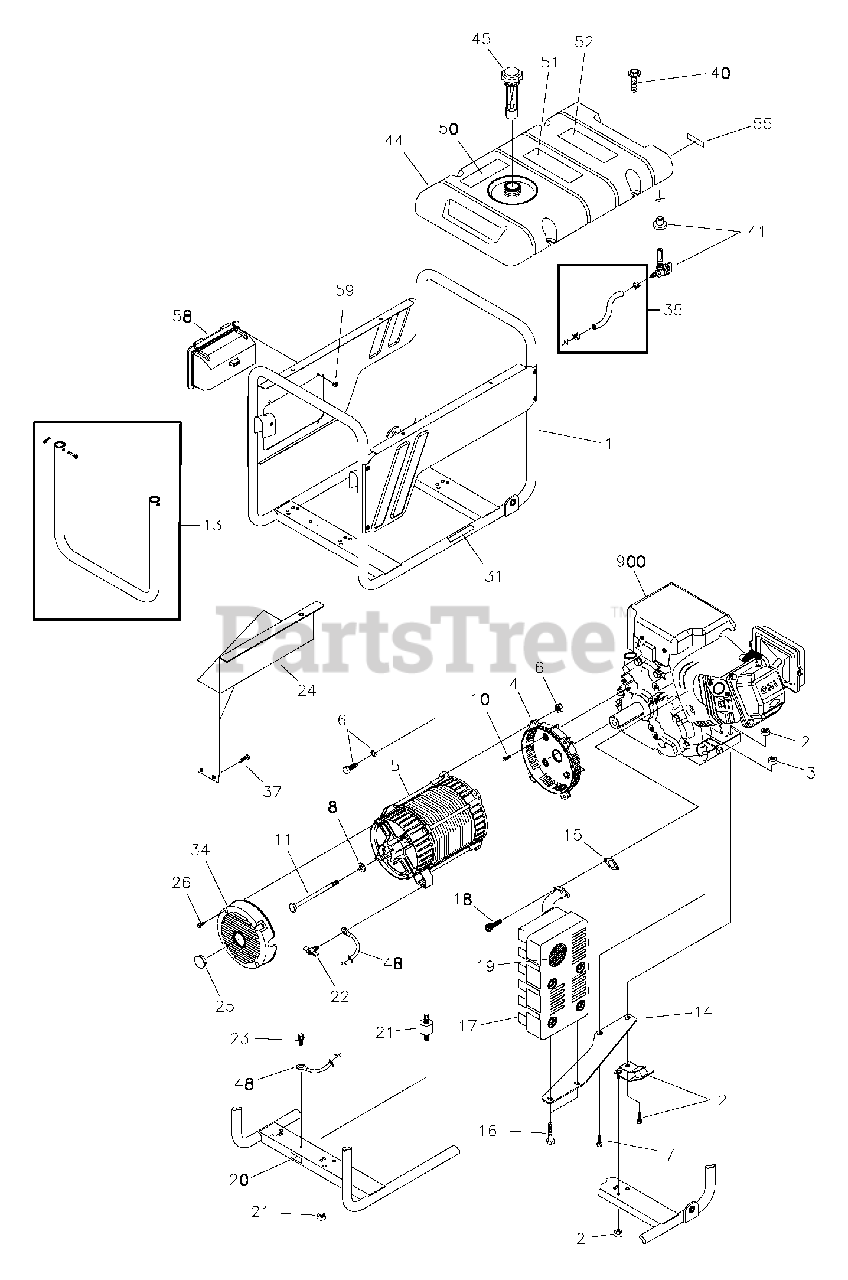

030245-0 - Troy-Bilt 5,500 Watt Portable Generator Main Unit (198401) Parts Diagram

5,500 Watt Portable Generator

Main Unit (198401) Parts Diagram

  • Title

1

Briggs & Stratton 198764GS

KIT, Cradle

$302.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT, Vibration, Mount, 45°

$14.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 190220GS

HOUSING, Engine Adapter

$46.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY,Alternator

Note: (see "Alternator")

$

$

Not available

6

Briggs & Stratton 194151GS

KIT, Hrdwr Mounting Adapter

$23.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 195398GS

TPHMS, M8 - 1.25 x 35

$2.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 96796GS

WASHER, M8 Flat

$3.49

$

Usually ships in 2-12 days

0

10

-----

SBHCS, 3/8-16 x 1.0 Lg.

Note: (Purchase locally)

$

$

Not available

11

Briggs & Stratton 47480GS

HHCS, 5/16-24 x 7

$11.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 198763GS

KIT, Handle

$

$

Not available

14

Briggs & Stratton 189009GS

BRACKET, Muffler

$25.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$8.49

$

In Stock, only 2 left!

0

16

-----

HHCS, M6 - 1.0 x 12 w/LW

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

-----

SCREW, 5/16 - 18 x 3/4"

Note: (Purchase locally)

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground, Green

$3.49

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT,Vibration Mount

$12.99

$

In Stock, only 2 left!

0

22

Briggs & Stratton 86494GS

SCREW,Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10 - 16 x 3/4, Self Drill
(Superseded to 313085GS)

$5.49

$

In Stock, only 1 left!

0

24

Briggs & Stratton 197424GS

SHIELD, Heat

$

$

Not available

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

SCREW, M5-0.8 x 10,Taptite

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

DECAL, Exhaust Warning

$16.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

COVER, Bearing Carrier with Cap

$14.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Hose (cut to fit)

$11.99

$

In Stock, Qty 8

0

37

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 199433GS

KIT, Fuel Tank Hrdwr w/U-Clips

$

$

Not available

--

Briggs & Stratton 199284GS

U-Clips, (Optional Accessory)

$4.49

$

In Stock, only 1 left!

0

41

Briggs & Stratton 192980GS

KIT,Valve, Fuel Tank

$18.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 193668GS

ASSY,Tank, Fuel

Note: (Includes Items 41, 50, 51, 52 & 55)

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$43.99

$

In Stock, Qty 13

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$

$

Not available

50

Briggs & Stratton 188333GS

DECAL, Gas Fill

$25.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$12.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$20.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL, Shut-Off, Fuel

$9.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 197641GS

ASSY, Control Panel

Note: (see "Control Panel")

$

$

Not available

59

-----

NUT, Palnut, 3/16"

Note: (Purchase locally)

$

$

Not available

900

-----

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

--

Briggs & Stratton MS5242

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

--

Briggs & Stratton 198375GS

MANUAL, Operator's

Note: Not Illustrated

$

$

Not available

--

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: Not Illustrated

$15.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 199384GS

DECAL, Family, CA EVP

Note: Not Illustrated

$

$

Not available

--

Briggs & Stratton 197474GS

CORDSET, Storm
(Superseded to 206775GS)

Note: Not Illustrated

$

$

Not available

--

Briggs & Stratton 198765GS

KIT, Decals

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 100031

STABILIZER, Fuel
(Superseded to 100126)

Note: Optional Accessory Not Shown

$3.49

$

In Stock, Qty 20+

0
