030274-0 - Briggs & Stratton ProClassic 5000-3 Portable Generator Alternator & Outlet Panel Parts Diagram

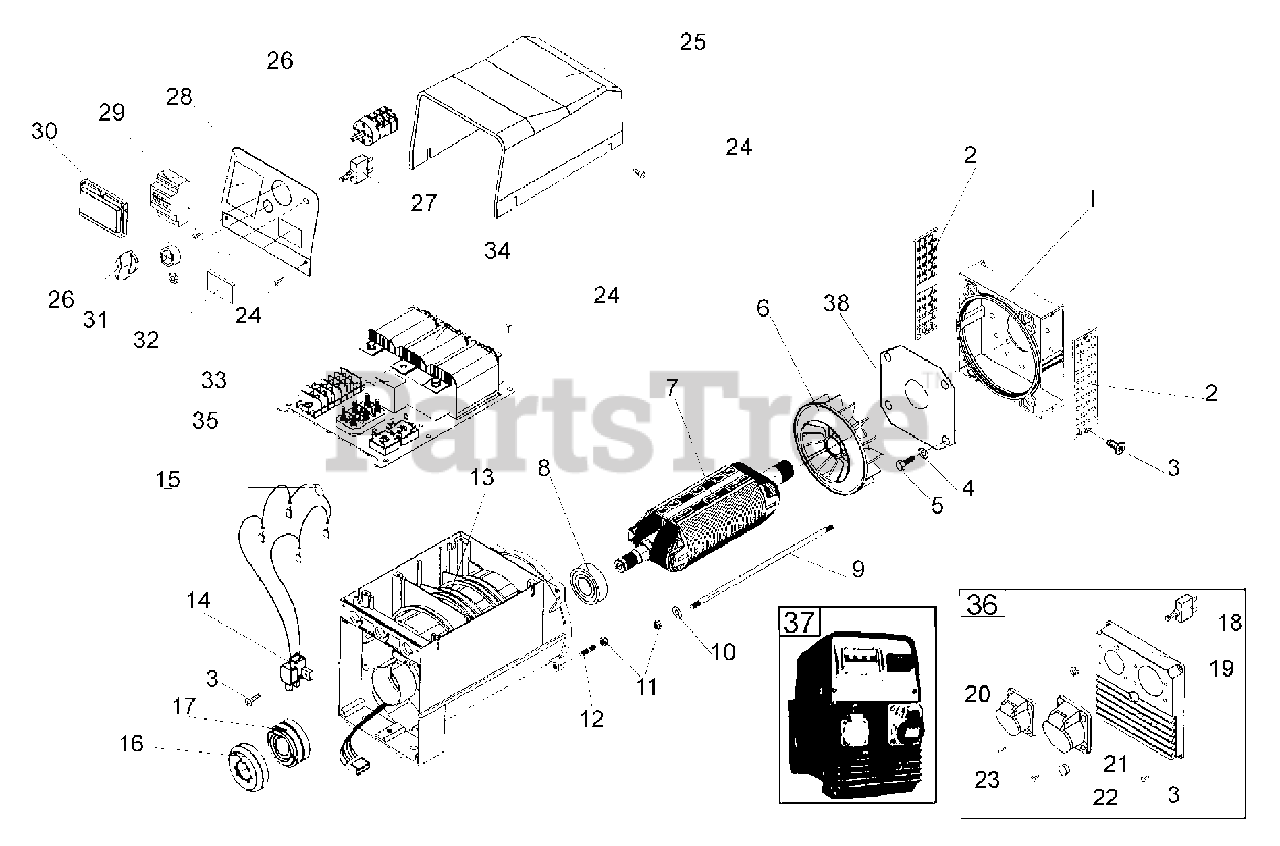

ProClassic 5000-3 Portable Generator

Alternator & Outlet Panel Parts Diagram

  • Title

1

Briggs & Stratton 102271GS

FLANGE PLATE

$

$

Not available

2

Briggs & Stratton 102139GS

SIDE GRILL (PLASTIC)

$

$

Not available

3

Briggs & Stratton ~NSP

SCREW MC PPHD M5*10MM

$

$

Currently unavailable

4

Briggs & Stratton ~NSP

WASHER LOCK M10/ 3/8 OXY BLACK

$

$

Currently unavailable

5

Briggs & Stratton ~NSP

SCREW CAP 3/8" UNC X 1"

$

$

Currently unavailable

6

Briggs & Stratton 102073GS

ROTOR FAN SINCRO

$

$

Not available

7

Briggs & Stratton 102336GS

ROTOR ASSEMBLY

$

$

Currently unavailable

8

Briggs & Stratton 102038GS

ROTOR BEARING

$

$

Not available

9

Briggs & Stratton 102160GS

ROTOR BOLT, M8-1.25*265MM

$

$

Currently unavailable

10

Briggs & Stratton ~NSP

WASHER FLAT M8 & 5/16"

$

$

Currently unavailable

11

Briggs & Stratton ~NSP

NUT NYLOCK M8-1.25 TYPE T

$

$

Currently unavailable

12

Briggs & Stratton 102131GS

STUD M8*30MM

$

$

Not available

13

Briggs & Stratton 102337GS

STATOR ASSY ET4 3PHASE

$

$

Currently unavailable

14

Briggs & Stratton 102240GS

BRUSHASSEMBLY

$

$

Currently unavailable

15

Briggs & Stratton 102338GS

VARISTOR

$

$

Currently unavailable

16

Briggs & Stratton 102243GS

SLIP RING COVER

$

$

Currently unavailable

17

Briggs & Stratton 102242GS

SLIP RING ASSEMBLY

$

$

Currently unavailable

18

Briggs & Stratton 102132GS

CIRCUIT BREAKER 10A

$

$

Not available

19

Briggs & Stratton 102339GS

OUTLET PANEL BLANK SINCRO 3 PHASE

$

$

Currently unavailable

20

Briggs & Stratton 102418GS

OUTLET 230V 16AMP BLUE

$

$

Currently unavailable

21

Briggs & Stratton 102341GS

SOCKET OUTLET 16A 230/415V

$

$

Currently unavailable

22

Briggs & Stratton 102085GS

END CAP PLASTIC PLUG

$

$

Not available

23

Briggs & Stratton ~NSP

SCREW SELF TAP #10*15MM

$

$

Currently unavailable

24

Briggs & Stratton ~NSP

SCREW MACHINE M5*8MM

$

$

Currently unavailable

25

Briggs & Stratton 102287GS

COVER TOP BOX

$

$

Currently unavailable

26

Briggs & Stratton 102342GS

SWITCH ROTORY SINCRO 3PHASE

$

$

Currently unavailable

27

Briggs & Stratton 102343GS

CIRCUIT BREAKER 3A

$

$

Currently unavailable

28

Briggs & Stratton 102344GS

PANEL ASSY TOP BOX (ALUMINIUM)

$

$

Currently unavailable

29

Briggs & Stratton 102345GS

CIRCUIT BREAKER ASSY SINCRO 3PHASE 6A

$

$

Currently unavailable

30

Briggs & Stratton 102346GS

COVER CLEAR PLASTIC (CIRCUIT BREAKERS)

$

$

Currently unavailable

31

Briggs & Stratton 102347GS

LAMP HOLDER ASSY SINCRO 3 PHASE

$

$

Currently unavailable

32

Briggs & Stratton 102348GS

VOLTMETER 360-440V L.E.D. TYPE

$

$

Currently unavailable

33

Briggs & Stratton 102349GS

FILTER ASSY (WAVE FORM)

$

$

Currently unavailable

34

Briggs & Stratton 102350GS

TRANSFORMER ASSY COMPOUND

$

$

Currently unavailable

35

Briggs & Stratton 102161GS

BRIDGE RECTIFIER

$

$

Not available

36

Briggs & Stratton 102927GS

OUTLET PANEL COMPLETE ET4.0

$

$

Currently unavailable

37

Briggs & Stratton 102352GS

ALTERNATOR SINCRO ET4.0 3/1PHASE 4KVA

$

$

Currently unavailable

38

Briggs & Stratton 102252GS

GUARD FINGER

$

$

Currently unavailable
