030274-0 - Briggs & Stratton ProClassic 5000-3 Portable Generator Frame And Fittings Parts Diagram

ProClassic 5000-3 Portable Generator

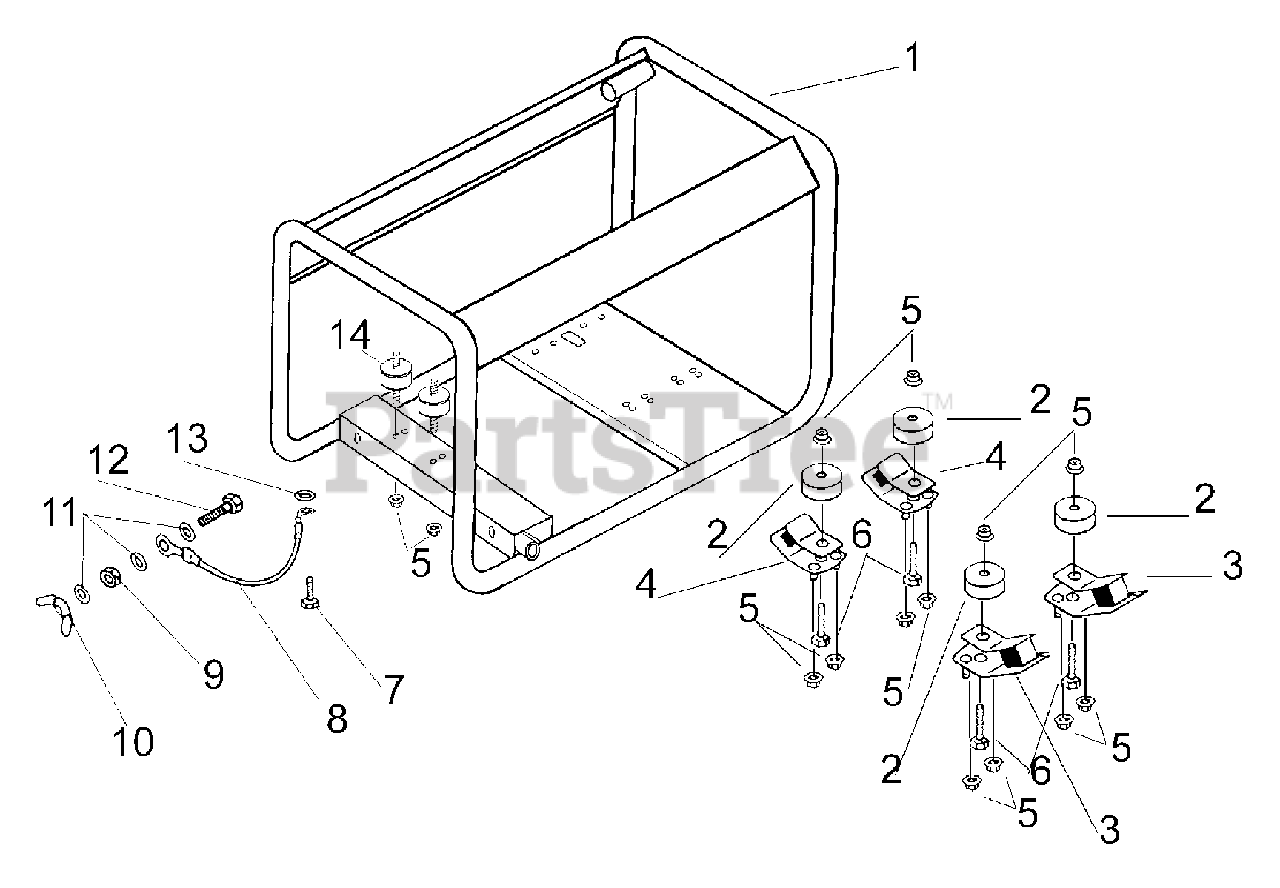

Frame And Fittings Parts Diagram

  • Title

1

Briggs & Stratton 103216GS

CRADLE PROCLASSIC 5000, PROPLUS4500

$

$

Currently unavailable

2

Briggs & Stratton 102136GS

SPACER 24MM

$

$

Currently unavailable

3

Briggs & Stratton 102031GS

VIBRATION MOUNT 45 DEGREE HARD

$

$

Not available

4

Briggs & Stratton 102033GS

VIBRATION MOUNT 45 DEGREE SOFT

$

$

Not available

5

Briggs & Stratton ~NSP

NUT FLANGE M8-1.25

$

$

Currently unavailable

6

Briggs & Stratton 103007GS

SCREW SET HXHD M8-1.25X60MM

$

$

Currently unavailable

7

Briggs & Stratton ~NSP

SCREW SET M8-1.25X12 PLATED

$

$

Currently unavailable

8

Briggs & Stratton 102050GS

LEAD EARTH ASSY 145MM

$

$

Not available

9

Briggs & Stratton ~NSP

NUT FULL M6-1.0

$

$

Currently unavailable

10

Briggs & Stratton 102036GS

NUT WING M6-1.0

$

$

Not available

11

Briggs & Stratton ~NSP

WASHER SHAKEPROOF 1/4" & M6 INT

$

$

Currently unavailable

12

Briggs & Stratton ~NSP

SCREW SET M6-1.0X25MM PLATED

$

$

Currently unavailable

13

Briggs & Stratton ~NSP

WASHER SHAKEPROOF M8 INT

$

$

Currently unavailable

14

Briggs & Stratton 102034GS

VIBRATION MOUNT 32MM DIAMETER

$

$

Not available

--

Briggs & Stratton 102077GS

DECAL WARNING READ MANUAL

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 102048GS

DECAL GND

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 103235GS

DECAL, PROCLASSIC 5000-3

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 102041GS

DECAL CAUTION HOT

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 102076GS

DECAL ELECTRICAL HAZARD

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton MS5796

Owner's MANUAL EUROPE 25L

Note: (Not Illustrated)

$6.49

$

Usually ships in 2-12 days
