030330-0 - Husqvarna 2,000 Watt Portable Generator Alternator Parts Diagram

2,000 Watt Portable Generator

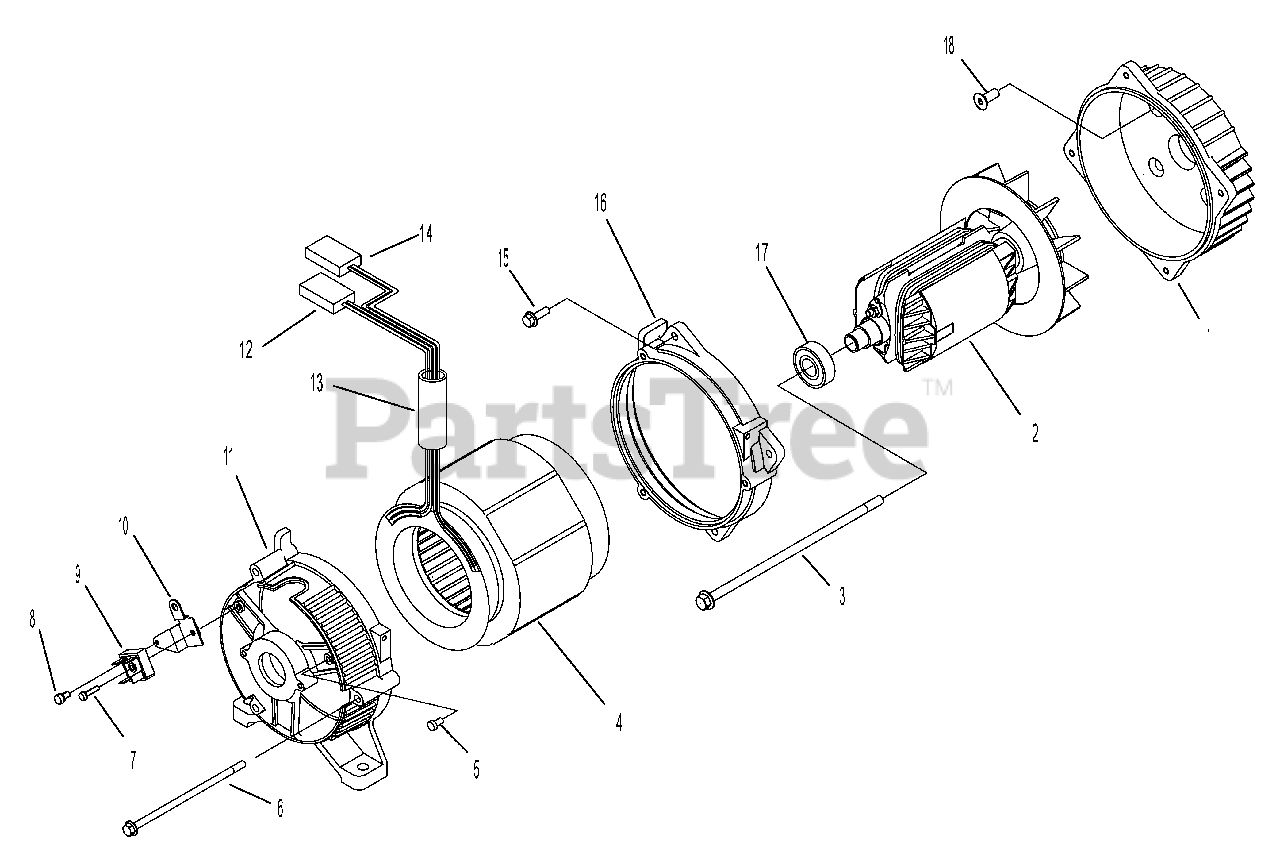

Alternator Parts Diagram

  • Title

1

NSP

Adptr, Eng

$

$

Not available

2

Briggs & Stratton 197890GS

Assy, Rotor

$237.99

$

Usually ships in 2-12 days

0

3

NSP

Bolt, Rotor

$

$

Not available

4

Briggs & Stratton 197892GS

Assy, Stator

$521.99

$

Usually ships in 2-12 days

0

5

NSP

Screw, M5 x 7

$

$

Not available

6

Briggs & Stratton 197894GS

Bolt, Stator

$21.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 197895GS

Screw, M4 x 18

$3.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 197896GS

Screw, M5 x 10

$2.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 187462GS

Rectifier

$69.99

$

In Stock, only 1 left!

0

10

NSP

Bracket, Rectifier

$

$

Not available

11

NSP

RBC

$

$

Not available

12

Briggs & Stratton 197899GS

Connector

$8.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 197900GS

Sleeve

$31.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 197901GS

Connector

$8.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 197864GS

Screw, M6 x 20

$3.49

$

Usually ships in 2-12 days

0

16

NSP

Adptr, Mntng, Alt

$

$

Not available

17

Briggs & Stratton 187411GS

Bearing

$68.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 197904GS

Screw, M8 x 20

$4.99

$

Usually ships in 2-12 days

0
