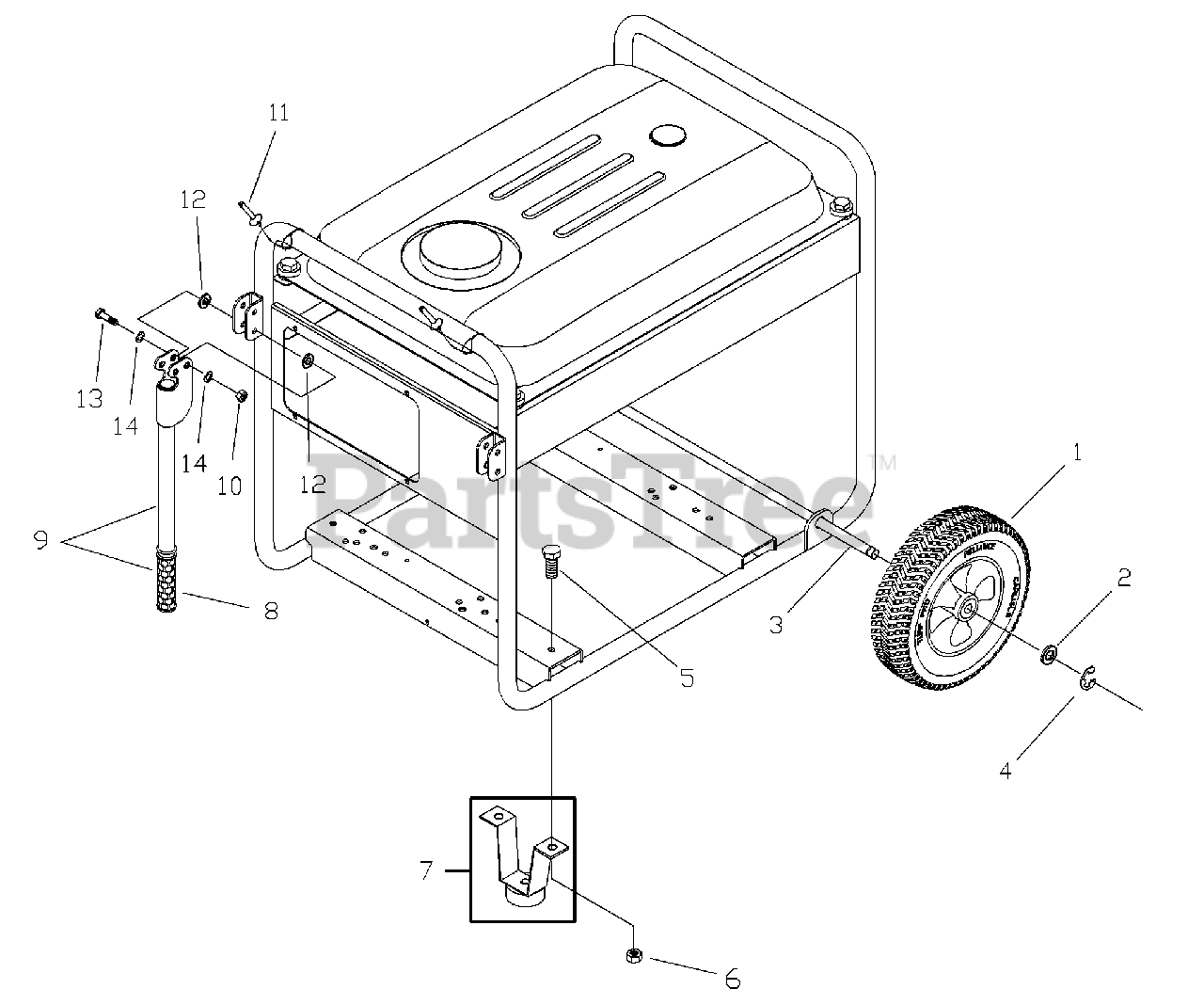

030334-0 - Briggs & Stratton 8,000 Watt Portable Generator Wheel Kit Parts Diagram

8,000 Watt Portable Generator

Wheel Kit Parts Diagram

  • Title

1

Briggs & Stratton 203273GS

WHEEL

$75.99

$

Usually ships in 2-12 days

0

2

WASHER, 5/8"

Note: Purchase locally

$

$

Not available

3

Briggs & Stratton 191267RGS

AXLE, 5/8"

$44.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 191265GS

E-RING
(Superseded to 703977)

$4.99

$

In Stock, Qty 20+

0

5

HHCS, M8 1.25 x 20

Note: Purchase locally

$

$

Not available

6

Briggs & Stratton 67989GS

NUT, M8, Flange Serrated

$3.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 203977GS

ASSY, Support

$35.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 198669GS

GRIP

$8.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B193200GS

ASSY, Handle with Grip

$39.99

$

In Stock, Qty 6

0

10

NUT, M8 - 1.25, Nylok

Note: Purchase locally

$

$

Not available

11

Briggs & Stratton B4135GS

PIN, Handle

$6.99

$

Usually ships in 2-12 days

0

12

WASHER, 1.2 x 0.346 x 0.03, Nylon

Note: Purchase locally

$

$

Not available

13

HHCS, M8 - 1.25 x 45

Note: Purchase locally

$

$

Not available

14

WASHER, Flat, 5/16 - M8

Note: Purchase locally

$

$

Not available

Briggs & Stratton 203979GS

KIT, Hardware (Includes Items 2, 4, 5, 6, 10, 11, 12, 13 & 14)

Note: Items Not Illustrated

$12.99

$

Usually ships in 2-12 days

0
