030336-0 - Briggs & Stratton 6,500 Watt Portable Generator Control Panel (202531) Parts Diagram

6,500 Watt Portable Generator

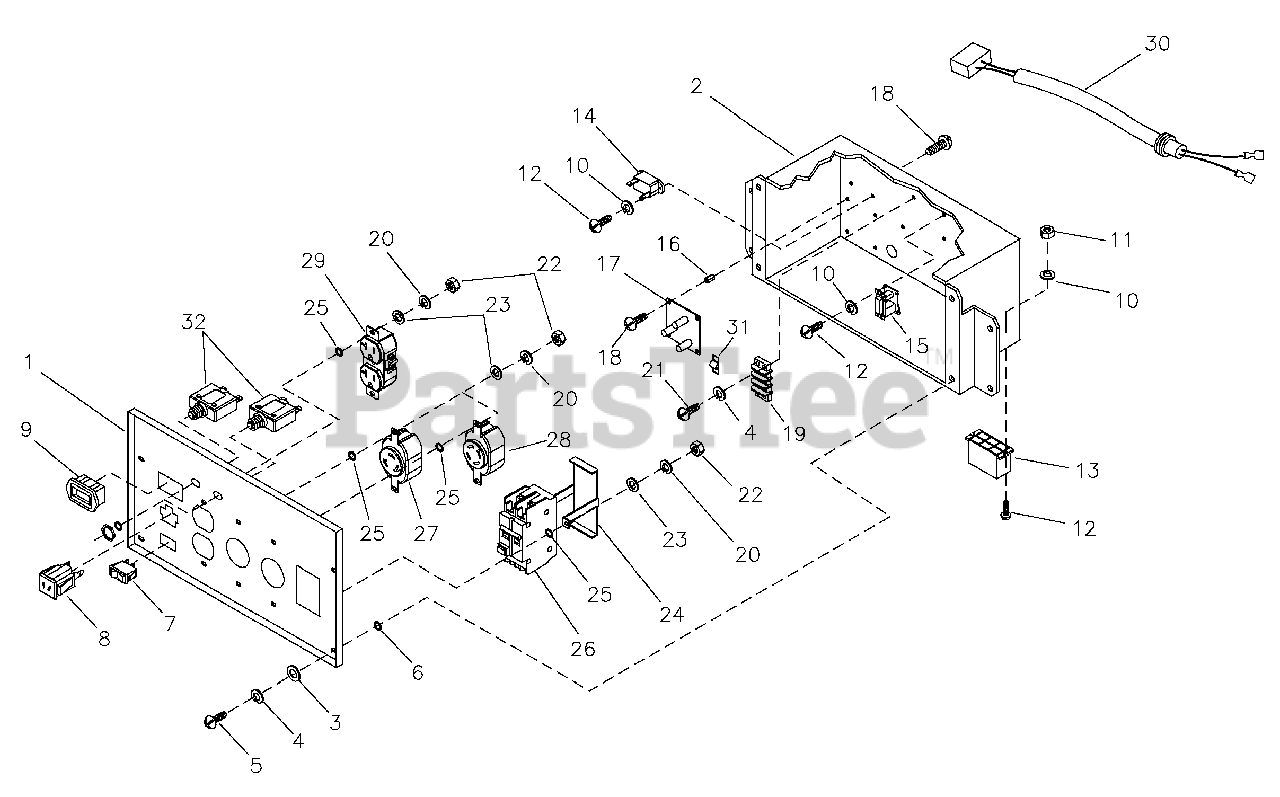

Control Panel (202531) Parts Diagram

  • Title

1

Briggs & Stratton B192833GS

PANEL, Control

$251.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B192836GS

BOX, Control Panel

$192.99

$

Usually ships in 2-12 days

0

3

-----

*WASHER, Flat, #10 - M5

$

$

Not available

4

-----

*LOCKWASHER, M5

$

$

Not available

5

-----

*SCREW, Phillips Head, M5 - 0.8 x 12

$

$

Not available

6

-----

*WASHER, Shakeproof, INT., M6-1/4

$

$

Not available

7

Briggs & Stratton 82538GS

SWITCH, ON/OFF

$6.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 90418GS

OUTLET, 12VDC

$

$

Not available

9

Briggs & Stratton 202602GS

METER, Hour

$97.99

$

Usually ships in 2-12 days

0

10

-----

*LOCKWASHER, M3

$

$

Not available

11

-----

*NUT, M3-1/2

$

$

Not available

12

-----

*SCREW, Phillips Head, M3 - 1/2 x 10

$

$

Not available

13

Briggs & Stratton 22694GS

CONNECTOR

$5.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 87962GS

BREAKER, Circuit, 10A

$29.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 84028GS

TRANSFORMER

$47.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 64525GS

STANDOFF

$5.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 193362GS

BOARD, Idle Control

$164.99

$

Usually ships in 2-12 days

0

18

-----

*SCREW, Phillips Pan Head, Self Tapping, #6-32 x 3/8

$

$

Not available

19

Briggs & Stratton 193077GS

STRIP, Terminal

$21.99

$

Usually ships in 2-12 days

0

20

-----

*LOCKWASHER, M4

$

$

Not available

21

-----

*SCREW, Phillips Head, M5 - 0.8 x 20

$

$

Not available

22

-----

*NUT, M4 - 0.7

$

$

Not available

23

-----

*WASHER, Flat, M4

$

$

Not available

24

Briggs & Stratton 192931GS

BRACKET

$46.99

$

Usually ships in 2-12 days

0

25

-----

*WASHER, Shakeproof, INT. #8

$

$

Not available

26

Briggs & Stratton 192828DGS

BREAKER, Circuit, 30A

$215.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 68868GS

OUTLET, 120V TL30A
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 43437GS

OUTLET, 120/240V TL30A

$17.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 68759GS

OUTLET, 120V 20A

$24.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton 193036GS

HARNESS, Wiring

$54.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 193095GS

BLOCK, Terminal

$13.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 202394GS

BREAKER, Circuit, 20A

$33.99

$

In Stock, only 2 left!

0
