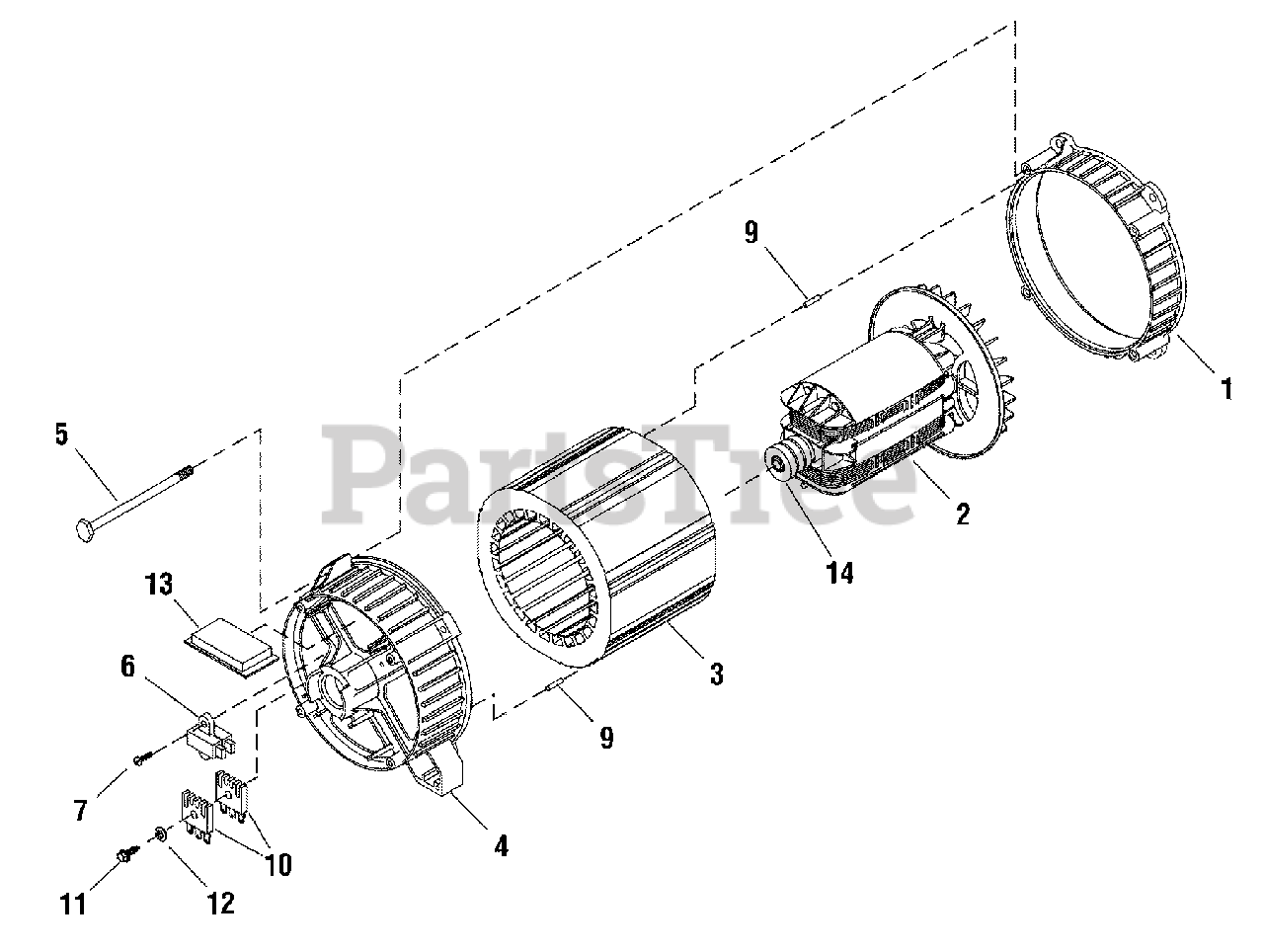

030337-0 - Briggs & Stratton 8,000 Watt Portable Generator Alternator (193277) Parts Diagram

8,000 Watt Portable Generator

Alternator (193277) Parts Diagram

  • Title

1

Briggs & Stratton 209599GS

ADAPTER, Alternator

$35.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 192938GS

ROTOR

$434.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 192937AGS

STATOR

$633.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 186060GS

CARRIER, Bearing
(Superseded to 193336GS)

$39.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 86308KGS

BOLT

$9.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 66386GS

BRUSH ASSEMBLY

$23.99

$

In Stock, only 4 left!

0

7

Briggs & Stratton 66849GS

TAPTITE

$4.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 81917GS

PIN

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 65795GS

RECTIFIER, Battery Charge

$

$

Not available

11

Briggs & Stratton 66849CGS

TAPTITE

$4.99

$

Usually ships in 2-12 days

0

12

-----

* WASHER, Shakeproof, EXT #10

$

$

Not available

13

Briggs & Stratton 205858GS

REGULATOR, Voltage

$107.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 65791GS

BEARING

$34.99

$

Usually ships in 2-12 days

0
