030338-0 - Briggs & Stratton 10,000 Watt Portable Generator Control Panel (204847) Parts Diagram

10,000 Watt Portable Generator

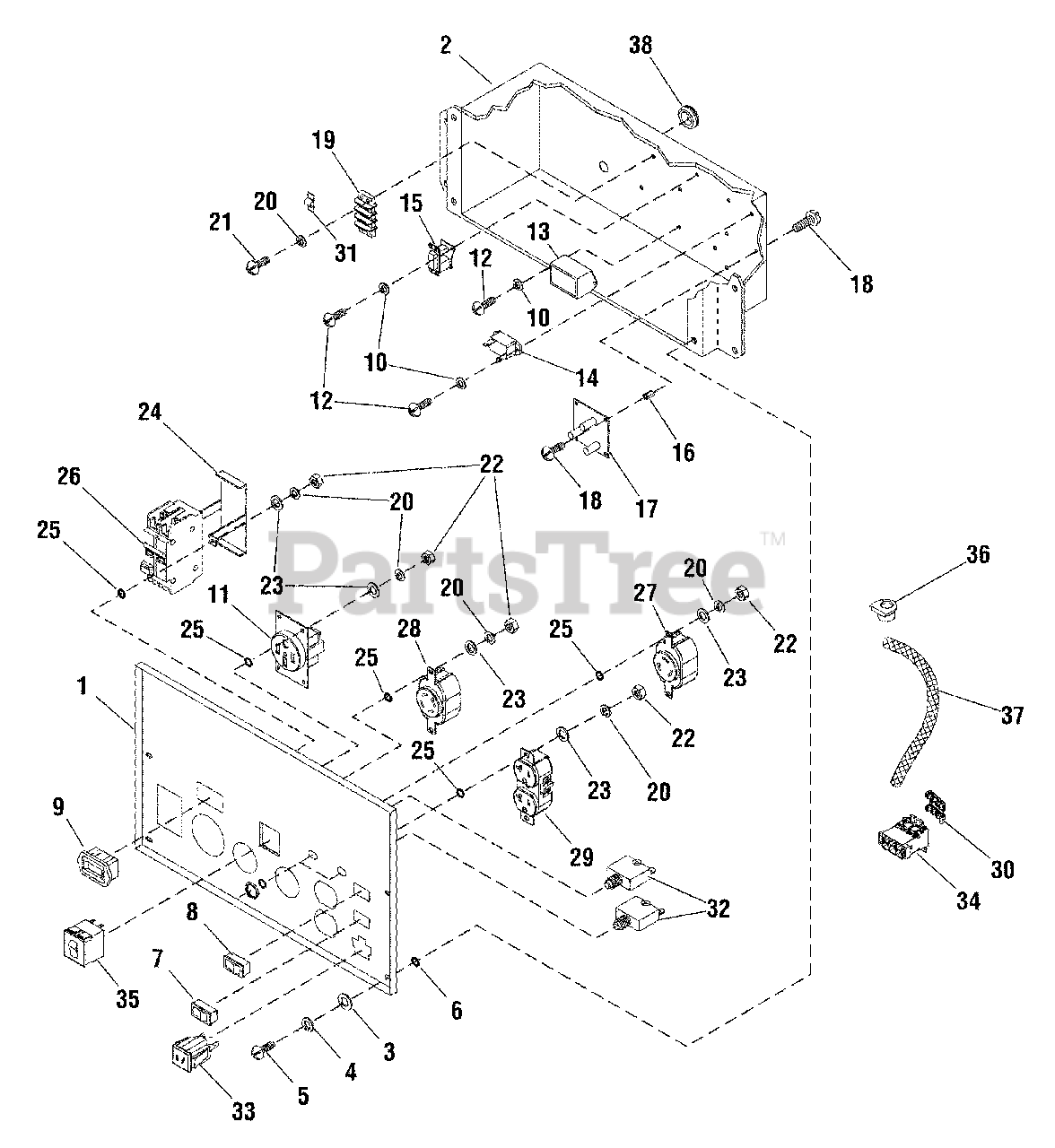

Control Panel (204847) Parts Diagram

  • Title

1

Briggs & Stratton 204581GS

PANEL, Control
(Superseded to 204578GS)

$993.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 201864GS

BOX, Control Panel

$219.99

$

Usually ships in 2-12 days

0

3

-----

* WASHER, Flat, #10 - M5

$

$

Not available

4

-----

* LOCKWASHER, M5

$

$

Not available

5

-----

* SCREW, Phillips Head, M5 - 0.8 x 12

$

$

Not available

6

-----

* WASHER, Shakeproof, INT., M6-1/4

$

$

Not available

7

Briggs & Stratton 78653GS

SWITCH, ON/OFF

$4.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 82538GS

SWITCH, ON/OFF

$6.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 202602GS

METER, Hour

$97.99

$

Usually ships in 2-12 days

0

10

-----

* LOCKWASHER, M3

$

$

Not available

11

Briggs & Stratton B4262GS

OUTLET, 125/250V 50A

$142.99

$

Usually ships in 2-12 days

0

12

-----

* SCREW, Phillips Head, M3 - 1/2 x 10

$

$

Not available

13

Briggs & Stratton 77314GS

RELAY

$76.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 87962GS

BREAKER, Circuit, 10A

$29.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 84028GS

TRANSFORMER

$47.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 64525GS

STANDOFF

$5.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 195406GS

BOARD, Idle Control

$198.99

$

Usually ships in 2-12 days

0

18

-----

* SCREW, Phillips Pan Head, Self Tapping, #6-32 x 3/8

$

$

Not available

19

Briggs & Stratton 92953GS

BLOCK, Terminal, 50A

$17.99

$

Usually ships in 2-12 days

0

20

-----

* LOCKWASHER, M4

$

$

Not available

21

-----

* SCREW, Phillips Head, M4 - 0.7 x 20

$

$

Not available

22

-----

* NUT, M4 - 0.7

$

$

Not available

23

-----

* WASHER, Flat, M4

$

$

Not available

24

Briggs & Stratton 192931GS

BRACKET

$46.99

$

Usually ships in 2-12 days

0

25

-----

* WASHER, Shakeproof, INT. #8

$

$

Not available

26

Briggs & Stratton 192828FGS

BREAKER, Circuit, 50A

$185.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 68868GS

OUTLET, 120V TL30A
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 43437GS

OUTLET, 120/240V TL30A

$17.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 68759GS

OUTLET, 120V 20A

$24.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton 199532GS

STRIP, Dual Row

$5.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 193597GS

BLOCK, Terminal

$15.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 202394GS

BREAKER, Circuit, 20A

$33.99

$

In Stock, only 2 left!

0

33

Briggs & Stratton 90418GS

OUTLET, 12VDC

$

$

Not available

34

Briggs & Stratton 199528GS

CONNECTOR

$25.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 202033GS

BREAKER, Circuit, 30A

$104.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 188632GS

BOOT

$3.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 201171GS

TUBING, Fabric

$

$

Currently unavailable

38

Briggs & Stratton 62265GS

GROMMET

$8.49

$

Usually ships in 2-12 days

0
