030340-0 - VOX 6,500 Watt Portable Generator Main Unit Parts Diagram

6,500 Watt Portable Generator

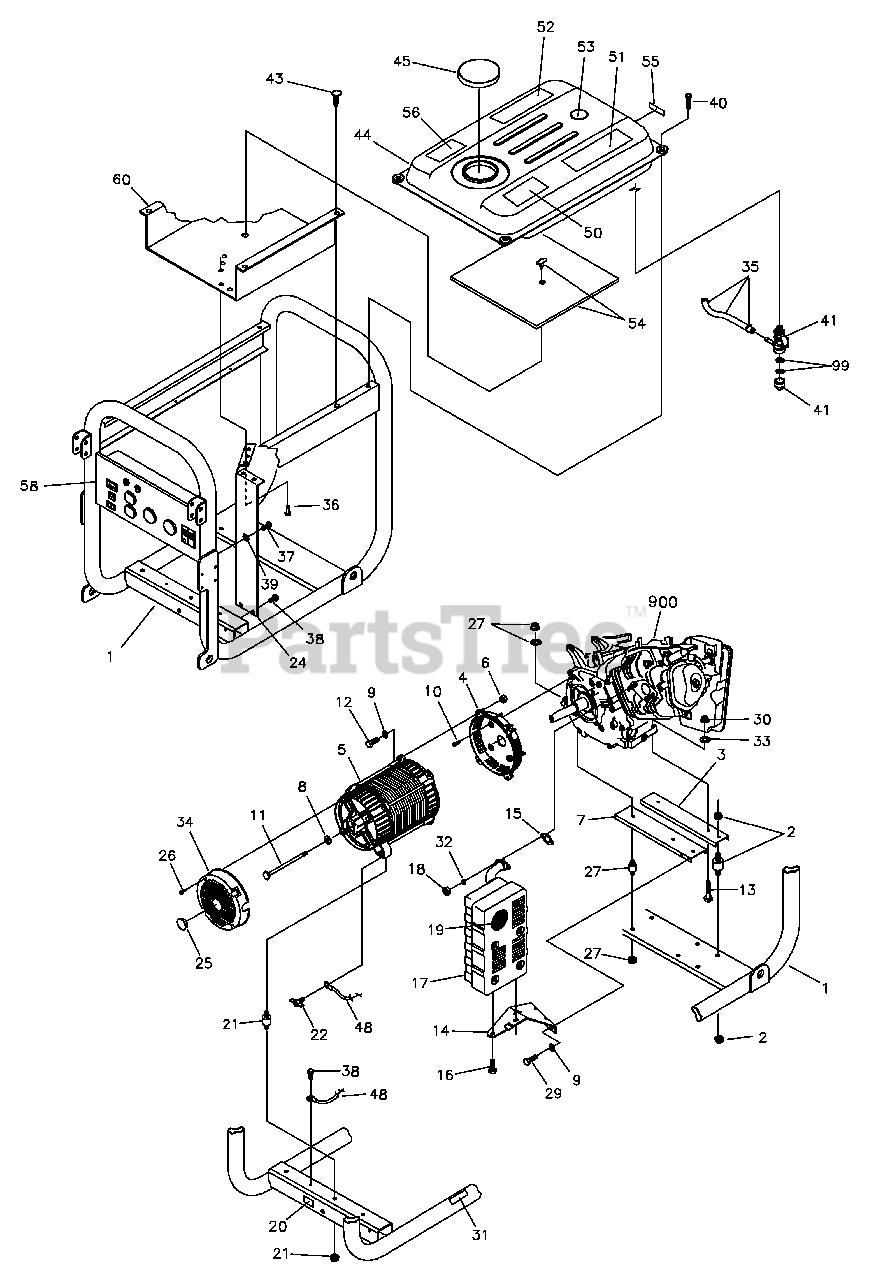

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B204631GS

Kit, Cradle

Note: Includes #20 & 31

$533.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194218GS

Kit, Vibration Mount

$16.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B92531GS

Bracket, Support Engine

$30.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 190220GS

Adapter, Engine

$43.99

$

Usually ships in 2-12 days

0

5

NSP

Assy., Alt

Note: Alternator

$

$

Not available

6

Nut, Hex M8 1.25

Note: (Purchase locally)

$

$

Not available

7

Briggs & Stratton B92731GS

Bracket, Support Eng/Muffler

$23.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

Washer, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

Washer, Lock 5/16 M8

Note: (Purchase locally)

$

$

Not available

10

Briggs & Stratton 190274DGS

SBHC, 3/8-16 x 7/8"

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365JGS

HHCS, 5/16 - 24 x 7.75

$21.99

$

Usually ships in 2-12 days

0

12

HHCS, M8 - 1.25 x 25

Note: (Purchase locally)

$

$

Not available

13

HHCS, 5/16-18 x 1-3/4

Note: (Purchase locally)

$

$

Not available

14

Briggs & Stratton 193048GS

Bracket, Muffler

$28.99

$

Usually ships in 2-12 days

0

15

NSP

Gasket, Exhaust

$

$

Not available

16

HHCS, M6 - 1.0 x 12

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton 192569GS

Muffler

$179.99

$

In Stock, only 2 left!

0

18

Briggs & Stratton 67989GS

Nut, M8 Flange Serrated

$3.49

$

In Stock, Qty 20+

0

19

Briggs & Stratton 83083GS

Screen, Spark Arrest

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton B4986GS

Decal, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

Kit, Vibration Mount

$11.99

$

In Stock, Qty 17

0

22

Briggs & Stratton 86494GS

Screw, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 194390GS

Assy., Heat Shield

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

Cap

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

Taptite, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 194219GS

Kit, Vibration Mount

$16.99

$

Usually ships in 2-12 days

0

29

HHCS, 5/16 - 18 x 3/4

Note: (Purchase locally)

$

$

Not available

30

Briggs & Stratton 189160GS

Nut, 5/16-18, Serrated Flange

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 200310GS

Decal, Exhaust Warning

$15.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 31579GS

Spacer

$19.99

$

Usually ships in 2-12 days

0

33

Washer, 0.34 x 1 x 10GA

Note: (Purchase locally)

$

$

Not available

34

Briggs & Stratton 195422GS

Cover, RBC Plastic With Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

Kit, Hose, Fuel

Note: Cut To Fit

$10.99

$

In Stock, Qty 7

0

36

Briggs & Stratton 192376GS

Screw, 12 - 24 x 1/2 Thread Forming

$3.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 56893GS

Crimptite, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

38

Briggs & Stratton B2153GS

Screw, Self Driller, 12-14 x 7/8

$4.49

$

Usually ships in 2-12 days

0

39

Washer, Shakeproof, Ext, M6 - 1/4

Note: (Purchase locally)

$

$

Not available

40

Briggs & Stratton 197955GS

Screw, M8 - 1.25 x 20 Taptite

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 189133GS

Valve, Fuel
(Superseded to 310573GS)

$11.99

$

In Stock, Qty 18

0

43

Briggs & Stratton B1797GS

Tree Clip

$3.99

$

In Stock, Qty 8

0

44

Briggs & Stratton 205859GS

Assy., Tank Fuel

Note: Includes Items 41, 50,41, 50, 51, 52 & 56

$

$

Not available

45

Briggs & Stratton 189135GS

Cap, Fuel

$20.99

$

In Stock, only 1 left!

0

48

Briggs & Stratton 195373GS

Wire, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

Decal, Instruction Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194984GS

Decal, Warning

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 94480GS

Decal, Start Instructions

$17.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 192724GS

Gauge

$

$

Not available

54

Briggs & Stratton 194448GS

Kit, Insulation w/Clip

$31.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

Decal, Fuel Shutoff

$9.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 202997GS

Decal, Warning, Co

$13.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 205017GS

Assy. Control Panel

$713.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 194389GS

Heatsheild
(Superseded to 208564GS)

$133.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 189759GS

Kit, Fuel Valve Repair
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 5

0

900

Engine

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 205156GS

Manual, Operator's

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 202179GS

Decal, Family CA, EVP

Note: Parts Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

Bottle, Oil
(Superseded to 100005)

Note: Parts Not Illustrated

$8.99

$

In Stock, Qty 8

0

Briggs & Stratton 65787GS

Cable, Battery Charge

Note: Parts Not Illustrated

$24.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43438GS

PLUG, 120/240V, 30A

Note: Parts Not Illustrated

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100523GS

PLUG, 125V, 30A

Note: Parts Not Illustrated

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 200082GS

Connector, Barb, Fuel

Note: Parts Not Illustrated

$8.99

$

In Stock, only 1 left!

0

Briggs & Stratton 193157GS

Wire Harness

Note: Parts Not Illustrated

$42.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 205960GS

Kit, Decals, Service

Note: Parts Not Illustrated

$42.99

$

Usually ships in 2-12 days

0
