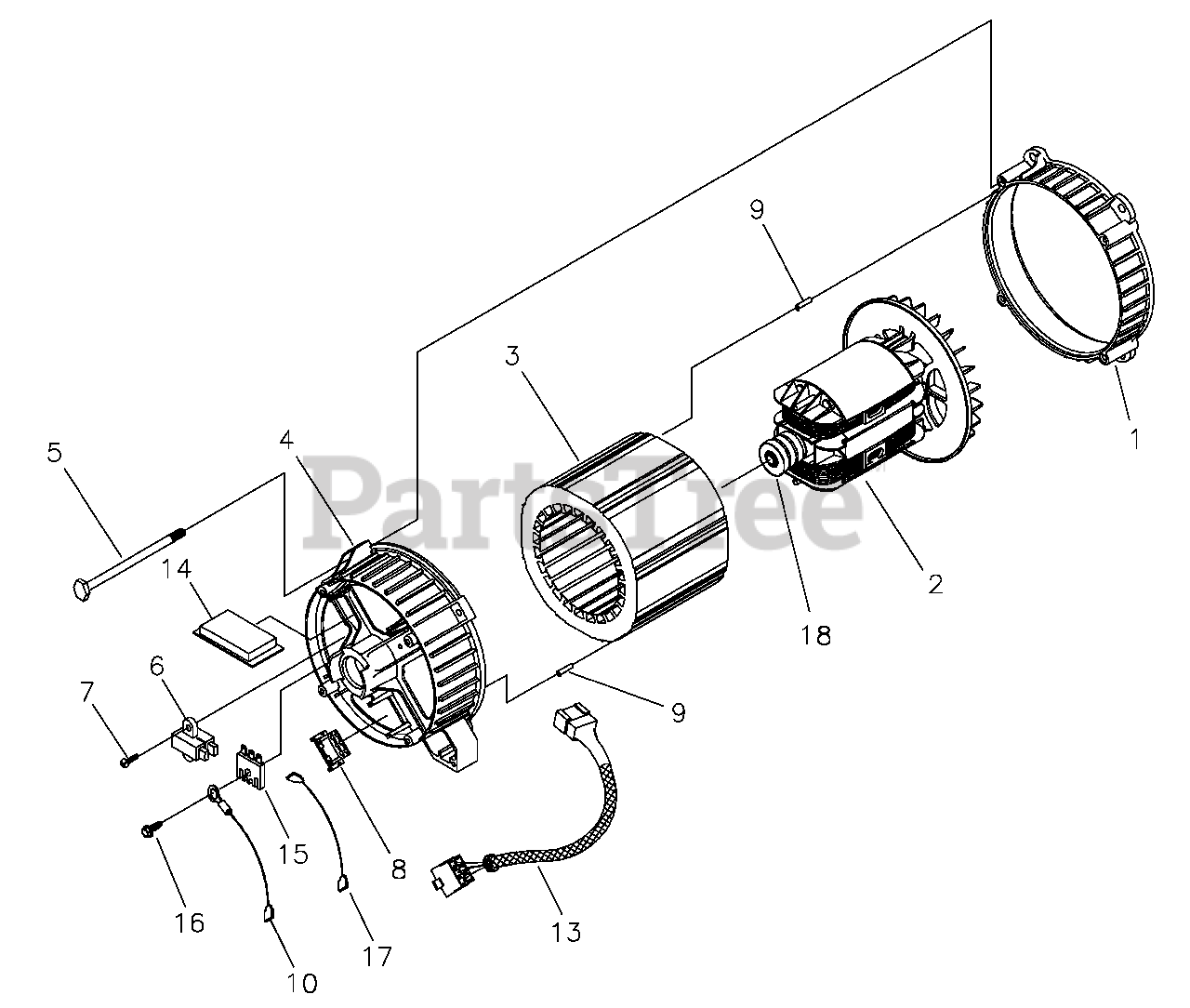

030342-0 - Briggs & Stratton 4,000 Watt Portable Generator Alternator Parts Diagram

4,000 Watt Portable Generator

Alternator Parts Diagram

  • Title

1

Briggs & Stratton 186059GS

Adapter, Mounting, Alternator
(Superseded to 209599GS)

$35.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 193034GS

Rotor

Note: Includes Item #18

$260.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 193035AGS

Stator

$291.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 186060GS

RBC, With O-Ring
(Superseded to 193336GS)

Note: p/n 189197GS

$39.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 86308GS

HHCS, M6 - 1 x 115 SEMS

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 66386GS

Assy, Holder, Brush

$23.99

$

In Stock, only 4 left!

0

7

Briggs & Stratton 66849GS

Taptite, M5 - 0.8 x 16

$4.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 22694GS

Receptacle, 6 Pin

$5.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 81917GS

Pin, Roll, 4mm x 10

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 193428AGS

Wire-A, Ground

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 193157GS

Harness, Wire, Power

$42.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 189769GS

Regulator
(Superseded to 205858GS)

$107.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 65795GS

Rectifier

$

$

Not available

16

Briggs & Stratton 66849AGS

Taptite, M5 - 0.8 x 20

$4.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 192403XGS

Wire, Ground

$3.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 65791GS

Bearing

$34.99

$

Usually ships in 2-12 days

0
