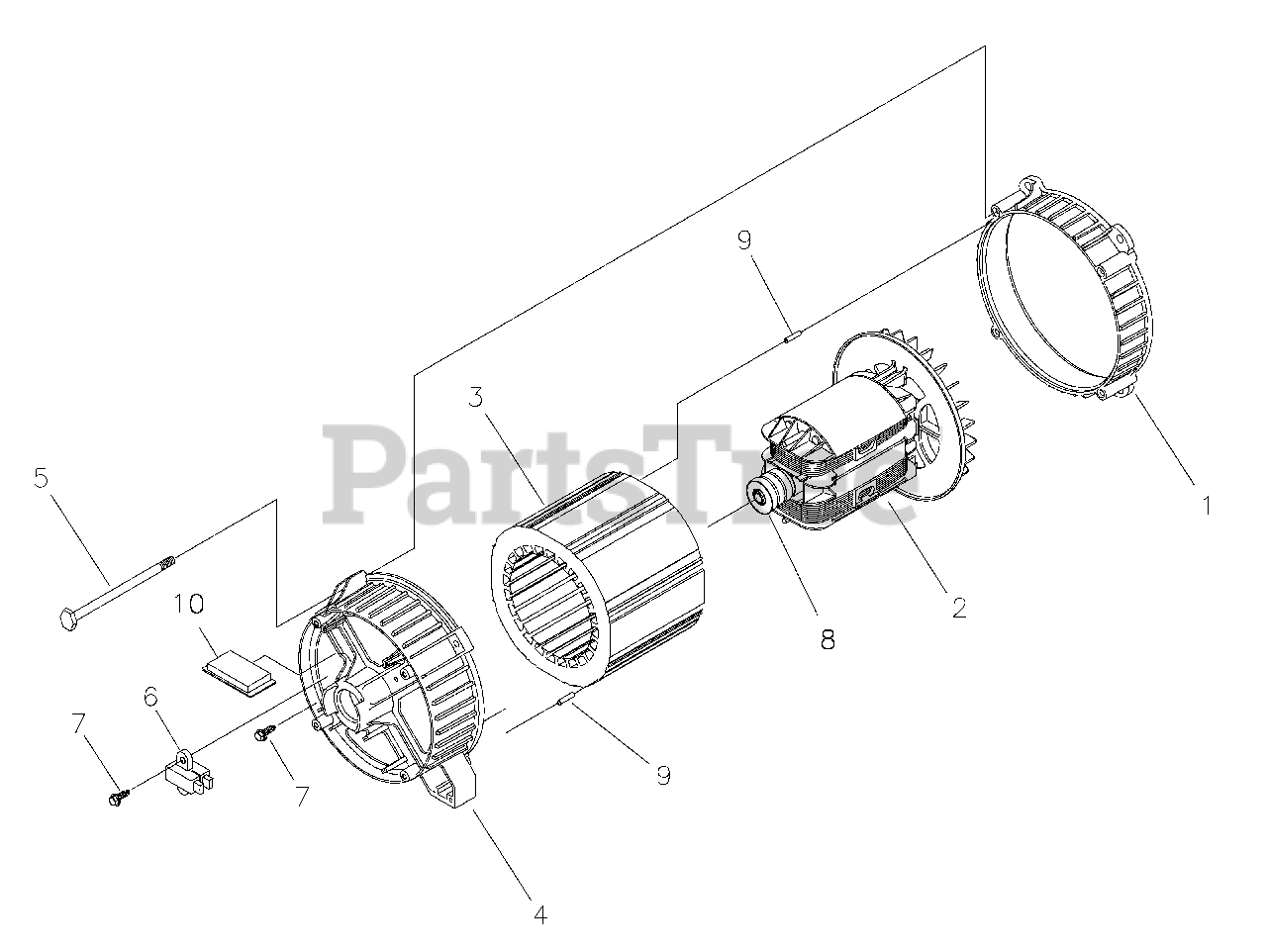

030345-0 - John Deere 6,200 Watt Portable Generator Alternator Parts Diagram

6,200 Watt Portable Generator

Alternator Parts Diagram

  • Title
1

Briggs & Stratton 186059GS

ADAPTER, Mounting, Alternator
(Superseded to 209599GS)

$35.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 191876GS

ASSEMBLY, Rotor

Note: (Includes Item 8)

$315.99

$

Usually ships in 2-12 days

0

$670.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 186060GS

RBC
(Superseded to 193336GS)

Note: (With O-Ring, P/N 189197GS)

$39.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 86308HGS

HHCS, M6 - 1.0 x 140 Sems

$5.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 66386GS

ASSEMBLY, Holder, Brush

$23.99

$

In Stock, only 4 left!

0

7

Briggs & Stratton 66849GS

TAPTITE, M5 - 0.8 x 16

$4.99

$

In Stock, only 1 left!

0

$34.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 81917GS

PIN, Roll, 4mm x 10

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 205858GS

REGULATOR, Voltage, AVR

$107.99

$

In Stock, only 2 left!

0
