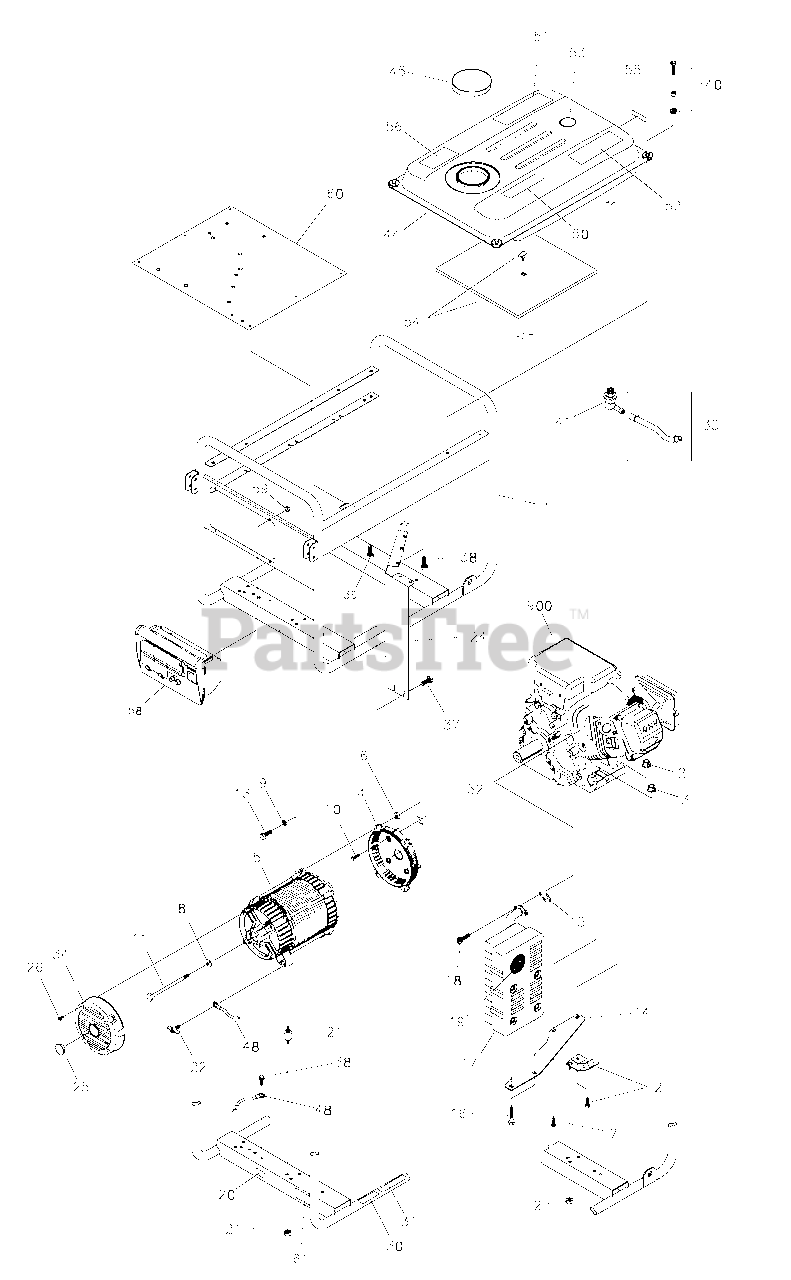

030345-0 - John Deere 6,200 Watt Portable Generator Main Unit Parts Diagram

6,200 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton W203242GS

KIT, Cradle

Note: (Includes #’S 20, 31 & 61)

$565.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT, Vibration Mount, 45°

$14.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

NUT, Flange Serrated, M8

$3.49

$

In Stock, Qty 18

0

4

Briggs & Stratton 190220GS

ADAPTER, Engine

$46.99

$

Usually ships in 2-12 days

0

5

NSP

ALTERNATOR ASSEMBLY

Note: See Alternator

$

$

Not available

6

-----

Nut, Hex M8 - 1.25

Note: (Purchase locally)

$

$

Not available

7

Briggs & Stratton 195398GS

TPHMS, M8 1.25 x 35

$2.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

-----

WASHER, 5/16 - M8 Lock

Note: (Purchase locally)

$

$

Not available

10

Briggs & Stratton 190274DGS

SBHC, 3/8-16 x 7/8"

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365FGS

HHCS, 5/16 - 24 x 7.44

$18.99

$

Usually ships in 2-12 days

0

13

-----

HHCS, M8 - 1.25 x 25

Note: (Purchase locally)

$

$

Not available

14

Briggs & Stratton 189009GS

BRACKET, Muffler

$25.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$8.49

$

In Stock, only 2 left!

0

16

-----

HHCS, M6 - 1.0 x 12

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

-----

SCREW, 5/16-18 x 3/4

Note: (Purchase locally)

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$3.49

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Vibration Mount

$12.99

$

In Stock, only 2 left!

0

22

Briggs & Stratton 86494GS

SCREW, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 194390GS

ASSEMBLY, Heat Shield

$91.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5 - 0.8 x 10

$3.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 204418GS

DECAL, Warning, Exhaust

$9.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 200310GS

DECAL, Warning, Exhaust

$16.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

COVER, RBC Plastic with Cap

$14.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Hose, Fuel

Note: (Cut to Fit)

$11.99

$

In Stock, Qty 8

0

36

Briggs & Stratton 192376GS

SCREW, Thread Forming, 12-24 x 1/2

$3.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

38

Briggs & Stratton B2153GS

SCREW, Self Driller, 12-14 x 7/8

$4.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 198221GS

KIT, Fuel Tank Hardware

Note: (Includes Qty 4)

$

$

Not available

41

Briggs & Stratton 193272GS

VALVE, Fuel
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 6

0

44

Briggs & Stratton 203600GS

ASSEMBLY, Tank Fuel

Note: (Includes #’s 41, 50, 51, 52, 53, 55 & 56)

$

$

Not available

45

Briggs & Stratton 189135GS

CAP, Tank

$21.99

$

In Stock, only 2 left!

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$

$

Not available

50

Briggs & Stratton 188333GS

DECAL, Instruction Fuel Level

$25.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194984GS

DECAL, Warning, French

$18.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 94480GS

DECAL, Instruction, Start, French

$18.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 192724GS

GAUGE, Fuel

$

$

Not available

54

Briggs & Stratton 194448GS

KIT, Insulation w/Clip

$

$

Not available

55

Briggs & Stratton 197789GS

DECAL, Fuel Shutoff
(Superseded to 197646GS)

$

$

Not available

56

Briggs & Stratton 202997GS

DECAL, Warning, CO

$14.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 201576GS

ASSEMBLY, Control Panel

$295.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 189164GS

PALNUT, 3/16

$3.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 204594GS

HEATSHIELD

$

$

Not available

61

Briggs & Stratton 200311GS

DECAL, Neutral Bonded

$9.49

$

Usually ships in 2-12 days

0

900

-----

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

900

Briggs & Stratton 203278GS

MANUAL, Operator’s, English

Note: Parts Not Illustrated

$

$

Not available

900

Briggs & Stratton 203489GS

MANUAL, Operator’s, Spanish

Note: Parts Not Illustrated

$

$

Not available

900

Briggs & Stratton 203490GS

MANUAL, Operator’s, French

Note: Parts Not Illustrated

$

$

Not available

900

Briggs & Stratton 197474GS

CORDSET, Storm
(Superseded to 206775GS)

Note: Parts Not Illustrated

$

$

Not available

900

Briggs & Stratton 203601GS

KIT, Decal Service

Note: Parts Not Illustrated

$

$

Currently unavailable
