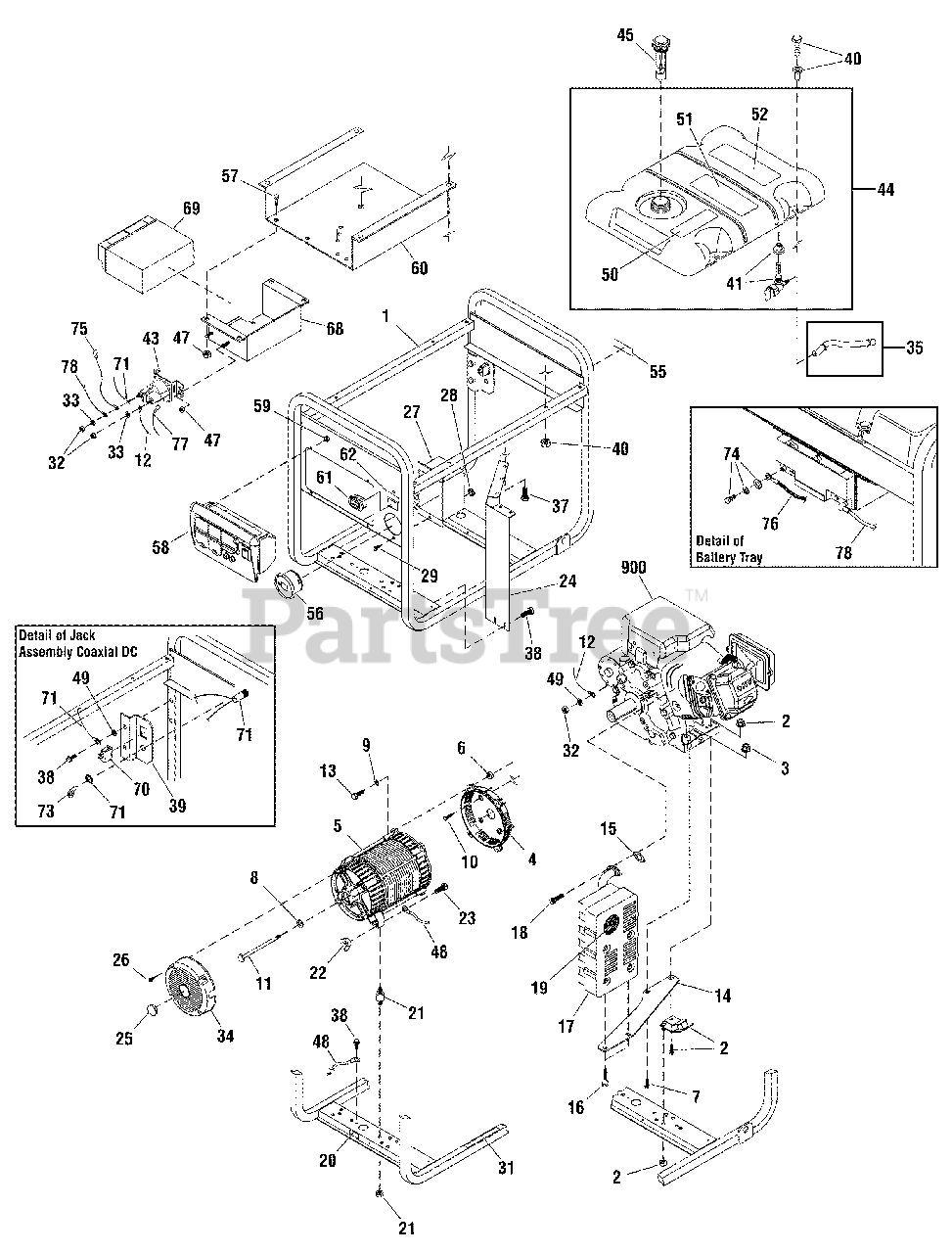

030358-0 - Briggs & Stratton 6,200 Watt Portable Generator Main Unit (204366) Parts Diagram

6,200 Watt Portable Generator

Main Unit (204366) Parts Diagram

  • Title

1

Briggs & Stratton 204103BRGS

CRADLE

Note: (Includes Ref. Nos. 20, 31, 55 & 62)

$

$

Not available

2

Briggs & Stratton 194150GS

MOUNT, Vibration

$13.99

$

In Stock, Qty 7

0

3

Briggs & Stratton 67989GS

NUT, Flange Serrated, M8

$3.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 190220GS

ADAPTER, Engine

$43.99

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR

$

$

Not available

6

-----

* NUT, Hex, M8 - 1.25

$

$

Not available

7

Briggs & Stratton 195398GS

SCREW

$2.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

-----

* WASHER, Lock, 5/16 - M8

$

$

Not available

10

Briggs & Stratton 190274BGS

SCREW

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365FGS

BOLT

$17.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 189302JGS

WIRE

$22.99

$

Usually ships in 2-12 days

0

13

-----

* CAPSCREW, Hex Head, M8 - 1.25 x 25

$

$

Not available

14

Briggs & Stratton 189009GS

BRACKET, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 6

0

16

-----

* CAPSCREW, Hex Head. M6 - 1.0 x 12

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

Briggs & Stratton 204885GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 83083GS

ARRESTOR, Spark

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Vibration Mount

$11.99

$

In Stock, Qty 17

0

22

Briggs & Stratton 87680GS

SCREW

$7.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 194390GS

HEATSHIELD

$86.99

$

Usually ships in 2-12 days

0

23

-----

* CAPSCREW, Hex Head, M6-1 x 40

$

$

Not available

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 204342GS

BOX, Cover

$27.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 62265GS

GROMMET

$8.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 204626GS

TPHMS, M6 - 1 x 12, Taptite

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 200310GS

DECAL, Warning, Exhaust

$15.99

$

Usually ships in 2-12 days

0

32

-----

* NUT, 1/4-20

$

$

Not available

33

-----

* WASHER, Lock, 1/4

$

$

Not available

34

Briggs & Stratton 195422GS

COVER, RBC Plastic with Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Hose, Fuel

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 7

0

37

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

38

Briggs & Stratton B2153GS

SCREW, Self Driller, 12-14 x 7/8

$4.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 196441GS

BRACKET, Switch/Jack
(Superseded to 196492GS)

$83.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 195477GS

KIT, Hardware, Fuel Tank (Includes Qty of 4)

$9.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

VALVE, Fuel

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 691656

SOLENOID

$31.99

$

In Stock, Qty 12

0

44

Briggs & Stratton 197303GS

FUEL TANK ASSEMBLY

Note: (Includes Ref. Nos. 41, 50, 51 & 52)

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

47

Briggs & Stratton 77395GS

NUT, Flange Lock, M6

$3.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 14353621GS

WIRE
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

49

-----

* WASHER, Shakeproof, Ext

$

$

Not available

50

Briggs & Stratton 188333GS

DECAL, Instruction Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194984GS

DECAL, Warning

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 94480GS

DECAL, Start Instructions

$17.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197789GS

DECAL, Fuel Shutoff
(Superseded to 197646GS)

$14.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 196908GS

LOAD MONITOR

$192.99

$

Usually ships in 2-12 days

0

57

-----

* CAPSCREW, Hex Head, M6 - 1.0 x 12

$

$

Not available

58

Briggs & Stratton 201576GS

CONTROL PANEL

$278.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 189164GS

PALNUT, 3/16

$3.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 208564GS

HEATSHEILD

$133.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 198245GS

METER, Hour Digital
(Superseded to 202602GS)

$97.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 200311GS

DECAL, Neutral Bonded

$8.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 198760GS

TRAY, Battery

$54.99

$

In Stock, only 1 left!

0

69

Briggs & Stratton 193043GS

BATTERY

$137.99

$

In Stock, only 4 left!

0

70

Briggs & Stratton 87799GS

SWITCH, Rocker On/Off

$7.49

$

In Stock, Qty 15

0

71

Briggs & Stratton 199152GS

JACK, Coaxial

$9.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 192351GS

LUG, 1/4, #22/18

$2.49

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 315546GS

KIT, Hardware, Battery

$8.99

$

In Stock, only 1 left!

0

75

Briggs & Stratton 198871GGS

WIRE, #13 Red

$5.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 185939KGS

WIRE, #55 Black

$

$

Not available

77

Briggs & Stratton 198871HGS

WIRE, #13B Red

$6.49

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 189302MGS

WIRE, #13 Red

$22.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 204330GS

MANUAL, Operator's

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

Note: (Not Illustrated)

$38.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 204635GS

KIT, Decals

Note: (Not Illustrated)

$47.99

$

Usually ships in 2-12 days

0
