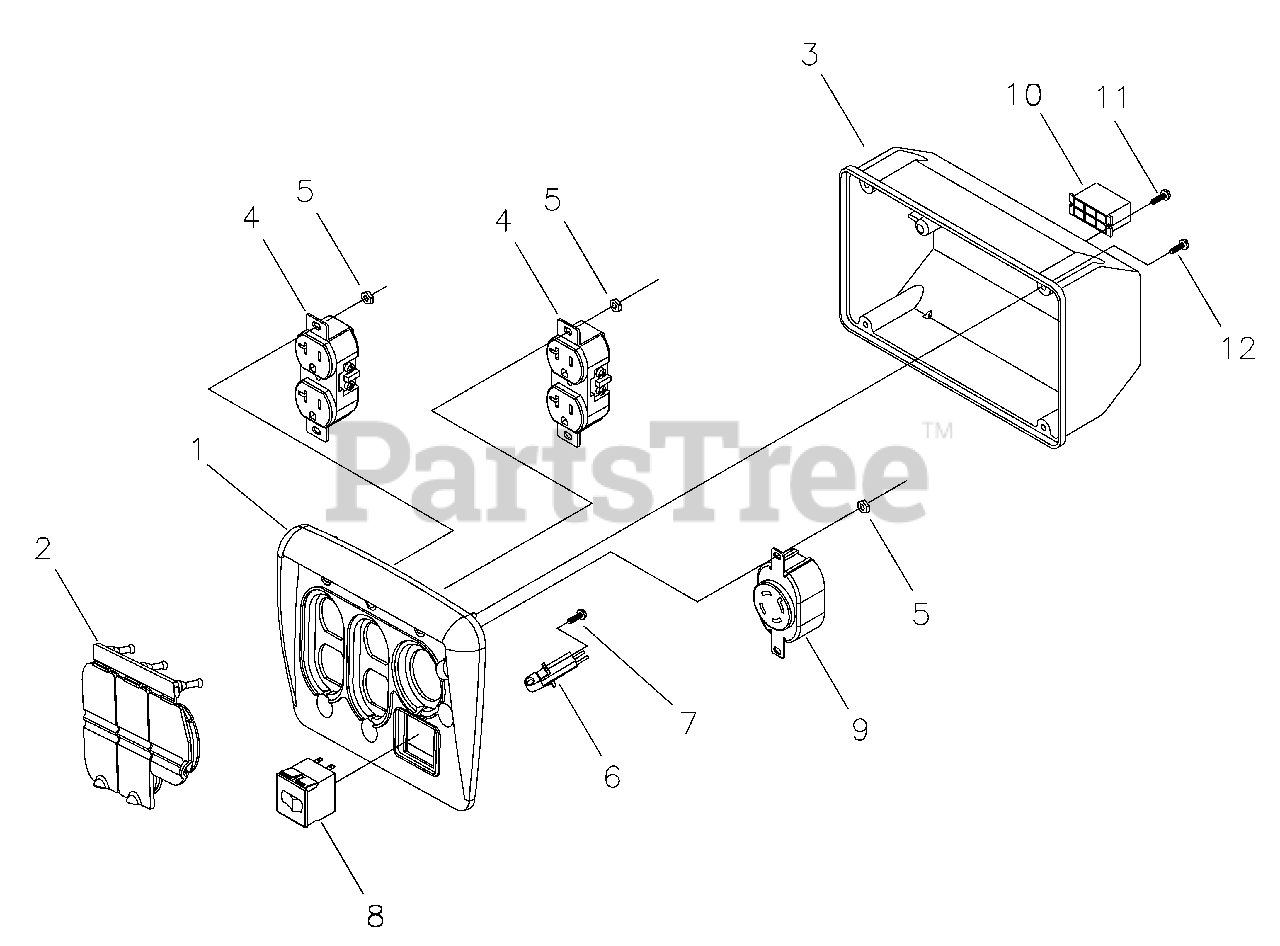

030369-0 - Husqvarna 5,500 Watt Portable Generator Control Panel Parts Diagram

5,500 Watt Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 197471GS

Panel, Control

$

$

Not available

2

Briggs & Stratton 197472GS

Cover, Outlet Flip

$22.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 188890GS

Cover, Back Panel

$

$

Not available

4

Briggs & Stratton 197731GS

Outlet, 120V, 15/20A Duplex

$19.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 189165GS

Nut, 5/32 Pal

$3.49

$

In Stock, only 2 left!

0

6

Briggs & Stratton 197729GS

Module, Led
(Superseded to 202951GS)

$

$

Not available

7

Briggs & Stratton 197958GS

Screw, 3 x 6, Tapping

$3.99

$

In Stock, only 3 left!

0

8

Briggs & Stratton 191479DGS

Breaker, Circuit, 20A
(Superseded to 202030GS)

$111.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 191481GS

Boot, Breaker Circuit

Note: (not shown)

$11.99

$

In Stock, only 4 left!

0

9

Briggs & Stratton 43437GS

Outlet, 120/240V, 30A

$

$

Not available

10

Briggs & Stratton 22694GS

Housing, Receptacle, 6 Pin

$6.49

$

In Stock, only 2 left!

0

11

Briggs & Stratton 82308GS

Screw, 3 x 18, Tapping

$3.49

$

In Stock, only 2 left!

0

12

Briggs & Stratton 192241GS

Screw, 3.5 x 14, Tapping

$3.99

$

Usually ships in 2-12 days

0
