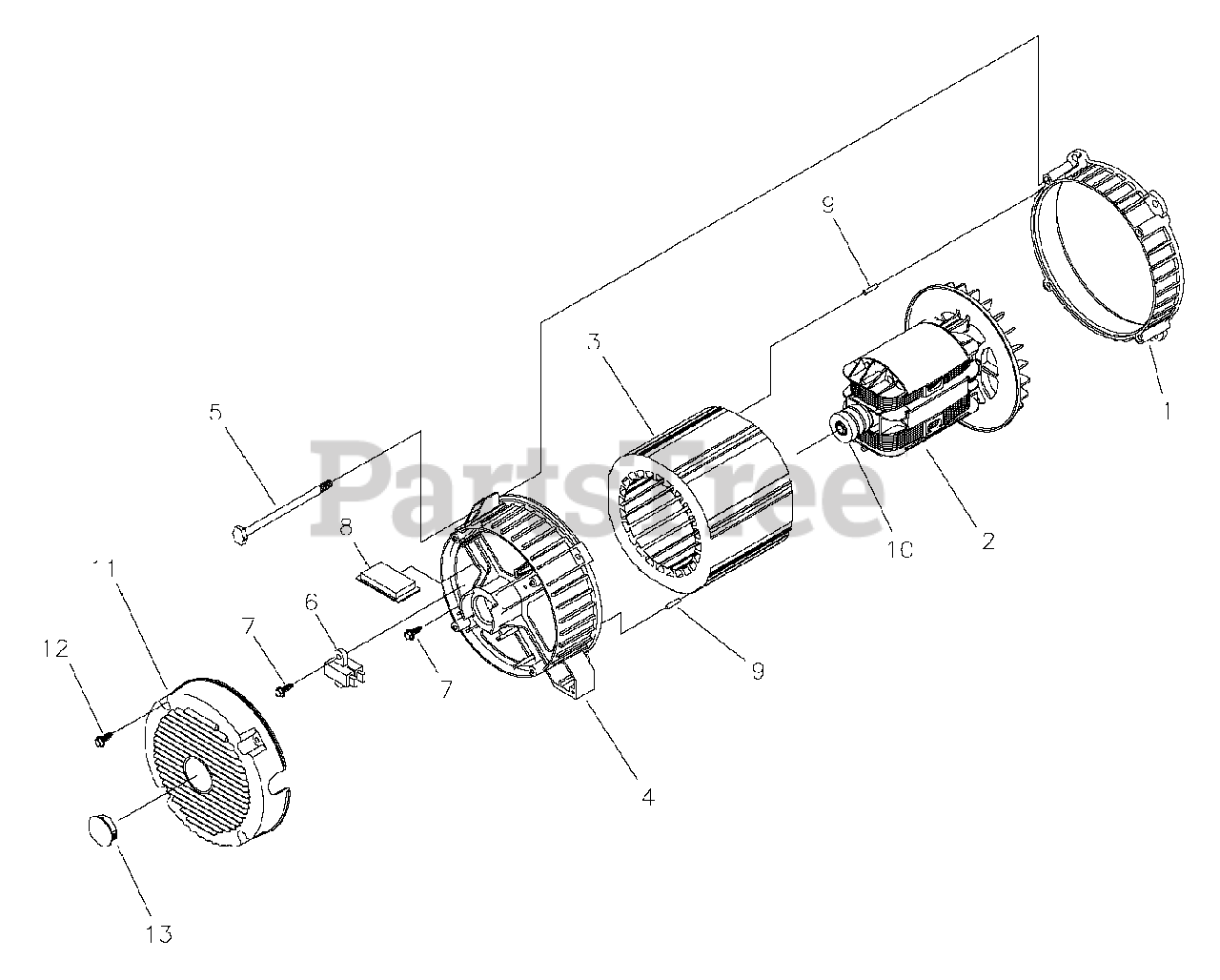

030379-0 - Milwaukee 4,300 Watt Portable Generator Alternator Parts Diagram

4,300 Watt Portable Generator

Alternator Parts Diagram

  • Title

1

Briggs & Stratton 186059GS

ADAPTER, Mounting, Alternator
(Superseded to 209599GS)

$37.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 193034GS

ASSEMBLY, Rotor

Note: (Includes Ref. No. 10)

$276.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 206174GS

STATOR

$291.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 186060GS

RBC
(Superseded to 193336GS)

Note: (Includes O-Ring 189197GS)

$41.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 86308GS

CAPSCREW, Hex Head, M6 x 1 x 115 SEMS

$

$

Not available

6

Briggs & Stratton 66386GS

ASSEMBLY, Brush Holder

$24.99

$

In Stock, Qty 12

0

7

Briggs & Stratton 66849GS

SCREW, Taptite, M5-.8X16
(Superseded to 49815GS)

$3.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 189769GS

REGULATOR
(Superseded to 205858GS)

$122.99

$

In Stock, Qty 6

0

9

Briggs & Stratton 81917GS

PIN, Roll, 4mm x 10

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 65791GS

BEARING

$36.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 195422GS

COVER, RBC, Plastic w/Cap

$14.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 74908GS

SCREW, Taptite, M5-.8x10

$3.49

$

Usually ships in 2-12 days

0
