030381-0 - Briggs & Stratton 6,500 Watt Portable Generator Alternator Parts Diagram

6,500 Watt Portable Generator

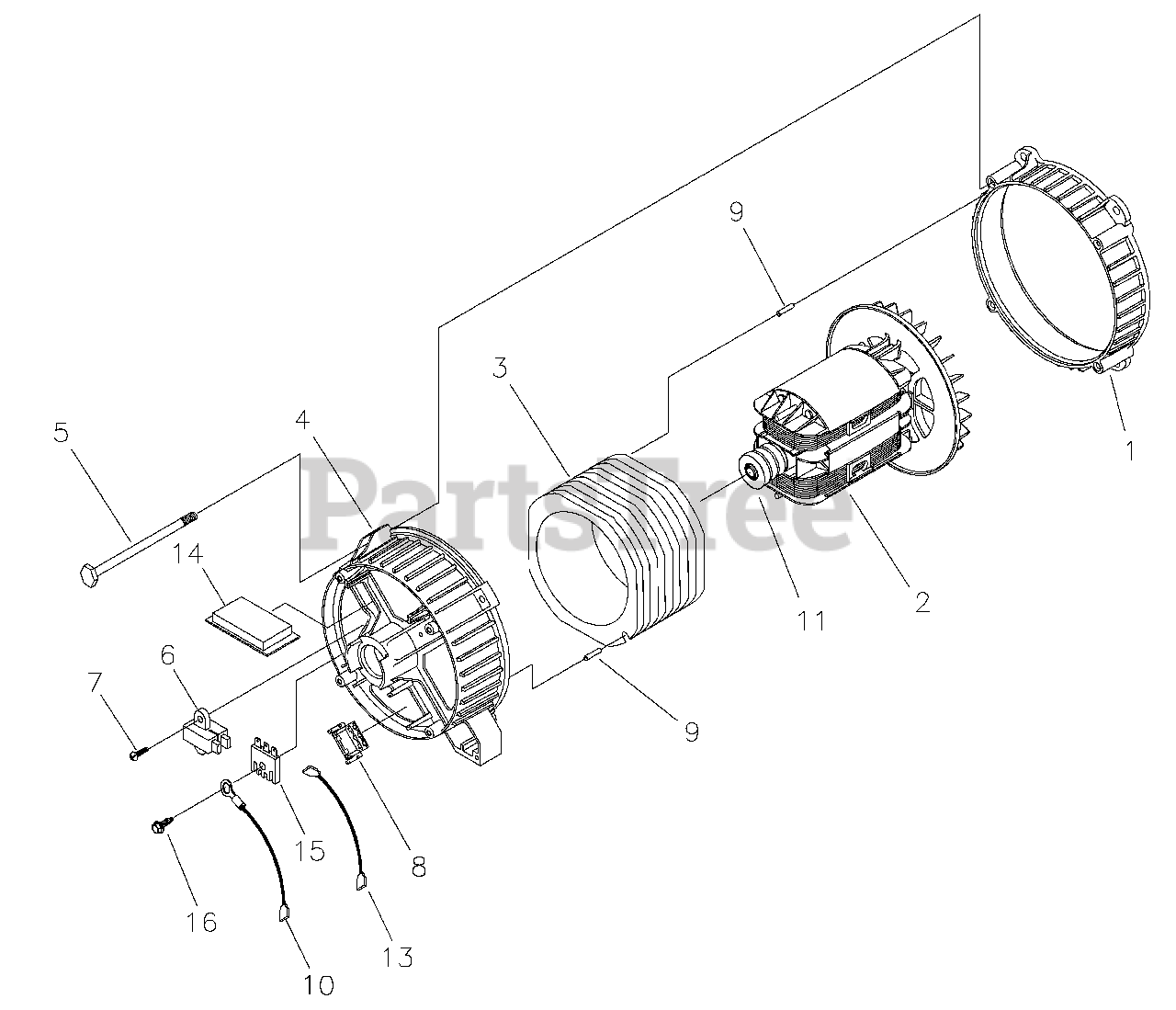

Alternator Parts Diagram

  • Title

1

Briggs & Stratton 186059GS

Adapter, Mounting, Alternator
(Superseded to 209599GS)

$37.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 192919GS

Rotor

$

$

Not available

3

Briggs & Stratton 192920AGS

Stator

$643.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 193336GS

RBC

Note: With O-Ring, p/n 189197GS

$41.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 86308HGS

HHCS, M6 - 1.0 x 140 SEMS

$5.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 66386GS

Assembly, Holder, Brush

$24.99

$

In Stock, Qty 11

0

7

Briggs & Stratton 66849GS

Taptite, M5 - 0.8 x 16
(Superseded to 49815GS)

$3.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 22694GS

Receptacle, 6 Pin

$6.49

$

In Stock, only 2 left!

0

9

Briggs & Stratton 81917GS

Pin, Roll, 4mm x 10

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 193428AGS

Wire-A, Ground

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 65791GS

Bearing

$36.99

$

Usually ships in 2-12 days

0

13

192403xGS

Wire, Ground

$

$

Not available

14

Briggs & Stratton 189769GS

Regulator, Voltage, Avr
(Superseded to 205858GS)

$122.99

$

In Stock, Qty 6

0

15

Briggs & Stratton 65795GS

Rectifier

$

$

Not available

16

Briggs & Stratton 66849AGS

Taptite, M5 - 0.8 x 20

$4.99

$

Usually ships in 2-12 days

0
