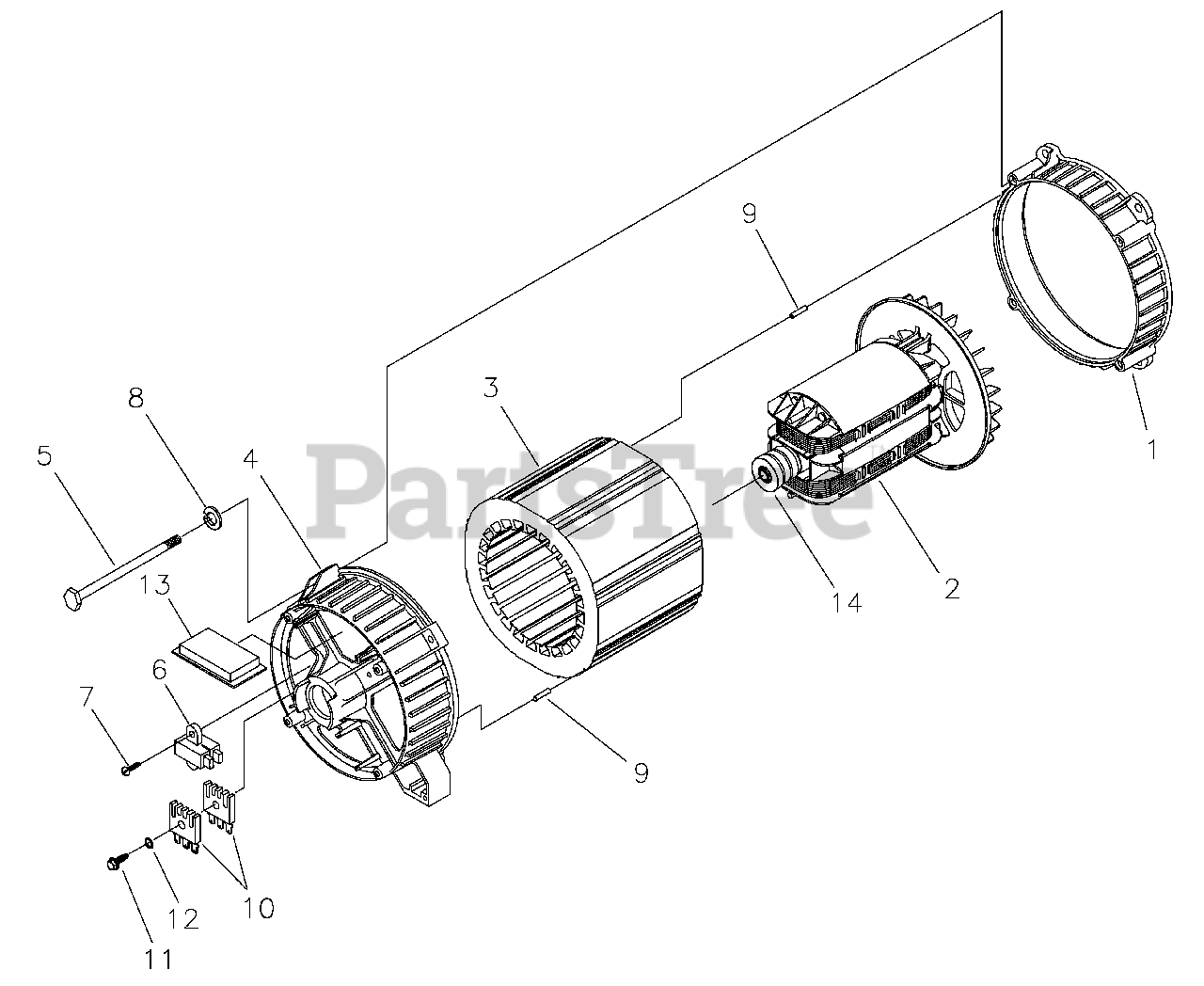

030382-0 - Briggs & Stratton 8,000 Watt Portable Generator Alternator Parts Diagram

8,000 Watt Portable Generator

Alternator Parts Diagram

  • Title

1

Briggs & Stratton 186059GS

Adapter, Mounting, Alternator
(Superseded to 209599GS)

$35.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 192938GS

Rotor

$434.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 192937AGS

Stator

$633.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 186060GS

RBC, With O-Ring
(Superseded to 193336GS)

Note: p/n 189197GS

$39.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 66449LGS

HHCS, M6 - 1 x 190 SEMS

$30.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 66386GS

Assy, Holder, Rectifier/Brush

$23.99

$

In Stock, only 4 left!

0

7

Briggs & Stratton 66849GS

Taptite, M5 - 0.8 x 16

$4.99

$

In Stock, only 1 left!

0

8

Lockwasher, 1/4 - M6

Note: (Purchase locally)

$

$

Not available

9

Briggs & Stratton 81917GS

Pin, Roll, 4mm x 10

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 65795GS

Rectifier, Battery Charge

$

$

Not available

11

Briggs & Stratton 66849CGS

Taptite, M5 - 0.8 x 30

$4.99

$

Usually ships in 2-12 days

0

12

Washer, Shakeproof, Ext. #10

Note: (Purchase locally)

$

$

Not available

13

Briggs & Stratton 189769GS

Regulator, Voltage-AVR
(Superseded to 205858GS)

$107.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 65791GS

Bearing

$34.99

$

Usually ships in 2-12 days

0
