030382-0 - Briggs & Stratton 8,000 Watt Portable Generator Main Unit Parts Diagram

8,000 Watt Portable Generator

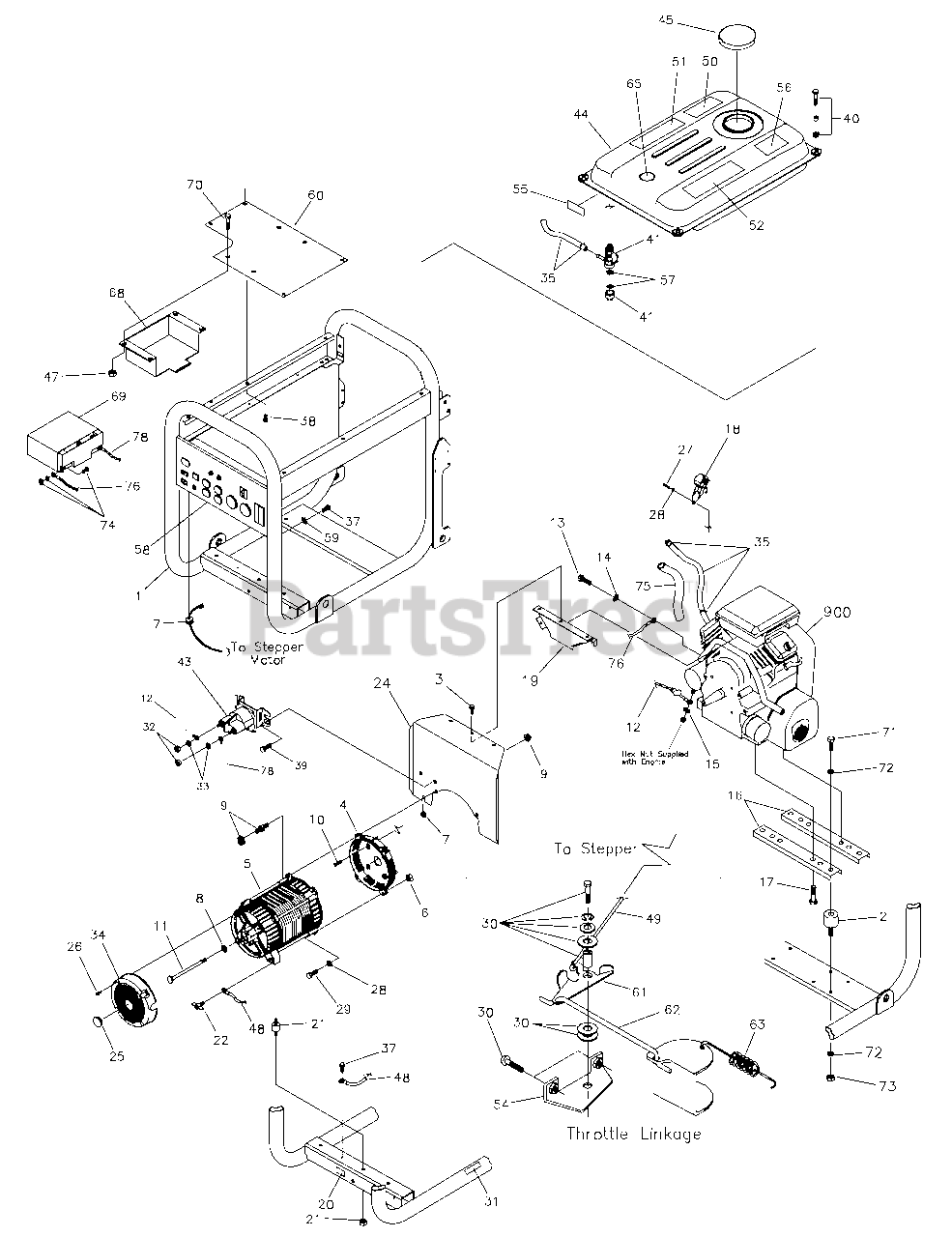

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B204637GS

Cradle

Note: Includes Items 20 & 31

$

$

Not available

2

Briggs & Stratton 38353GS

Mount, Vibration

$39.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 56893GS

Crimptite, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

4

Briggs & Stratton 190220GS

Adapter, Engine

$43.99

$

Usually ships in 2-12 days

0

5

NSP

Assy., Alternator

Note: Alternator

$

$

Not available

6

Nut, Hex, M8 - 1.25

Note: (Purchase locally)

$

$

Not available

7

Briggs & Stratton 62265GS

Grommet

$8.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

Washer, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 194208GS

Kit, Alt To Heat Shield Hardware

$20.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274BGS

SBHCS, 3/8-16 x 1"

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 25254GS

HHCS 5/16-24 x 9-7/8

$12.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 189302BGS

Wire, #16, Red

$17.99

$

Usually ships in 2-12 days

0

13

HHCS, M8 - 1.25 x 16

Note: (Purchase locally)

$

$

Not available

14

Washer, Shakeproof, Ext. 5/16

Note: (Purchase locally)

$

$

Not available

15

Washer, Shakeproof, Ext. M6

Note: (Purchase locally)

$

$

Not available

16

Briggs & Stratton B77304GS

Support, Engine

$27.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 75246GS

Taptite, 3/8 - 16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 195404GS

Assy, Stepper Motor

$148.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton J93074GS

Support, Heatshield

$136.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B4986GS

Decal, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194155GS

Kit, Vibration Mount

$17.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 86494GS

Screw, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 194950GS

Assy., Heat Shield

$76.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

Cap

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

Taptite, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

HHCS, M8 - 1.25 x 20

Note: (Purchase locally)

$

$

Not available

28

Washer, 5/16 M8 Lock

Note: (Purchase locally)

$

$

Not available

29

HHCS, M8-1.25 x 25

Note: (Purchase locally)

$

$

Not available

30

Briggs & Stratton 194543GS

Kit, Throttle Linkage Hardware

$25.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 200310GS

Decal, Exhaust Warning

$15.99

$

Usually ships in 2-12 days

0

32

Nut, 1/4 - 20

Note: (Purchase locally)

$

$

Not available

33

Washer, 1/4 Lock

Note: (Purchase locally)

$

$

Not available

34

Briggs & Stratton 195422GS

Cover, RBC Plastic w/Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

Kit, Hose, Fuel

$10.99

$

In Stock, Qty 7

0

37

Briggs & Stratton B2153GS

Screw, Self Driller, 12-14 x 7/8

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 192376GS

Screw, 12 - 24 x 1/2 Thread Forming

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton B4300GS

HHS, Trilobular, 1/4 - 20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

40

Briggs & Stratton 198221GS

Kit, Fuel Tank Hardware

Note: Includes Qty 4

$8.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 193272GS

Valve, Fuel
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 5

0

43

Briggs & Stratton B4769GS

Contactor, Starter

$29.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 196035GS

Assy., Tank Fuel

Note: Includes Items 41, 50, 51, 52, 55, 56 & 65

$

$

Not available

45

Briggs & Stratton 189135GS

Cap, Tank Fuel

$20.99

$

In Stock, only 1 left!

0

47

Briggs & Stratton 77395GS

Locknut, M6

$3.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

Wire, Ground

$2.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 95920GS

Linkage, Stepper Motor To Bell Crank

$16.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

Decal, Instruction, Fuel

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194984GS

Decal, Warning

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 94480GS

Decal, Operating Instructions

$17.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 95349GS

Plate, Adjust

$7.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197797GS

Decal, Fuel Shutoff

$8.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 202997GS

Decal, Warning, CO

$13.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 189759GS

Kit, Fuel Valve Repair
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 5

0

58

Briggs & Stratton 202526GS

Assy. Control Panel

$727.99

$

Usually ships in 2-12 days

0

59

Washer, Ext #10, Shakeproof

Note: (Purchase locally)

$

$

Not available

60

Briggs & Stratton J193512GS

Support, Tray Battery

$81.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 95348GS

Bracket, Bell Crank

$7.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 95921GS

Linkage, Bell Crank To Throttle

$12.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 96717GS

Spring

$58.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 192724GS

Gauge, Gas

$

$

Not available

68

Briggs & Stratton J195680GS

Tray, Battery

$71.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 193043GS

Battery

$137.99

$

In Stock, only 4 left!

0

70

HHCS, M6 -1.0 x 12

Note: (Purchase locally)

$

$

Not available

71

HHCS, 3/8 - 16 x 3/4

Note: (Purchase locally)

$

$

Not available

72

Washer, 3/8, Lock

Note: (Purchase locally)

$

$

Not available

73

Nut, 3/8 - 16

Note: (Purchase locally)

$

$

Not available

74

Briggs & Stratton 193347GS

Kit, Hardware Battery

$2.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 280623

Tubing, Fuel Line
(Superseded to 280866)

$

$

Not available

76

Briggs & Stratton 185939GGS

Wire, #55 Black

$12.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 189302EGS

Wire, #13 Red

$18.99

$

Usually ships in 2-12 days

0

900

Engine

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 204729GS

Manual, Operator's

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061GS

Bottle, Oil

Note: Qty 1 Parts Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton BB3061BGS

Bottle, Oil
(Superseded to 100005)

Note: Qty 1 Parts Not Illustrated

$8.99

$

In Stock, Qty 8

0

Briggs & Stratton B4177GS

Charger, Battery
(Superseded to 705927)

Note: Parts Not Illustrated

$38.99

$

In Stock, only 1 left!

0

Briggs & Stratton 202179GS

Decal, Family, CA EVP

Note: Parts Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 205487GS

Kit, Decal Service

Note: Parts Not Illustrated

$84.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43438GS

Plug, 120/240V, 30A 4P

Note: Parts Not Illustrated

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100523GS

Plug, 125V, 30A 3P

Note: Parts Not Illustrated

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 65787GS

Cable, Battery Charge

Note: Parts Not Illustrated

$24.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 690661

Screw, Tapping Hex

Note: Parts Not Illustrated

$3.49

$

In Stock, Qty 20+

0

Briggs & Stratton 392390

Arrester, Spark
(Superseded to 794945)

Note: Parts Not Illustrated

$53.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 692099

Assy., Muffler

Note: Parts Not Illustrated

$184.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 691513

Bracket, Muffler

Note: Parts Not Illustrated

$55.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 692056

Screw

Note: Parts Not Illustrated

$5.99

$

In Stock, Qty 6

0

Briggs & Stratton 690898

Clamp, Muffler

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 692539

Screw
(Superseded to 841233)

Note: Parts Not Illustrated

$3.49

$

In Stock, Qty 6

0
