030383-0 - Briggs & Stratton 10,000 Watt Portable Generator Alternator Parts Diagram

10,000 Watt Portable Generator

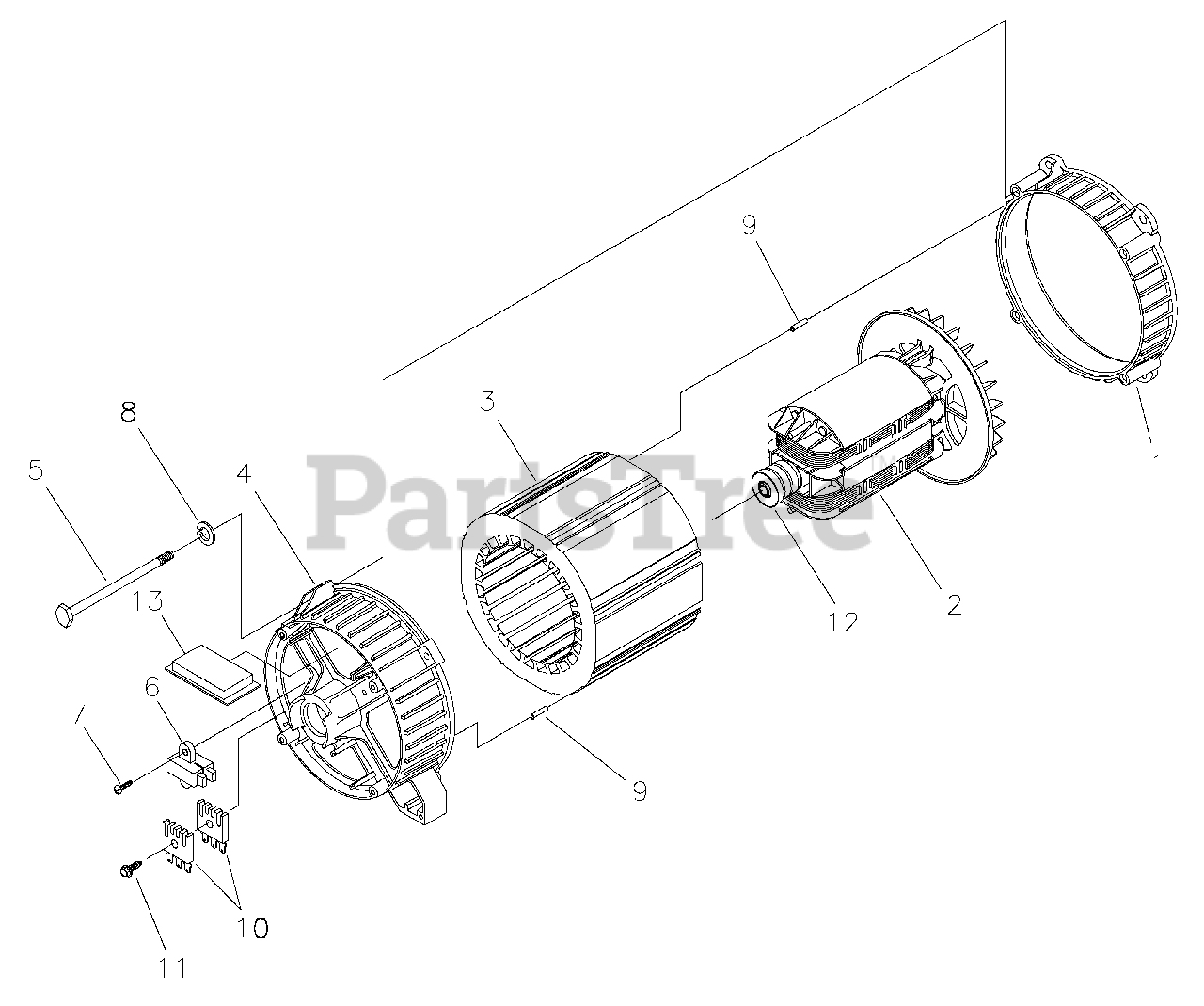

Alternator Parts Diagram

  • Title

1

Briggs & Stratton 186059GS

Adapter, Mounting, Alternator
(Superseded to 209599GS)

$37.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 191952GS

Assy., Rotor

Note: Includes #12

$601.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 205062GS

Stator

$926.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 186060GS

RBC, With O-Ring
(Superseded to 193336GS)

Note: p/n 189197GS

$41.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 66449KGS

Bolt, Stator, M6 - 1 x 200
(Superseded to 66449LGS)

$32.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 66386GS

Assy., Holder, Rectifier/Brush

$24.99

$

In Stock, Qty 9

0

7

Briggs & Stratton 66849GS

Taptite, M5 - 0.8 x 16
(Superseded to 49815GS)

$3.99

$

In Stock, only 1 left!

0

8

Lockwasher, 1/4 - M6

Note: (Purchase locally)

$

$

Not available

9

Briggs & Stratton 81917GS

Pin, Roll, 4mm x 10

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 65795GS

Rectifier, Battery Charge

$

$

Not available

11

Briggs & Stratton 66849CGS

Taptite, M5 - 0.8 x 30

$4.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 65791GS

Bearing

$36.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 189769GS

Regulator, Voltage-AVR
(Superseded to 205858GS)

$122.99

$

In Stock, Qty 6

0
