030384-0 - Briggs & Stratton 10,000 Watt Portable Generator Control Panel Parts Diagram

10,000 Watt Portable Generator

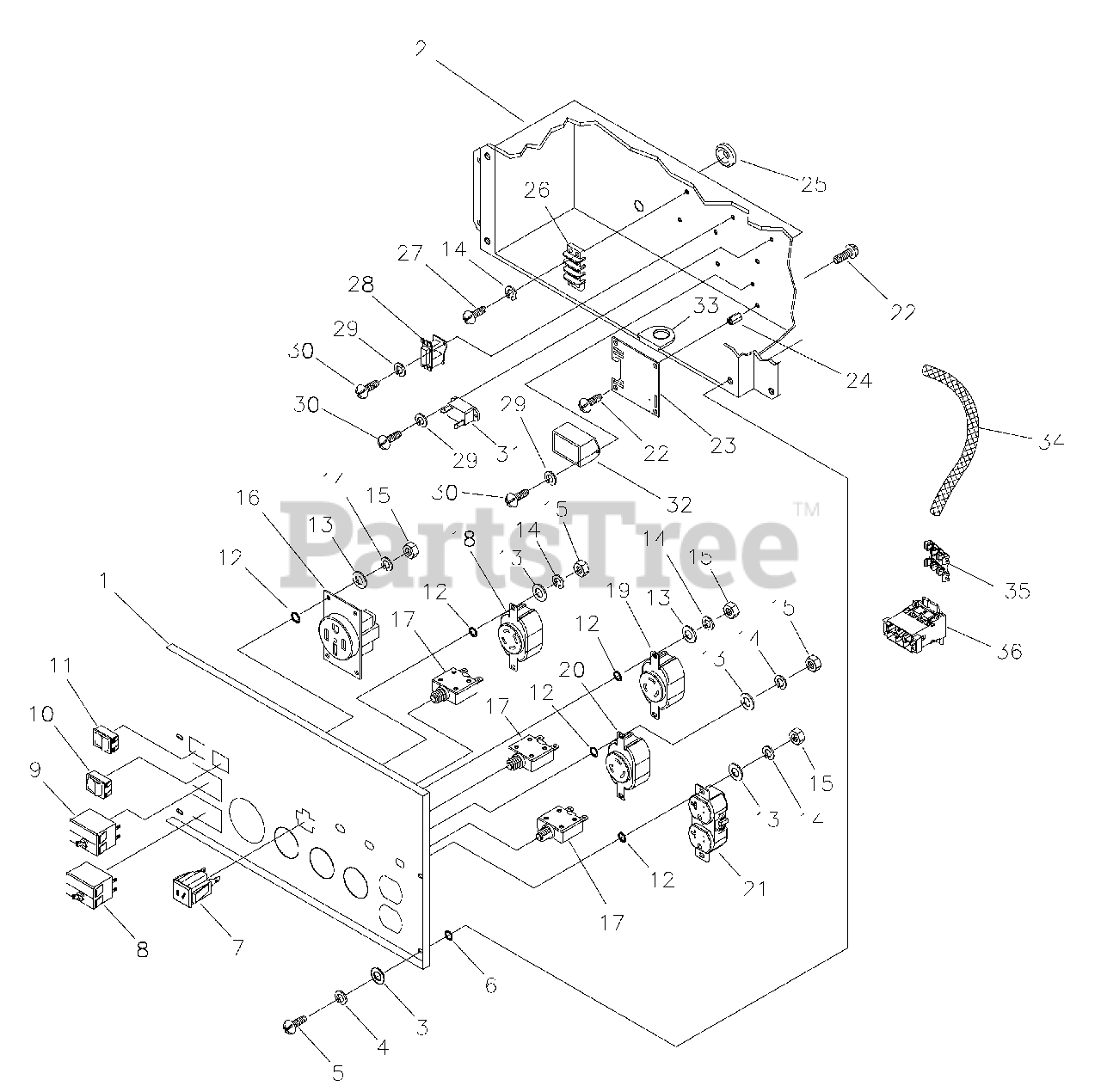

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton M199022GS

Panel, Control

$217.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 201864GS

Box, Control Panel

$219.99

$

Usually ships in 2-12 days

0

3

-----

Washer, Flat, #10 - M5

Note: (Purchase locally)

$

$

Not available

4

-----

Lockwasher, M5

Note: (Purchase locally)

$

$

Not available

5

-----

PPHMS, M5 - 0.8 x 12

Note: (Purchase locally)

$

$

Not available

6

-----

Washer, M6 - 1/4, Int. Shakeproof

Note: (Purchase locally)

$

$

Not available

7

Briggs & Stratton 90418GS

Outlet, 12V DC Snap

$

$

Not available

8

Briggs & Stratton 191480BGS

Breaker, Circuit, 40A, 2P

$106.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 191480AGS

Breaker, Circuit, 30A, 2P

$106.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 82538GS

Switch, Rocker

$6.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 78653GS

Switch, Eng, Run-Stop

$4.99

$

Usually ships in 2-12 days

0

12

-----

Washer, Shakeproof, Int. #8

Note: (Purchase locally)

$

$

Not available

13

-----

Washer, Flat, M4

Note: (Purchase locally)

$

$

Not available

14

-----

Lockwasher, M4

Note: (Purchase locally)

$

$

Not available

15

-----

Nut, M4 - 0.7

Note: (Purchase locally)

$

$

Not available

16

Briggs & Stratton B4262GS

Recepticle

$142.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 75207GS

Breaker, Circuit, 20A W/Hardware
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 43437GS

Outlet, 120/240V, 30A

$17.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 68868GS

Outlet, 120V, 30A
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 74190GS

Outlet, 120V, 20A

$38.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 68759GS

Outlet, 120V, 20A, Duplex

$24.99

$

In Stock, only 2 left!

0

22

-----

PHTS, 6 - 32 x 3/8"

Note: (Purchase locally)

$

$

Not available

23

Briggs & Stratton 195406GS

Assy, PCB, Control, Stepper Motor

$198.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 64525GS

Standoff, Hex, 3/4"

$5.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 62265GS

Grommet

$8.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 92953GS

Terminal, Block

$17.99

$

Usually ships in 2-12 days

0

27

-----

PPHMS, M4 - 0.7 x 20

Note: (Purchase locally)

$

$

Not available

28

Briggs & Stratton 84028GS

Transformer, Idle Control

$47.99

$

In Stock, only 2 left!

0

29

-----

Lockwasher, M3

Note: (Purchase locally)

$

$

Not available

30

-----

PHMS, M3 - 0.5 x 10

Note: (Purchase locally)

$

$

Not available

31

Briggs & Stratton 87962GS

Breaker, Circuit, 10A, 12V

$29.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 77314GS

Thermal, Relay

$76.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 188632GS

Boot, Rubber Wire Outlet

$3.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 194273GS

Tubing

$

$

Currently unavailable

35

Briggs & Stratton 199532GS

Strip, Dual Row, TPA, 6 Circuit

$5.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 199528GS

Plug, Dual Row, Housing, 6 Circuit

$25.99

$

Usually ships in 2-12 days

0
