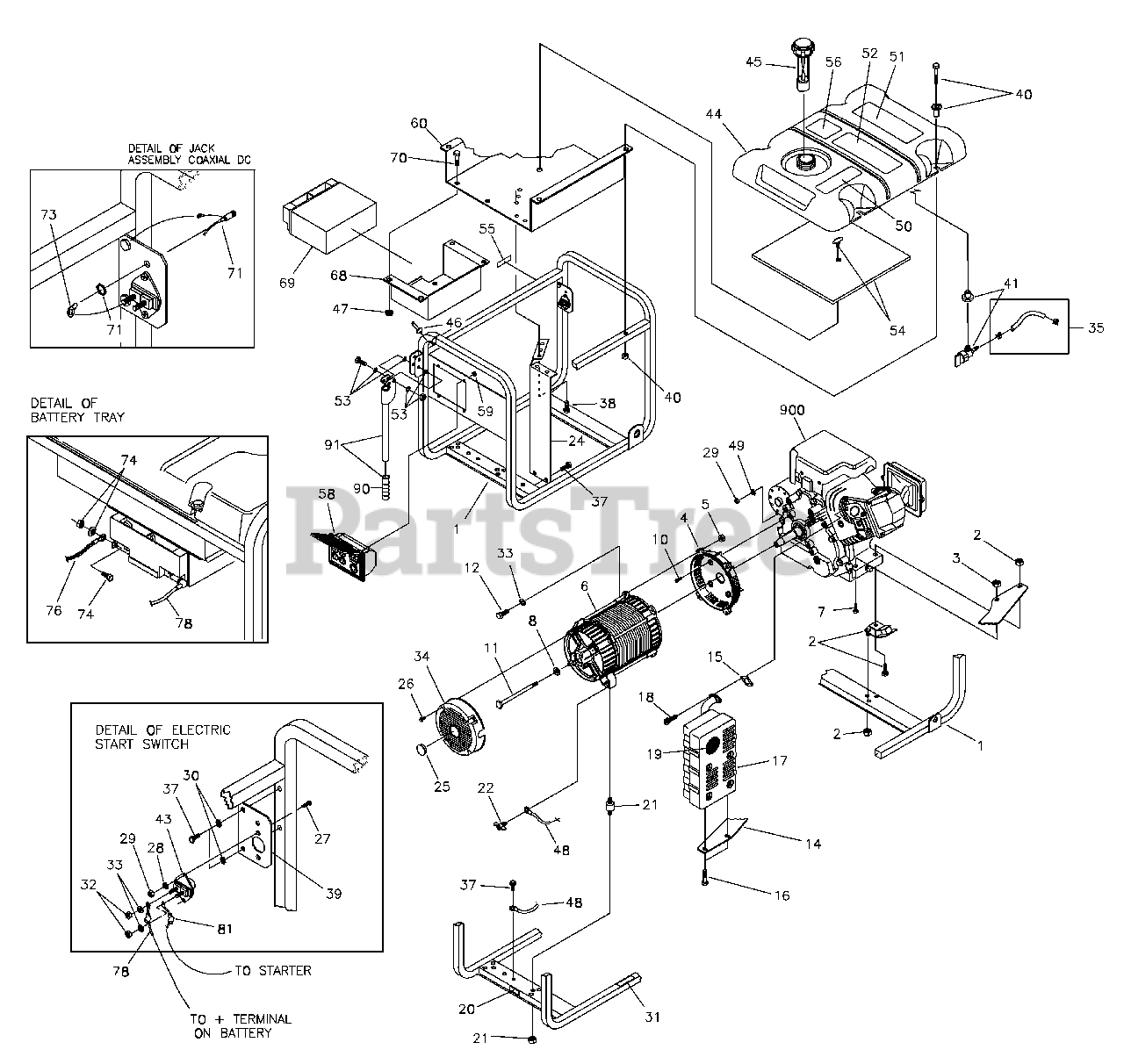

030386-0 - Briggs & Stratton 6,200 Watt Portable Generator Main Unit Parts Diagram

6,200 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton M197464GS

Kit, Cradle
(Superseded to 197464BNGS)

Note: Includes Items 20, 31 & 55

$533.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

Kit, Vibration Mount, 45°

$13.99

$

In Stock, Qty 7

0

3

Nut, M8 Flange Serrated

Note: (Purchase locally)

$

$

Not available

4

Briggs & Stratton 190220GS

Housing, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

Nut, Hex, M8-1.25

Note: (Purchase locally)

$

$

Not available

6

NSP 194080

Assy, Alternator

$

$

Not available

7

TPHMS, M8-1.25 x 35

Note: (Purchase locally)

$

$

Not available

8

Briggs & Stratton 96796GS

Washer, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274DGS

SBHCS, 3/8-16 x 7/8"

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365FGS

HHCS, 5/16-24 x 7.44

$17.99

$

Usually ships in 2-12 days

0

12

HHCS, M8 - 1.25 x 25

Note: (Purchase locally)

$

$

Not available

14

Briggs & Stratton 189009GS

Bracket, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

Gasket, Exhaust

$7.99

$

In Stock, Qty 6

0

16

HHCS, M6-1.0 x 12

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton 189008GS

Muffler

$

$

Not available

18

Briggs & Stratton 204885GS

SHCS, M8 - 1.25 x 20

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 83083GS

Screen, Spark Arrest

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton B4986GS

Decal, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

Kit, Vibration, Mount

$11.99

$

In Stock, Qty 17

0

22

Briggs & Stratton 86494GS

Screw, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 194390GS

Shield, Heat

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

Cap

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

Taptite, M5-0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

HHCS, 1/4 - 20 x 3/4

Note: (Purchase locally)

$

$

Not available

28

Washer, 1/4, Lock

Note: (Purchase locally)

$

$

Not available

29

Nut, 1/4 - 20

Note: (Purchase locally)

$

$

Not available

30

Washer, Shakeproof, Ext. #10

Note: (Purchase locally)

$

$

Not available

31

Briggs & Stratton 196830GS

Decal, Hot Muffler

$15.99

$

Usually ships in 2-12 days

0

32

Nut, 5/16 - 24

Note: (Purchase locally)

$

$

Not available

33

Washer, 5/16 - M8 Lock

Note: (Purchase locally)

$

$

Not available

34

Briggs & Stratton 195422GS

Cover, RBC, Plastic w/Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

Kit, Fuel Hose

Note: Cut to fit

$10.99

$

In Stock, Qty 7

0

37

Briggs & Stratton B2153GS

Screw, 12-14 x 7/8 Self Drill

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 56893GS

Screw, 10-24 x 1/2 Crimptite

$3.49

$

In Stock, only 1 left!

0

39

Briggs & Stratton 188987GS

Bracket, Switch

$10.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 195477GS

Kit, Hardware Tank Fuel

Note: Includes Qty 4

$9.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

Kit, Valve, Tank

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 77282GS

Switch, Starter

$76.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 194217GS

Assy., Tank, Fuel

Note: Includes Items 41, 50, 51, 52 & 56

$

$

Not available

45

Briggs & Stratton B4363GS

Cap, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton B4135GS

Pin, With Lanyard

$6.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 77395GS

Nut, M6 Flange Lock

$3.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

Wire, Ground

$2.49

$

Usually ships in 2-12 days

0

49

Washer, M6 Shakeproof

Note: (Purchase locally)

$

$

Not available

50

Briggs & Stratton 188333GS

Decal, Instruction, Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

Decal, Danger

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 189235GS

Decal, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 194034GS

Kit, Handle Fold-down Hardware

$10.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 194448GS

Kit, Insulation with Clip

$31.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

Decal, Fuel Shut-Off

$9.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 202997GS

Decal, Warning CO

$13.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 191757GS

Assy, Control Panel

$

$

Not available

59

Nut, Palnut, 3/16"

Note: (Purchase locally)

$

$

Not available

60

Briggs & Stratton 194389GS

Shield, Heat
(Superseded to 208564GS)

$133.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 195680GS

Tray, Battery

$62.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 193043GS

Battery, 12V

$137.99

$

In Stock, only 4 left!

0

70

HHCS, M6 - 1.0 x 12

Note: (Purchase locally)

$

$

Not available

71

Briggs & Stratton 192531GS

Asm, Jack, DC

$10.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 58359GS

Lug, 5/16 #22/18 I-S

$3.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 193347GS

Kit, Battery Hardware

$2.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 185939KGS

Wire Asm, #55

$

$

Not available

78

Briggs & Stratton 189302CGS

Wire Asm, #13

$

$

Not available

81

Briggs & Stratton 189302GGS

Wire Asm, #16

$18.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 198669GS

Grip, Handle

$8.99

$

Usually ships in 2-12 days

0

91

Briggs & Stratton B193200GS

Assy, Handle/Grip

$39.99

$

In Stock, Qty 6

0

900

Engine

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton MS3430

Manual, Engine, B&S

Note: Parts Not Illustrated

$

$

Not available

Briggs & Stratton 197523GS

Manual, Operator's

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061GS

Bottle, Oil

Note: Parts Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton 43438GS

Plug, 250V, 30A

Note: Parts Not Illustrated

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 202180GS

Decal, Family, CA EVP

Note: Parts Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

Briggs & Stratton B4177GS

Charger, Battery
(Superseded to 705927)

Note: Parts Not Illustrated

$38.99

$

In Stock, only 1 left!

0

Briggs & Stratton 197787GS

Kit, Decals Service

Note: Parts Not Illustrated

$47.99

$

Usually ships in 2-12 days

0
