030424-0 - Briggs & Stratton 5,500 Watt Portable Generator Main Unit (206495) Parts Diagram

5,500 Watt Portable Generator

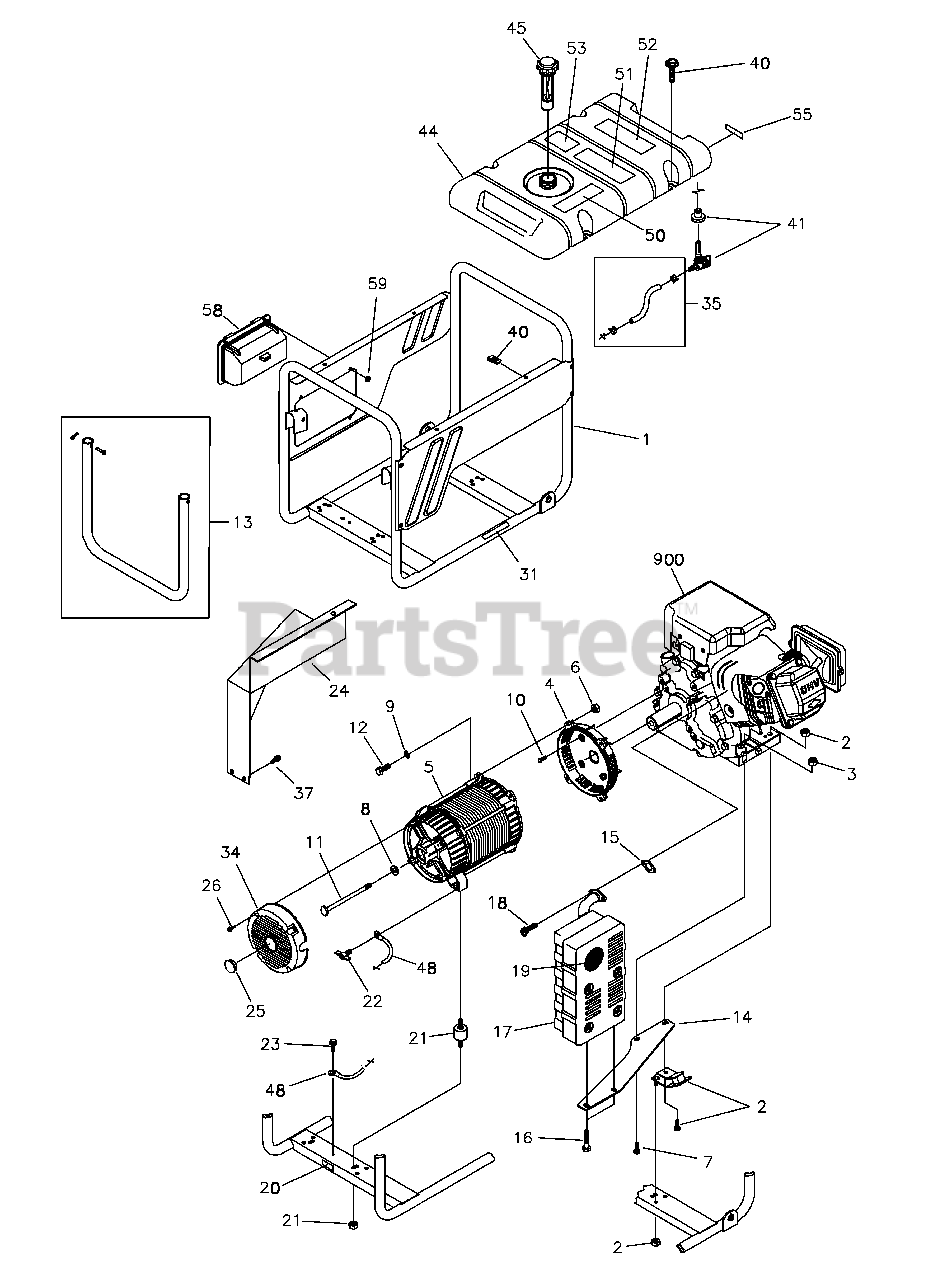

Main Unit (206495) Parts Diagram

  • Title

1

Briggs & Stratton 206767GS

KIT, Cradle

Note: (Includes #20 & 31)

$285.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT, Vibration, Mount, 45°

$13.99

$

In Stock, Qty 7

0

3

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR

$

$

Not available

6

-----

* NUT, Hex M8 - 1.25

$

$

Not available

7

Briggs & Stratton 195398GS

TPHMS, M8 - 1.25 x 35

$2.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

-----

* WASHER, Lock 5/16 - M8

$

$

Not available

10

-----

* SBHCS, 3/8-16 x 1.0

$

$

Not available

11

Briggs & Stratton 187365FGS

HHCS, 5/16-24 x 7.44

$17.99

$

Usually ships in 2-12 days

0

12

-----

* HHCS, M8 - 1.25 x 25

$

$

Not available

13

Briggs & Stratton 198165GS

KIT, Handle

$67.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 189009GS

BRACKET, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 5

0

16

-----

* HHCS, M6 - 1 x 12 w/LW

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

-----

* SCREW, 5/16 - 18 x 7/8"

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Vibration Mount

$11.99

$

In Stock, Qty 13

0

22

Briggs & Stratton 86494GS

SCREW, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton B2153GS

SCREW, 12 - 14 x 7/8, Self Drill

$4.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 197424GS

SHIELD, Heat

$121.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

SCREW, M5-0.8 x 10, Taptite

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

DECAL, Exhaust Warning

$15.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

COVER, RBC with Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Hose (cut to fit)

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 6

0

37

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 199433GS

KIT-FUEL TANK HARDWARE, w/U-Clips

$11.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 199284GS

U-CLIPS

Note: (Optional Accessory)

$4.49

$

In Stock, only 1 left!

0

41

Briggs & Stratton 192980GS

KIT, Valve, Fuel Tank

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 193668GS

ASSY., Tank, Fuel, 5 Gallon Service

Note: (Includes #’s 41, 50, 51, 52, 53 & 55)

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Gas Fill

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 202997GS

DECAL, Danger

$13.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

Decal, Shut-Off, Fuel

$9.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 201575GS

Assy, Control Panel

$

$

Not available

59

-----

* Nut, Palnut, 3/16"

$

$

Not available

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 206494GS

Manual, Operator’s

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206766GS

Kit, Decals, Service

Note: (Not Illustrated)

$24.99

$

Usually ships in 2-12 days

0
