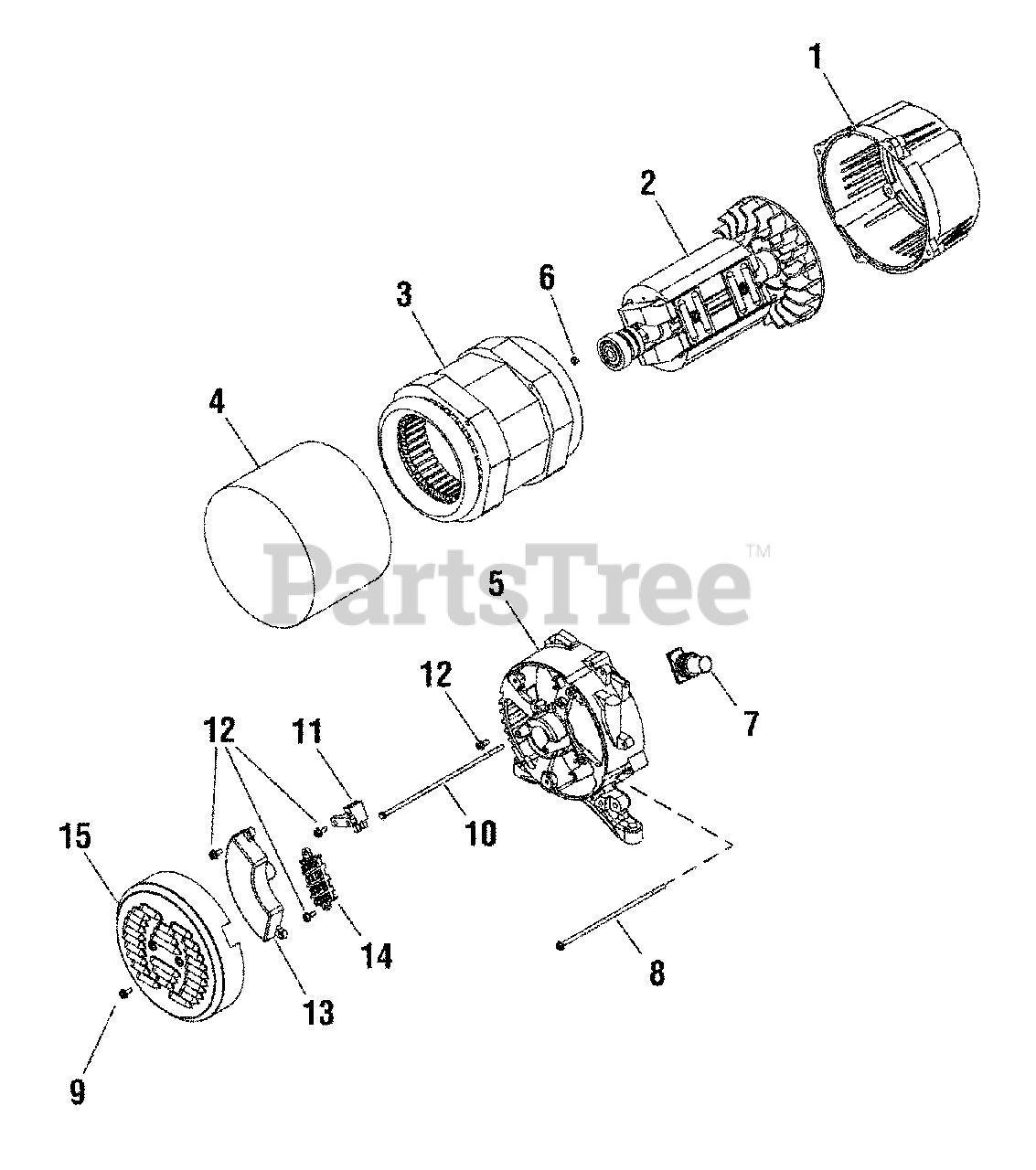

030431-2 - Troy-Bilt 5,500 Watt Portable Generator Alternator (207962) Parts Diagram

5,500 Watt Portable Generator

Alternator (207962) Parts Diagram

  • Title

1

Briggs & Stratton 207822GS

ADAPTER, Engine

$94.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 207832GS

ROTOR ASSEMBLY, Senci

$378.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 207834GS

STATOR

$484.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 207836GS

BAND, Stator

$24.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 207838GS

SUPPORT, Bearing

$106.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 207878GS

NUT, M5

$7.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 207879GS

BOOT, Rubber

$6.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 207828GS

BOLT, M6 - 6 x 190

$12.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 207824GS

BOLT, M5 - 6 x 12

$4.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 207877GS

BOLT, M5 x 224

$6.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 207827GS

BRUSH, Carbon

$

$

Not available

12

Briggs & Stratton 207825GS

BOLT, M5 x 16

$4.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 207840GS

AVR

$

$

Not available

14

Briggs & Stratton 207839GS

BLOCK, Junction

$15.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 207823GS

COVER

$27.99

$

In Stock, only 1 left!

0
