030432-0 - Troy-Bilt 6,200 Watt Portable Generator Main Unit (208033) Parts Diagram

6,200 Watt Portable Generator

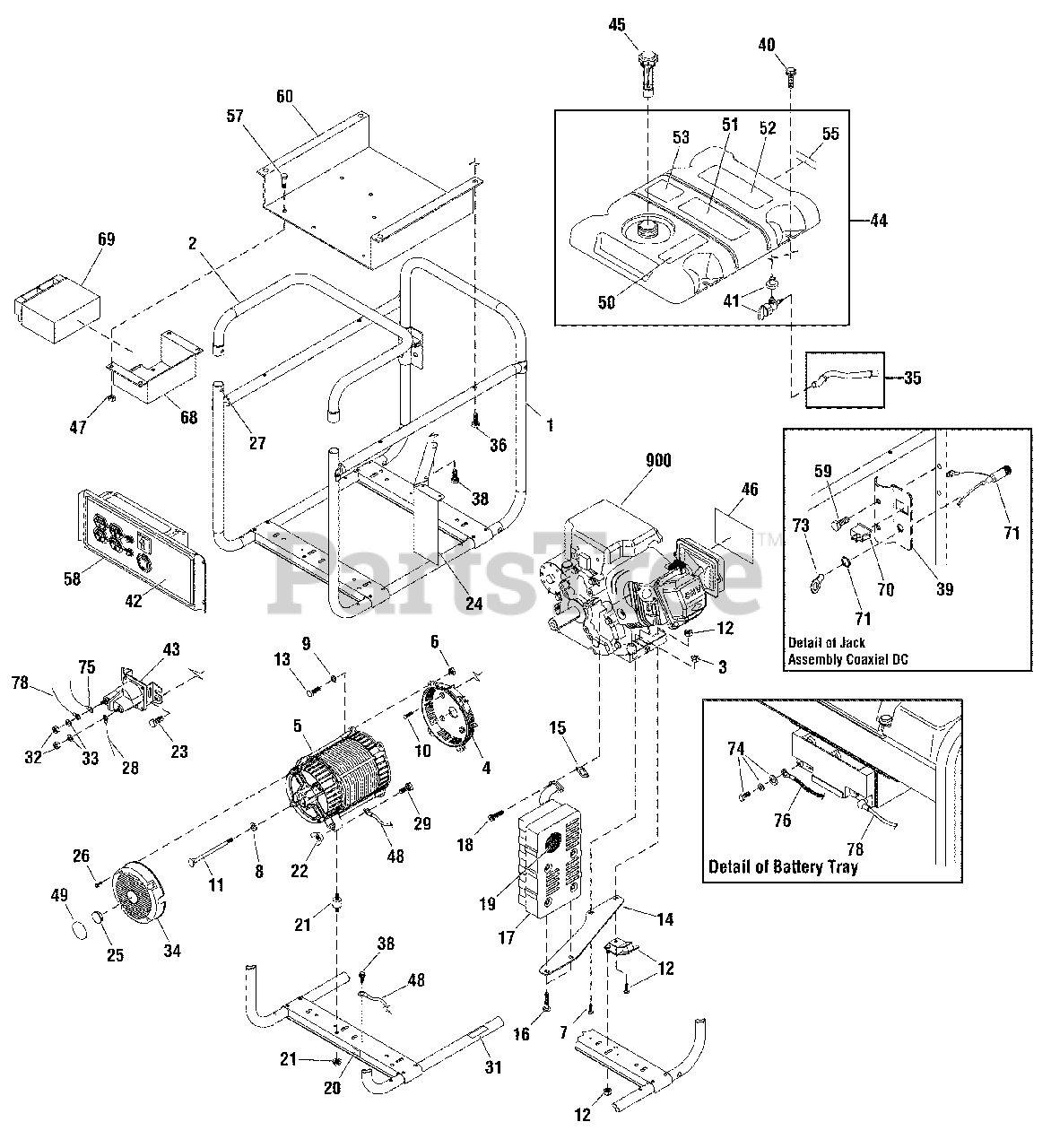

Main Unit (208033) Parts Diagram

  • Title

1

Briggs & Stratton 209713GS

CRADLE

Note: (Includes Ref. Nos. 20, 31 & 58)

$533.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 207528BVGS

HANDLE

$106.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 190220GS

ADAPTER, Engine

$43.99

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR

$

$

Not available

6

-----

* NUT, Hex M8 - 1.25

$

$

Not available

7

Briggs & Stratton 195398GS

SCREW

$2.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

-----

* WASHER, Lock, 5/16 - M8

$

$

Not available

10

Briggs & Stratton 190274DGS

SCREW

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365FGS

CAPSCREW, Hex Head, 5/16-24 x 7.44

$17.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 194150GS

KIT, Vibration Mount, 45°

$13.99

$

In Stock, Qty 7

0

13

-----

* CAPSCREW, Hex Head, M8 - 1.25 x 25

$

$

Not available

14

Briggs & Stratton 189009GS

BRACKET, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 6

0

16

-----

* CAPSCREW, Hex Head, M6 - 1.0 x 12

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

-----

* CAPSCREW, Socket Head, 5/16 -18 x 3/4

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Vibration Mount

$11.99

$

In Stock, Qty 17

0

22

Briggs & Stratton 87680GS

SCREW

$7.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

24

Briggs & Stratton 207954GS

HEAT SHIELD

$60.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 207525GS

PIN, Spring, Handle

$6.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 208519GS

WIRE, Red #16

$32.99

$

Usually ships in 2-12 days

0

29

-----

* CAPSCREW, Hex Head, M-1.0 x 40

$

$

Not available

31

Briggs & Stratton 196830GS

DECAL, Warning, Exhaust

$15.99

$

Usually ships in 2-12 days

0

32

-----

* NUT, 1/4-20

$

$

Not available

33

-----

* WASHER, Lock, 1/4

$

$

Not available

34

Briggs & Stratton 195422GS

COVER, RBC Plastic w/Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Hose, Fuel (cut to fit)

$10.99

$

In Stock, Qty 7

0

36

Briggs & Stratton 192376GS

SCREW, Thread Forming, 12-24 x 1/2

$3.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton B2153GS

SCREW, Self Driller, 12-14 x 7/8

$4.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 207722BVGS

BRACKET, Switch

$10.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 199256GS

BOLT, Shoulder, M6 - 1.0 w/washer

$2.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

VALVE, Fuel

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 208450GS

DECAL

$17.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 691656

SOLENOID

$31.99

$

In Stock, Qty 12

0

44

Briggs & Stratton 208934GS

ASSEMBLY, Fuel Tank

Note: (Includes Ref. Nos. 41, 50, 51, 52, 53 & 55)

$198.99

$

Usually ships in 2-12 days

0

46

208451gs

DECAL

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

47

Briggs & Stratton 77395GS

NUT, M6 Flange Lock

$3.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 14353621GS

WIRE, Ground
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 208452GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Instruction Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 189235GS

DECAL, Instruction, Start

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 202997GS

DECAL, Warning, CO

$13.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL, Fuel Shutoff

$9.49

$

Usually ships in 2-12 days

0

57

-----

* CAPSCREW, Hex Head, M6-1 x 12

$

$

Not available

58

Briggs & Stratton 208420GS

CONTROL PANEL

$459.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 208564GS

HEAT SHIELD

$133.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 195680GS

TRAY, Battery

$62.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 193043GS

BATTERY

$137.99

$

In Stock, only 4 left!

0

70

Briggs & Stratton 87799GS

SWITCH, Rocker

$7.49

$

In Stock, Qty 15

0

71

Briggs & Stratton 208511GS

ASSY., Jack Coaxial

$26.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 192351GS

LUG, 1/4, #22/18

$2.49

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 315546GS

KIT, Hardware, Battery Terminal

$8.99

$

In Stock, only 1 left!

0

75

Briggs & Stratton 198871UGS

WIRE

$5.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 208518GS

WIRE

$19.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 189302RGS

WIRE

$26.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 208031GS

MANUAL, Operator’s

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198871VGS

WIRE, 18AWG, #13B

Note: Parts Not Illustrated

$6.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 197159GS

DECAL, Switch Ignition

Note: Parts Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198800GS

DECAL, Float Charge

Note: Parts Not Illustrated

$7.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

Note: Parts Not Illustrated

$38.99

$

In Stock, only 1 left!

0
