030438-0 - Husky 3,750 Watt Portable Generator Main Unit Parts Diagram

3,750 Watt Portable Generator

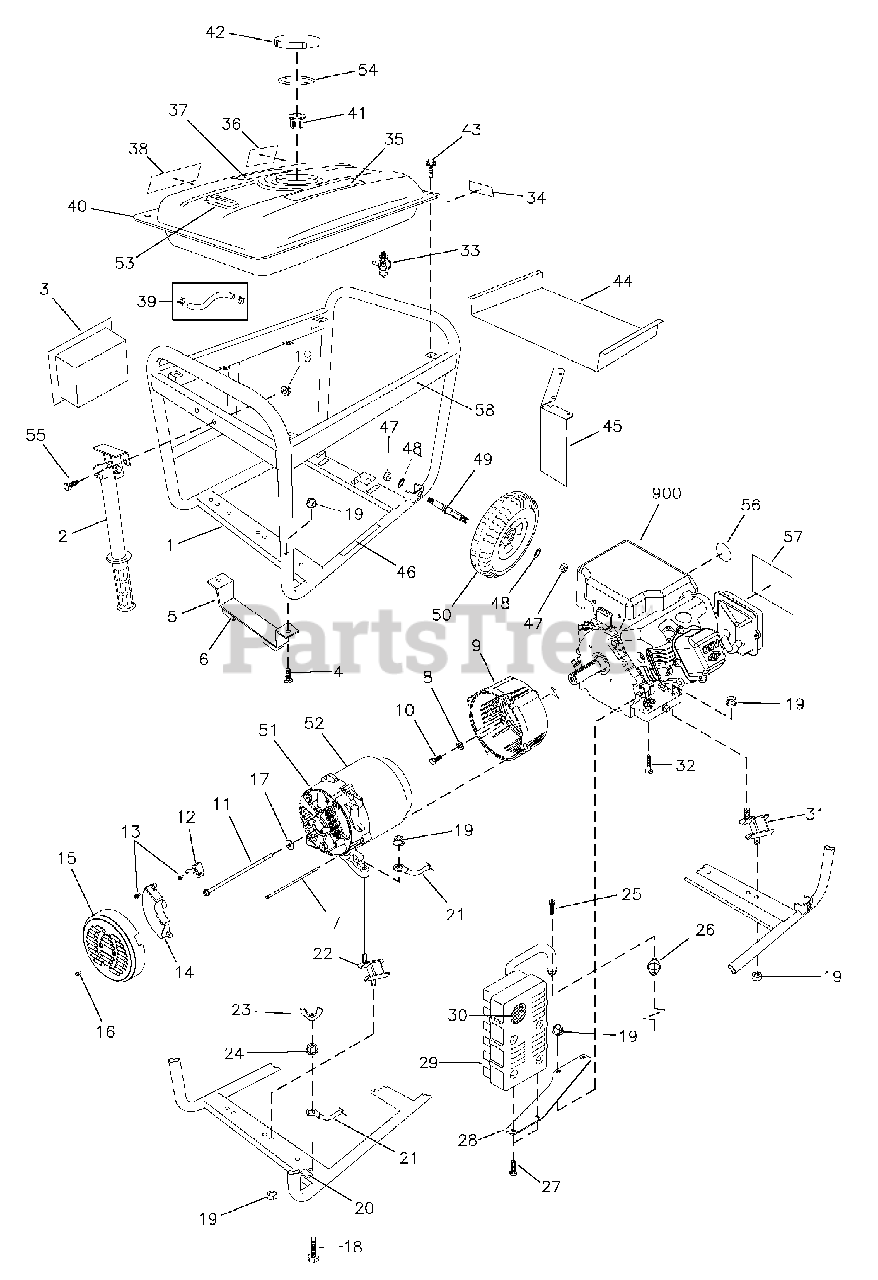

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 209409GS

CRADLE

Note: (Includes Ref. Nos. 20 & 46)

$285.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 209438GS

HANDLE

$29.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 209403GS

PANEL, Control

$285.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 39253GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 209439GS

SUPPORT, Leg

$39.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 209414GS

MOUNT, Vibration

$14.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 209427GS

BOLT

$8.99

$

Usually ships in 2-12 days

0

8

-----

*WASHER, Lock, 3/8

$

$

Not available

9

Briggs & Stratton 209408GS

ADAPTER, Engine

$56.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 209412GS

BOLT

$7.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 209418GS

BOLT

$10.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 209441GS

BRUSH

$11.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 207825GS

BOLT

$4.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 209420GS

AVR

$51.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 209428GS

COVER

$31.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 207824GS

BOLT

$4.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 207826GS

WASHER

$4.49

$

Usually ships in 2-12 days

0

18

-----

*CAPSCREW, Hex Head, M6-1 x 35

$

$

Not available

19

Briggs & Stratton 67989GS

NUT, Flange Serrated, M8

$3.49

$

In Stock, Qty 20+

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 209424GS

WIRE

$5.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 209426GS

MOUNT, Vibration

$14.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 87680GS

NUT, Wing, M6-1

$7.49

$

Usually ships in 2-12 days

0

24

-----

*NUT, Hex, M6-1

$

$

Not available

25

-----

*SCREW, M6 - 1.0 x 20

$

$

Not available

26

Briggs & Stratton 697815

GASKET, Exhaust
(Superseded to 692237)

$5.49

$

In Stock, Qty 20+

0

27

-----

*CAPSCREW, Hex Head, With Lockwasher, M6-1 x 12

$

$

Not available

28

Briggs & Stratton 191785GS

BRACKET, Muffler

$16.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 188301GS

MUFFLER

$152.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, Qty 8

0

31

Briggs & Stratton 209425GS

MOUNT, Vibration
(Superseded to 706149)

$10.99

$

In Stock, Qty 7

0

32

-----

*CAPSCREW, Hex Head, M8 x 32

$

$

Not available

33

Briggs & Stratton 209417GS

VALVE, Fuel

$8.99

$

In Stock, Qty 20+

0

34

Briggs & Stratton 197797GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 194799GS

DECAL

$11.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 202997GS

DECAL, Warning, CO

$13.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 188333GS

DECAL

$23.99

$

In Stock, only 1 left!

0

38

Briggs & Stratton 189235GS

DECAL

$19.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 791745

KIT, Fuel Hose

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 7

0

40

Briggs & Stratton 209411GS

TANK, Fuel

Note: (Includes Ref. Nos. 34, 35, 36, 37 & 38)

$

$

Not available

41

Briggs & Stratton 209440GS

SCREEN

$6.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 209404GS

CAP, Fuel

$8.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 209421GS

BOLT

$4.49

$

In Stock, only 4 left!

0

44

Briggs & Stratton 209422GS

HEAT SHIELD

$35.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 209415GS

BAFFLE

$26.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 208633GS

DECAL

$17.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 209413GS

NUT

$4.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 209419GS

WASHER

$4.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 209407GS

AXLE

$8.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 209410GS

WHEEL

$68.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 209423GS

CARRIER, Bearing

$149.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 209406GS

ALTERNATOR

$471.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 208124GS

GAUGE, Fuel

$

$

Not available

54

Briggs & Stratton 209939GS

GASKET, Fuel Cap

$

$

Not available

55

Briggs & Stratton 39414GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 200658GS

DECAL, Recoil

$8.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 208606GS

DECAL

$

$

Currently unavailable

58

Briggs & Stratton 208607GS

DECAL

$

$

Currently unavailable

900

-----

**ENGINE

$

$

Not available

--

Briggs & Stratton 208552GS

MANUAL, Operator's

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

$8.99

$

In Stock, Qty 8

0
