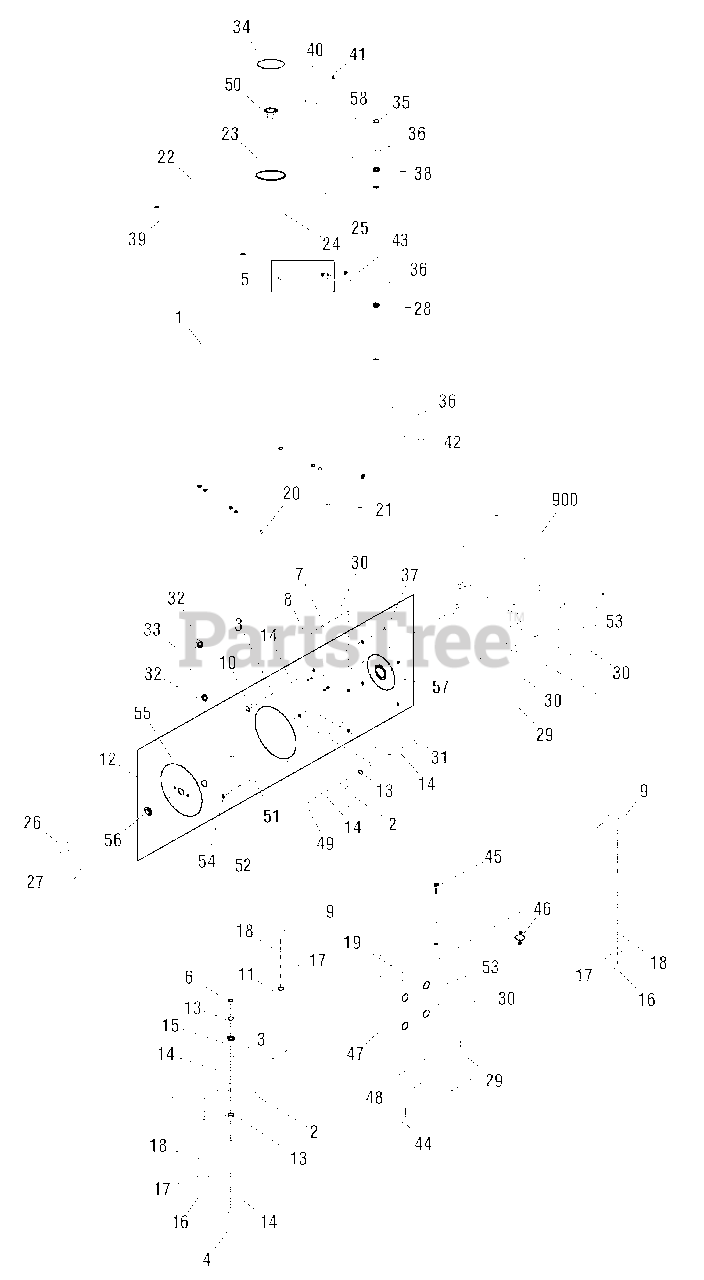

030448-1 - Briggs & Stratton 3,250 Watt Portable Generator Main Unit (205607) Parts Diagram

3,250 Watt Portable Generator

Main Unit (205607) Parts Diagram

  • Title

1

Briggs & Stratton 205612GS

CRADLE (Includes Items 20 & 21)

$285.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 203694GS

WIRE, Ground

$4.49

$

Usually ships in 2-12 days

0

3

-----

* WASHER, Lock, M8

$

$

Not available

4

-----

* BOLT, Hex, M8 x 30

$

$

Not available

5

Briggs & Stratton 791745

KIT, Fuel Line

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 6

0

6

Briggs & Stratton 204748GS

WING NUT

$3.49

$

Usually ships in 2-12 days

0

7

-----

* WASHER, Lock, M8

$

$

Not available

8

-----

* CAPSCREW, Hex Head, 5/16 - 24

$

$

Not available

9

Briggs & Stratton 204735GS

ABSORBER, Vibration

$

$

Not available

10

-----

* CAPSCREW, Socket Head, M8 x 30

$

$

Not available

11

-----

* CAPSCREW, Hex Head

$

$

Not available

12

Briggs & Stratton 204772GS

ALTERNATOR ASSEMBLY

$576.99

$

Usually ships in 2-12 days

0

13

-----

* WASHER, M8

$

$

Not available

14

-----

* WASHER, Flat, M8 x 16

$

$

Not available

15

-----

* NUT, Hex, M8

$

$

Not available

16

-----

* NUT, M10

$

$

Not available

17

-----

* WASHER, Lock, M10

$

$

Not available

18

-----

* WASHER, Flat, M10

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 200310GS

DECAL, Warning, Exhaust

$15.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 202997GS

DECAL, Warning CO

$13.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 194984GS

DECAL , Warning Fuel

$17.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 188333GS

DECAL, Warning Fuel Fill

$23.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 94480GS

DECAL, Fuel Instructions

$17.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 204740GS

WIRE END SEAT

$10.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 204741GS

WIRE END SEAT, White

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 204736GS

PAD, Plastic

$2.99

$

Usually ships in 2-12 days

0

29

-----

* CAPSCREW, Hex Head, M8 x 35

$

$

Not available

30

-----

* WASHER, Flat, M8 x 16

$

$

Not available

31

-----

* NUT, Nylon M8

$

$

Not available

32

Briggs & Stratton 204737GS

QUICK CONNECTOR

$8.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 204738GS

TUBE

$8.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 204739GS

CAP, Fuel

$16.99

$

In Stock, only 1 left!

0

35

-----

* SCREW, M6 x 30

$

$

Not available

36

-----

* WASHER, Flat, M6 x 24

$

$

Not available

37

-----

* NUT, M8

$

$

Not available

38

Briggs & Stratton 204749GS

GROMMET, Tank

$3.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 205614GS

ASSY, Tank, Fuel

Note: (Includes Ref. Nos. 22, 23, 24, 25 & 58)

$269.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 204744GS

GAUGE, Fuel

$13.99

$

Usually ships in 2-12 days

0

41

-----

* SCREW, M5 x 10

$

$

Not available

42

-----

* NUT, Nylon, M6

$

$

Not available

43

Briggs & Stratton 204743GS

VALVE, Fuel
(Superseded to 310574GS)

$10.99

$

In Stock, only 1 left!

0

44

-----

* CAPSCREW, Hex Head, With Lockwasher, M6 1.0 x 12

$

$

Not available

45

-----

* CAPSCREW, Socket Head, M6 - 1.0 x 20

$

$

Not available

46

Briggs & Stratton 697815

GASKET, Exhaust
(Superseded to 692237)

$5.49

$

In Stock, Qty 20+

0

47

Briggs & Stratton 188301GS

MUFFLER

$152.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 191785GS

BRACKET, Muffler

$16.99

$

Usually ships in 2-12 days

0

49

-----

* SCREW, M8 x 25

$

$

Not available

50

Briggs & Stratton 204742GS

FILTER

$7.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 204774GS

CAPACITOR

$30.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 204776GS

WASHER, Capacitor

$3.49

$

Usually ships in 2-12 days

0

53

-----

* NUT, Nylon, M8

$

$

Not available

54

Briggs & Stratton 204777GS

SCREW, Capacitor

$3.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 204775GS

COVER, Alt

$26.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 204773GS

RUBBER

$2.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 203705GS

FLANGE, Alt

$30.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 197797GS

DECAL, Fuel Shut off

$8.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 204883GS

MANUAL, Operator’s

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

$8.99

$

In Stock, Qty 6

0

--

Briggs & Stratton 205613GS

KIT, Decal, Service

$8.49

$

Usually ships in 2-12 days

0
