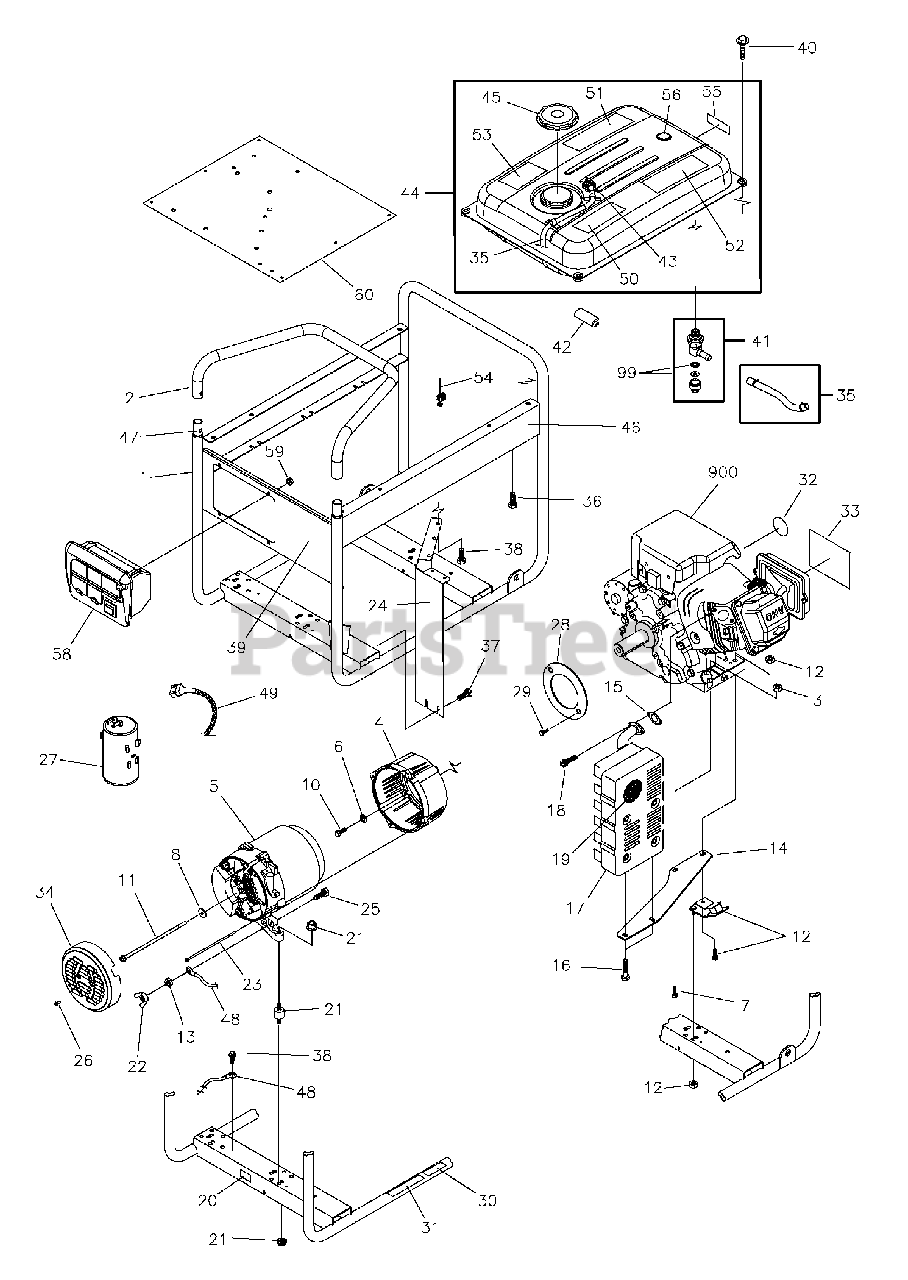

030451-0 - Briggs & Stratton 5,000 Watt Portable Generator Main Unit Parts Diagram

5,000 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton J209358GS

CRADLE

Note: (Includes Ref. Nos. 20, 30 & 31)

$

$

Not available

2

Briggs & Stratton J209287GS

HANDLE

$93.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 13

0

4

Briggs & Stratton 207822GS

ADAPTER, Engine

$100.99

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR

$

$

Not available

6

-----

*WASHER, Lock, 3/8

$

$

Not available

7

Briggs & Stratton 195398GS

SCREW, Pan Head Torx, M8 1.25 x 35

$2.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 207826GS

WASHER

$4.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 207609GS

SPACER

$5.99

$

Usually ships in 2-12 days

0

10

-----

*CAPSCREW, Hex Head, 3/8-16 x 1-1/4

$

$

Not available

11

Briggs & Stratton 207830GS

BOLT

$12.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 208916GS

MOUNT, Vibration

$16.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 49813GS

NUT

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 189009GS

BRACKET

$25.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET

$8.49

$

In Stock, Qty 8

0

16

-----

*CAPSCREW, Hex Head, M6 - 1.0 x 12

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

Briggs & Stratton 204885GS

CAPSCREW, Socket Head, M8 - 1.25 x 20

$

$

Not available

19

Briggs & Stratton 83083GS

ARRESTOR, Spark

$9.99

$

In Stock, Qty 5

0

20

Briggs & Stratton B4986GS

DECAL

$3.49

$

In Stock, only 1 left!

0

21

Briggs & Stratton 195478GS

MOUNT, Vibration

$27.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

23

-----

*CAPSCREW, Hex Head, M6 - 1.0 x 40

$

$

Not available

24

Briggs & Stratton 209745GS

HEAT SHIELD

$94.99

$

Usually ships in 2-12 days

0

25

-----

*CAPSCREW, Hex Head, M6 - 1.0 x 35

$

$

Not available

26

Briggs & Stratton 207824GS

SCREW

$4.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 209044GS

CANISTER, Carbon

$68.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton B4260GS

DISK

$

$

Not available

29

-----

*CAPSCREW, Hex Head, 5/16 - 24 x 3/4

$

$

Not available

30

Briggs & Stratton 208538GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

DECAL

$16.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 200658GS

DECAL

$9.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 209849GS

DECAL

$26.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 207823GS

COVER, Rear Bearing

$29.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 791745

KIT, Fuel Hose (cut to fit)

$11.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 192376GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 56893GS

CRIMPTITE

$3.49

$

In Stock, only 1 left!

0

38

Briggs & Stratton B2153GS

SCREW

$4.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 209848GS

DECAL

$33.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 197955GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 193272GS

VALVE, Fuel
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 209929GS

TRIM, Edge

$4.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 209042GS

VALVE

$

$

Not available

44

Briggs & Stratton 209930GS

TANK, Fuel

Note: (Includes Ref. No. 41)

$

$

Not available

45

Briggs & Stratton 207874GS

CAP, Fuel

$21.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 209847GS

DECAL

$26.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 207525GS

PIN, Spring, Handle

$6.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE

$

$

Not available

49

Briggs & Stratton 208029GS

HARNESS, Power

$101.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL

$25.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL

$12.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 189235GS

DECAL

$20.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 202997GS

DECAL

$14.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 209036GS

MOUNT, Tiewrap

$8.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197797GS

DECAL

$9.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 208962GS

GAUGE

$

$

Not available

58

Briggs & Stratton 204073GS

CONTROL PANEL

$213.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 189164GS

PALNUT, 3/16

$3.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 208183GS

HEAT SHIELD

$98.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 189759GS

KIT, Fuel Valve Repair
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

900

-----

**ENGINE

$

$

Not available

--

Briggs & Stratton 209845GS

MANUAL, Operator's

$

$

Not available
