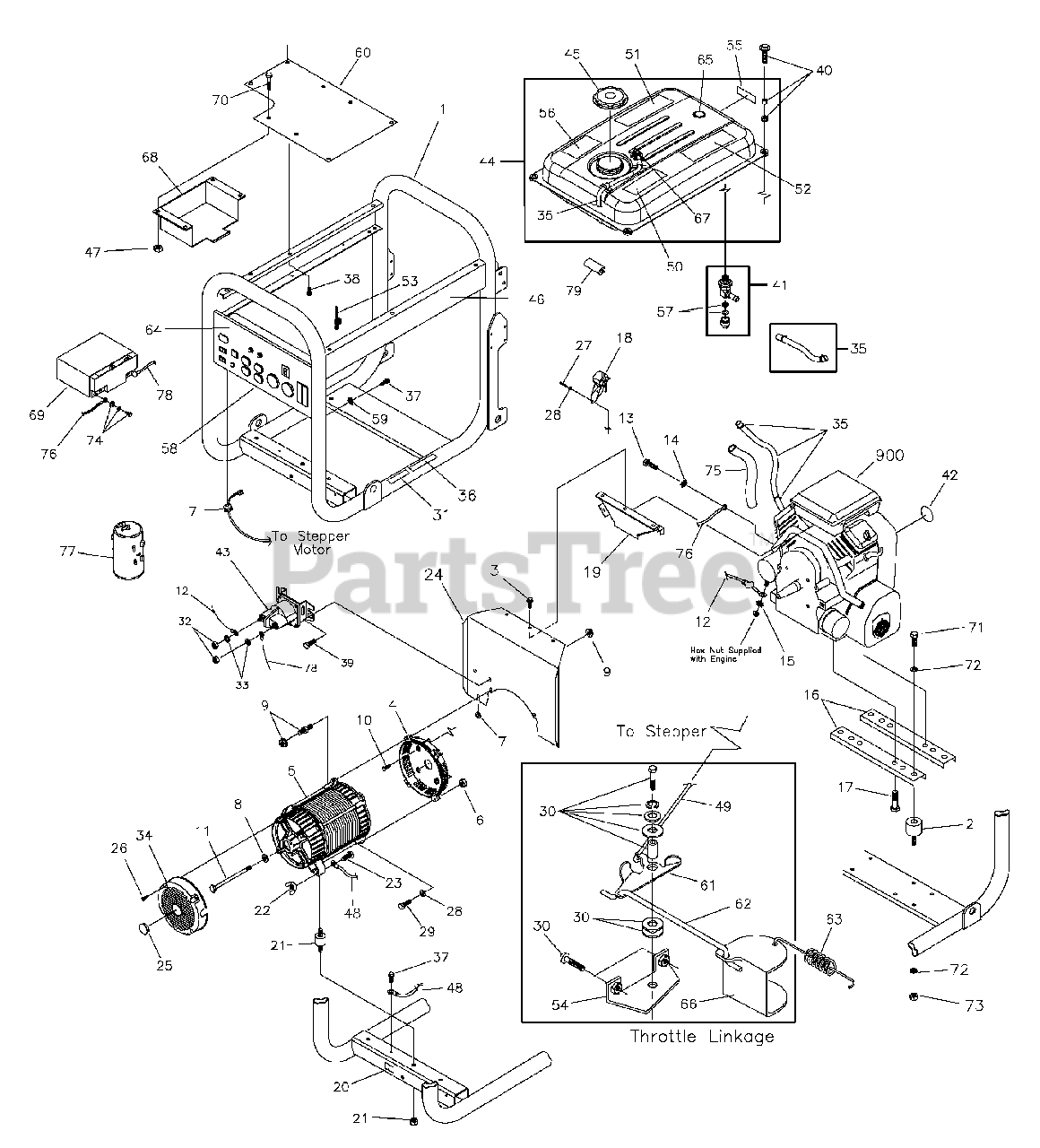

030455-0 - Briggs & Stratton 8,000 Watt Portable Generator Main Unit Parts Diagram

8,000 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B209949GS

CRADLE

Note: (Includes Ref. Nos. 20, 31 & 36)

$853.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 38353GS

MOUNT, Vibration

$39.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 56893GS

CRIMPTITE

$3.49

$

In Stock, only 1 left!

0

4

Briggs & Stratton 190220GS

ADAPTER, Engine

$43.99

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR

$

$

Not available

6

-----

*NUT, Hex, M8 - 1-1/4

$

$

Not available

7

Briggs & Stratton 62265GS

GROMMET

$8.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 194208GS

KIT, Hardware, Heatshield

$20.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274BGS

SCREW

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365HGS

SCREW

$25.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 189302BGS

WIRE

$17.99

$

Usually ships in 2-12 days

0

13

-----

*CAPSCREW, Hex Head, M8 - 1.25 x 16

$

$

Not available

14

-----

*WASHER, Shakeproof, EXT. 5/16

$

$

Not available

15

-----

*WASHER, Shakeproof, EXT. M6

$

$

Not available

16

Briggs & Stratton B77304GS

SUPPORT, Engine

$27.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 192376GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 195404GS

MOTOR, Stepper

$148.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton J93074GS

SUPPORT, Heat Shield

$136.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B4986GS

DECAL

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194155GS

MOUNT, Vibration

$17.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

23

-----

*CAPSCREW, Hex Head, M6 - 1.0 x 40

$

$

Not available

24

Briggs & Stratton 194951GS

HEAT SHIELD

$93.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE

$2.99

$

Usually ships in 2-12 days

0

27

-----

*CAPSCREW, Hex Head, M8 - 1.25 x 20

$

$

Not available

28

-----

*WASHER, Lock, 5/16 M8

$

$

Not available

29

-----

*CAPSCREW, Hex Head, M8-1.25 x 25

$

$

Not available

30

Briggs & Stratton 194543GS

KIT, Hardware, Throttle Linkage

$25.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

DECAL

$15.99

$

Usually ships in 2-12 days

0

32

-----

*NUT, 1/4-20

$

$

Not available

33

-----

*WASHER, Lock, 1/4

$

$

Not available

34

Briggs & Stratton 195422GS

COVER, Rear Bearing

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Hose (cut to fit)

$10.99

$

In Stock, Qty 7

0

36

Briggs & Stratton 208538GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B2153GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 192376GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

40

Briggs & Stratton 198221GS

KIT, Hardware, Fuel Tank

Note: (Qty 4)

$8.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 193272GS

VALVE, Fuel
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 200658GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton B4769GS

CONTACTOR, Start

$29.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 310513GS

TANK, Fuel

Note: (Includes Ref. No. 41)

$252.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 207874GS

CAP, Fuel

$20.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 204719GS

DECAL

$21.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 77395GS

NUT

$3.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE

$2.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 95920GS

LINK, Stepper Motor

$16.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 189235GS

DECAL

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 209036GS

MOUNT, Tiewrap

$8.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 95349GS

PLATE, Adjustment

$7.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197797GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 202997GS

DECAL

$13.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 189759GS

KIT, Fuel Valve Repair
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 5

0

58

Briggs & Stratton 202526GS

CONTROL PANEL

$727.99

$

Usually ships in 2-12 days

0

59

-----

*WASHER, Shakeproof, EXT. #10

$

$

Not available

60

Briggs & Stratton 193512GS

SUPPORT, Battery Tray

$98.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 95348GS

BRACKET

$7.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 95921GS

LINK, Bell Crank

$12.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 96717GS

SPRING

$58.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 204720GS

DECAL

$20.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 208962GS

GAUGE

$

$

Not available

66

Briggs & Stratton 200107GS

BRACKET

$31.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 209042GS

VALVE

$15.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 195680GS

TRAY, Battery

$62.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 193043GS

BATTERY

$137.99

$

In Stock, only 4 left!

0

70

-----

*CAPSCREW, Hex Head, M6 - 1.0 x 12

$

$

Not available

71

-----

*CAPSCREW, Hex Head, 3/8 - 16 x 3/4

$

$

Not available

72

-----

*WASHER, Lock, 3/8

$

$

Not available

73

-----

*NUT, 3/8-16

$

$

Not available

74

Briggs & Stratton 193347GS

KIT, Hardware, Battery

$2.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 280623

TUBING, Fuel Line
(Superseded to 280866)

$

$

Not available

76

Briggs & Stratton 185939GGS

WIRE

$12.99

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 209044GS

CANISTER, Carbon

$64.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 189302EGS

WIRE

$18.99

$

Usually ships in 2-12 days

0

79

Briggs & Stratton 209646GS

TRIM
(Superseded to 209929GS)

$4.99

$

Usually ships in 2-12 days

0

900

-----

**ENGINE

$

$

Not available

--

Briggs & Stratton 310012GS

MANUAL, Operator's

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton BB3061GS

OIL (Qty 1)

Note: (Not Illustrated)

$13.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton BB3061BGS

OIL (Qty 1)
(Superseded to 100005)

Note: (Not Illustrated)

$8.99

$

In Stock, Qty 8

0

--

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

Note: (Not Illustrated)

$38.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 209838GS

DECAL, Family, CA EVP

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 43438GS

PLUG, 120/240V TL30A

Note: (Not Illustrated)

$26.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 100523GS

PLUG,125V TL30A

Note: (Not Illustrated)

$20.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 65787GS

CABLE, Battery Charge

Note: (Not Illustrated)

$24.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 690661

SCREW

Note: (Not Illustrated)

$3.49

$

In Stock, Qty 20+

0

--

Briggs & Stratton 392390

SPARK, Arrester
(Superseded to 794945)

Note: (Not Illustrated)

$53.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 692099

MUFFLER

Note: (Not Illustrated)

$184.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 691513

BRACKET

Note: (Not Illustrated)

$55.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 692056

SCREW

Note: (Not Illustrated)

$5.99

$

In Stock, Qty 6

0

--

Briggs & Stratton 690898

CLAMP

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 692539

SCREW
(Superseded to 841233)

Note: (Not Illustrated)

$3.49

$

In Stock, Qty 6

0
