030476-00 - Troy-Bilt 6,000 Watt Portable Generator Alternator (316029) Parts Diagram

6,000 Watt Portable Generator

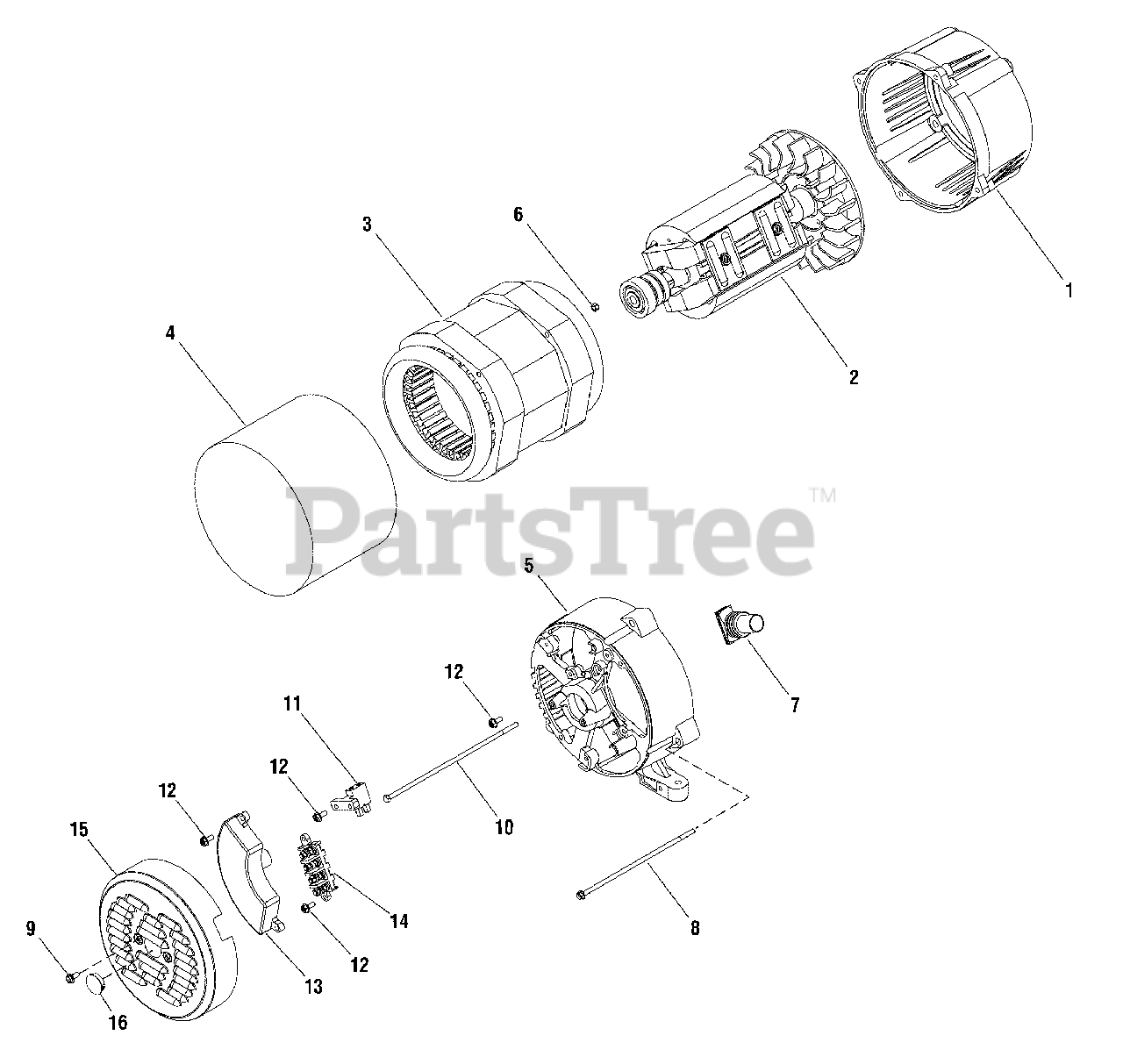

Alternator (316029) Parts Diagram

  • Title

1

Briggs & Stratton 208537GS

ADAPTER, Engine

$126.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 315795GS

ROTOR

$401.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 315794GS

STATOR

$506.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 207837GS

BAND, Stator

$20.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 208485GS

SUPPORT, Bearing

$111.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 207878GS

NUT

$7.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 207879GS

BOOT

$7.49

$

In Stock, only 2 left!

0

8

Briggs & Stratton 207829GS

BOLT

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 207824GS

BOLT

$4.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 207876GS

BOLT

$9.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 207827GS

BRUSH

$

$

Not available

12

Briggs & Stratton 207825GS

BOLT

$4.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 207840GS

REGULATOR, Voltage

$

$

Not available

14

Briggs & Stratton 207839GS

BLOCK, Junction

$16.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 208429GS

COVER

$45.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 315802GS

CAP

$5.49

$

In Stock, only 1 left!

0
