030477A-00 - Troy-Bilt XP 7,000 Watt Portable Generator Main Unit (80013099) Parts Diagram

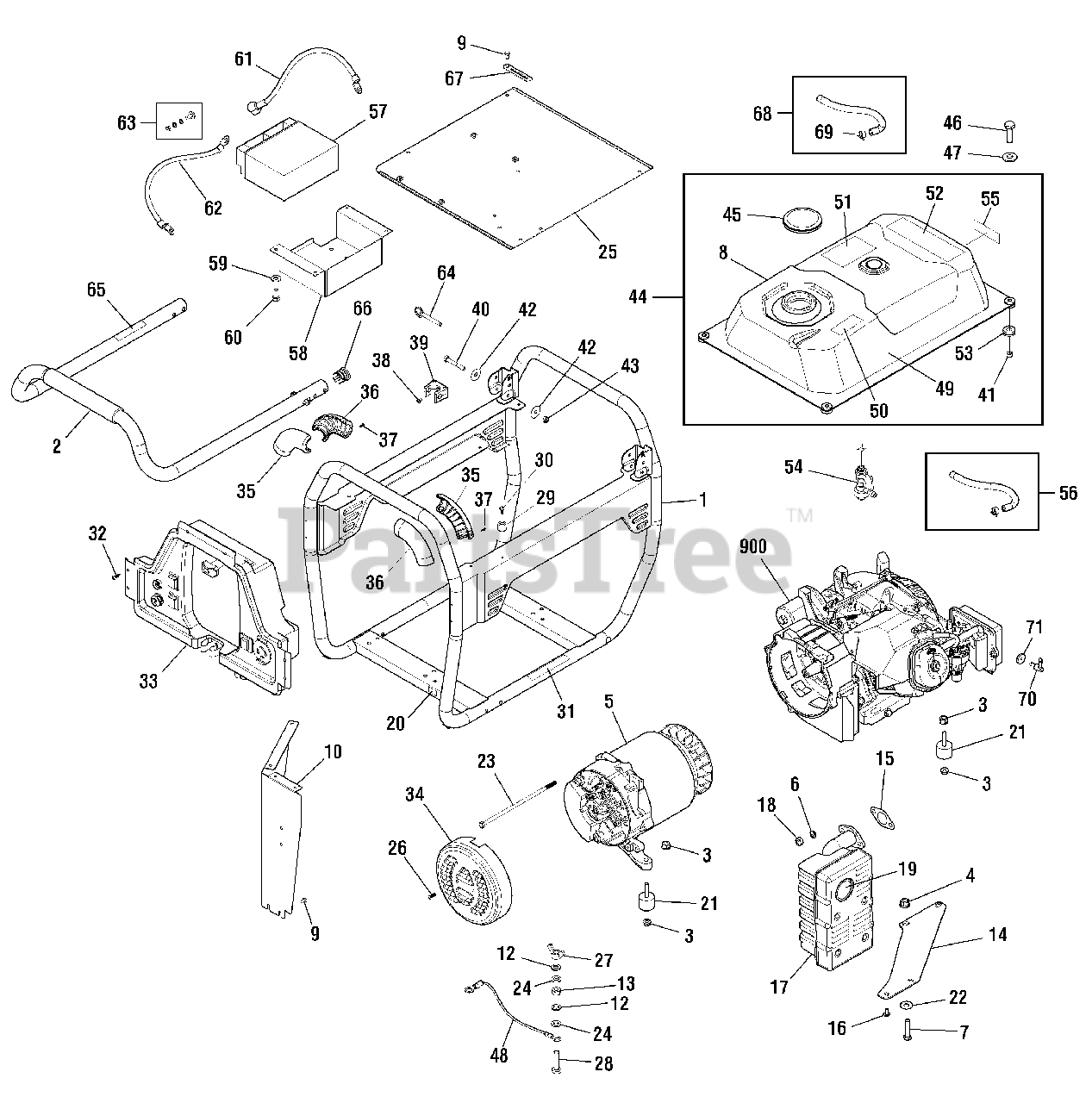

XP 7,000 Watt Portable Generator

Main Unit (80013099) Parts Diagram

  • Title

1

Briggs & Stratton 311202GS

CRADLE

$353.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 313763GS

HANDLE

$142.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 52859GS

NUT, Lock

$2.49

$

Usually ships in 2-12 days

0

5

ALTERNATOR

$

$

Not available

6

* WASHER, Lock, 3/8

$

$

Not available

7

* CAPSCREW, Hex Head, M10-1.5 x 45

$

$

Not available

8

Briggs & Stratton 705943

ROD-THROTTLE

$12.99

$

Usually ships in 2-12 days

0

9

* CAPSCREW, Hex Head, M6-1.0 x 10

$

$

Not available

10

Briggs & Stratton 318886GS

HEATSHIELD

$76.99

$

Usually ships in 2-12 days

0

12

* WASHER, Lock, 1/4

$

$

Not available

13

* NUT, M6-1.0

$

$

Not available

14

Briggs & Stratton 312941GS

SUPPORT-MUFFLER

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 794818

Gasket-Exhaust

$8.49

$

In Stock, only 1 left!

0

16

* CAPSCREW, Hex HEad, M6-1.0 x 12

$

$

Not available

17

Briggs & Stratton 192569GS

MUFFLER

$179.99

$

In Stock, only 2 left!

0

18

* NUT, M8 - 1.25

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton 704331

DECAL

$10.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 85651GS

MOUNT, Vibration

$24.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 189295GS

Washer, .432 x 1 x .064
(Superseded to 22304GS)

$3.49

$

In Stock, only 2 left!

0

23

Briggs & Stratton 312915GS

BOLT

$5.49

$

In Stock, only 1 left!

0

24

* WASHER, M6

$

$

Not available

25

Briggs & Stratton 312731GS

HEATSHIELD

$56.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 312909GS

SCREW

$3.49

$

In Stock, only 2 left!

0

27

Briggs & Stratton 87680GS

NUT, M6 - 1.0 Wing

$7.49

$

Usually ships in 2-12 days

0

28

* CAPSCREW, Hex Head, M6-1.0 x 25

$

$

Not available

29

Briggs & Stratton 313086GS

BUMPER

$5.49

$

In Stock, only 2 left!

0

30

Briggs & Stratton 313077GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 319066GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 313075GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 707489

PANEL-CONTROL

$931.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 312870GS

COVER, Rear Bearing

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 311213GS

GRIP

$9.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 311214GS

GRIP

$9.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 313076GS

SCREW

$2.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 197486GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 312402GS

BRACKET

$5.49

$

In Stock, only 2 left!

0

40

Briggs & Stratton 312943GS

BOLT

$4.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 189137GS

SPACER

$4.49

$

In Stock, only 4 left!

0

42

Briggs & Stratton 187104GS

* WASHER, Nylon, 1.2 x .346 x .03

$4.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 312945GS

NUT

$3.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 707488

TANK-FUEL
(Superseded to 706324)

$

$

Not available

45

Briggs & Stratton 319385GS

CAP, Fuel

$24.99

$

In Stock, only 1 left!

0

46

Briggs & Stratton 706323

BOLT

$3.49

$

Usually ships in 2-12 days

0

47

* WASHER, Flat, 1/4

$

$

Not available

48

Briggs & Stratton 313481GS

WIRE

$6.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 706325

DECAL

$12.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 319065GS

DECAL

$6.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 202997GS

DECAL, Warning, CO

$13.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 319064GS

DECAL

$7.49

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 189134GS

GROMMET, Rubber

$4.99

$

In Stock, only 4 left!

0

54

Briggs & Stratton 310574GS

KIT, Fuel Valve

$10.99

$

In Stock, Qty 5

0

55

Briggs & Stratton 705767

DECAL

$11.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 791745

KIT-FUEL, Hose (Cut To Fit)

$10.99

$

In Stock, Qty 7

0

57

Briggs & Stratton 316345GS

BATTERY

$246.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 195680GS

TRAY, Battery

$62.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 70005GS

WSHR, M6, SS, LOCK

$2.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 43116GS

HHCS, M6 - 1.0 x 12

$3.49

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 313479GS

WIRE

$9.49

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 313480GS

WIRE

$14.99

$

In Stock, only 1 left!

0

63

Briggs & Stratton 315546GS

KIT, Hardware, Battery Terminal

$8.99

$

In Stock, only 1 left!

0

64

Briggs & Stratton B4135GS

PIN, with Lanyard

$6.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 313159GS

DECAL

$8.49

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 313594GS

PLUG

$6.49

$

In Stock, only 1 left!

0

67

Briggs & Stratton 315018GS

WIREFORM

$4.49

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 315017GS

HOSE, Vapor (cut to fit)

$28.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 316173GS

CLAMP

$5.49

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 283603GS

ELBOW

$3.49

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 283475GS

BUSHING

$5.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 25T235-0016-G1

ENGINE

$

$

Currently unavailable

--

Briggs & Stratton 316711GS

FUSE

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B4177GS

CHARGER, Battery, Round Connector, 120 VAC,
(Superseded to 705927)

Note: (Not Illustrated)

$38.99

$

In Stock, only 1 left!

0
