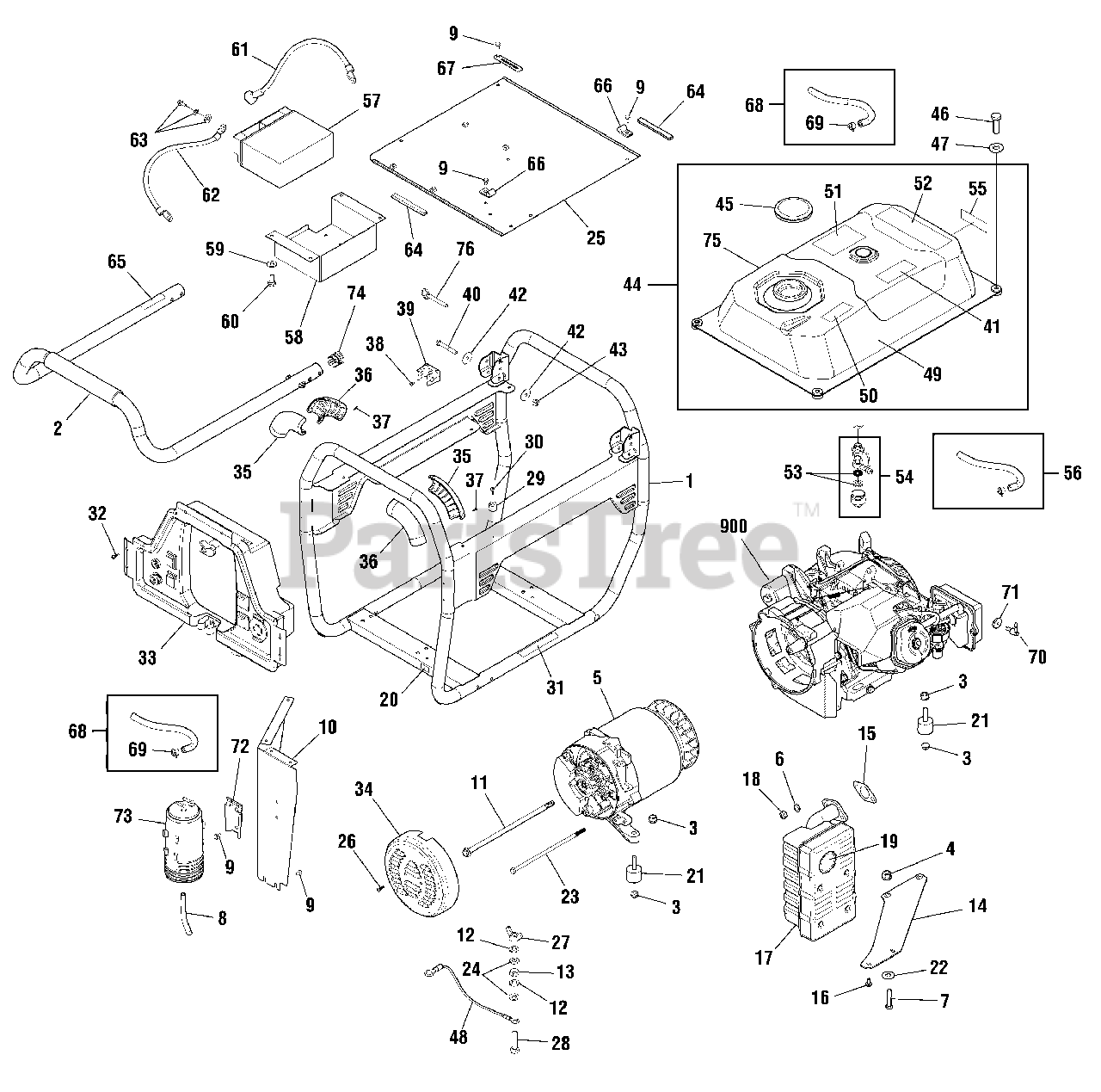

030478-01 - Troy-Bilt 7,000 Watt Portable Generator Main Unit (80006588) Parts Diagram

7,000 Watt Portable Generator

Main Unit (80006588) Parts Diagram

  • Title

1

Briggs & Stratton 311202GS

CRADLE

$353.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 313763GS

HANDLE

$142.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 52859GS

NUT

$2.49

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR

$

$

Not available

6

-----

* WASHER-LOCK 3/8

$

$

Not available

7

-----

* HHCS-M10-1.5 x 45

$

$

Not available

8

Briggs & Stratton 195201DGS

HOSE-FUEL
(Superseded to 5050831X5SM)

$5.49

$

Usually ships in 2-12 days

0

9

-----

* HHCS-M6-1.0 x 10

$

$

Not available

10

Briggs & Stratton 318886GS

HEATSHIELD

$76.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 312912GS

BOLT

$7.99

$

In Stock, only 1 left!

0

12

-----

* WASHER-LOCK 1/4

$

$

Not available

13

-----

* NUT-M6-1.0

$

$

Not available

14

Briggs & Stratton 312941GS

BRACKET

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 794818

GASKET-EXHAUST

$8.49

$

In Stock, only 1 left!

0

16

-----

* HHCS-M6-1.0 x 12

$

$

Not available

17

Briggs & Stratton 192569GS

MUFFLER

$179.99

$

In Stock, only 2 left!

0

18

-----

* NUT-M8 - 1.25

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton B4986GS

DECAL

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 85651GS

MOUNT-VIBRATION

$24.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 189295GS

WASHER
(Superseded to 22304GS)

$3.49

$

In Stock, only 2 left!

0

23

Briggs & Stratton 312915GS

BOLT

$5.49

$

In Stock, only 1 left!

0

24

-----

* WASHER-M6

$

$

Not available

25

Briggs & Stratton 312731GS

HEATSHIELD

$56.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 312909GS

SCREW

$3.49

$

In Stock, only 2 left!

0

27

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

28

-----

* HHCS-M6-1.0 x 25

$

$

Not available

29

Briggs & Stratton 313086GS

BUMPER

$5.49

$

In Stock, only 2 left!

0

30

Briggs & Stratton 313077GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 319066GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 313075GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 319778GS

PANEL-CONTROL

$384.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 312870GS

COVER-REAR BEARING

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 311213GS

GRIP

$9.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 311214GS

GRIP

$9.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 313076GS

SCREW

$2.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 197486GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 312402GS

BRACKET

$5.49

$

In Stock, only 2 left!

0

40

Briggs & Stratton 312943GS

BOLT

$4.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 208538GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 187104GS

WASHER

$4.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 312945GS

NUT

$3.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 706324

TANK-FUEL

$

$

Not available

45

Briggs & Stratton 319385GS

CAP-FUEL

$24.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 706323

BOLT

$3.49

$

Usually ships in 2-12 days

0

47

-----

* WASHER-FLAT 1/4

$

$

Not available

48

Briggs & Stratton 313481GS

WIRE

$6.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 706325

DECAL

$12.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 319065GS

DECAL

$6.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 202997GS

DECAL

$13.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 319064GS

DECAL

$7.49

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 189759GS

KIT-FUEL VALVE REPAIR
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 5

0

54

Briggs & Stratton 310574GS

VALVE-FUEL

$10.99

$

In Stock, Qty 5

0

55

Briggs & Stratton 197797GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 791745

KIT-FUEL HOSE (Cut to fit)

$10.99

$

In Stock, Qty 8

0

57

Briggs & Stratton 316345GS

BATTERY

$246.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 195680GS

TRAY-BATTERY

$62.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 70005GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 43116GS

BOLT

$3.49

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 313479GS

WIRE

$9.49

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 313480GS

WIRE

$14.99

$

In Stock, only 1 left!

0

63

Briggs & Stratton 315546GS

KIT-BATTERY HARDWARE

$8.99

$

In Stock, only 1 left!

0

64

Briggs & Stratton 315041GS

EDGING

$9.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 313159GS

DECAL

$8.49

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 315042GS

CLAMP

$2.49

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 315018GS

WIREFORM

$4.49

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 315017GS

HOSE-VAPOR (Cut to fit)

$28.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 316173GS

CLAMP

$5.49

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 283603GS

ELBOW

$3.49

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 283475GS

BUSHING

$5.99

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 318884GS

BRACKET

$13.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 318889GS

CARB CANISTER

$217.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 313594GS

PLUG

$6.49

$

In Stock, only 1 left!

0

75

Briggs & Stratton 705943

DECAL

$12.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton B4135GS

PIN

$6.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 316711GS

FUSE

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B4177GS

CHARGER-BATTERY
(Superseded to 705927)

$38.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 311548GS

CORDSET

$302.99

$

Usually ships in 2-12 days

0
