030486-0 - Briggs & Stratton 3,500 Watt Portable Generator Main Unit (313515) Parts Diagram

3,500 Watt Portable Generator

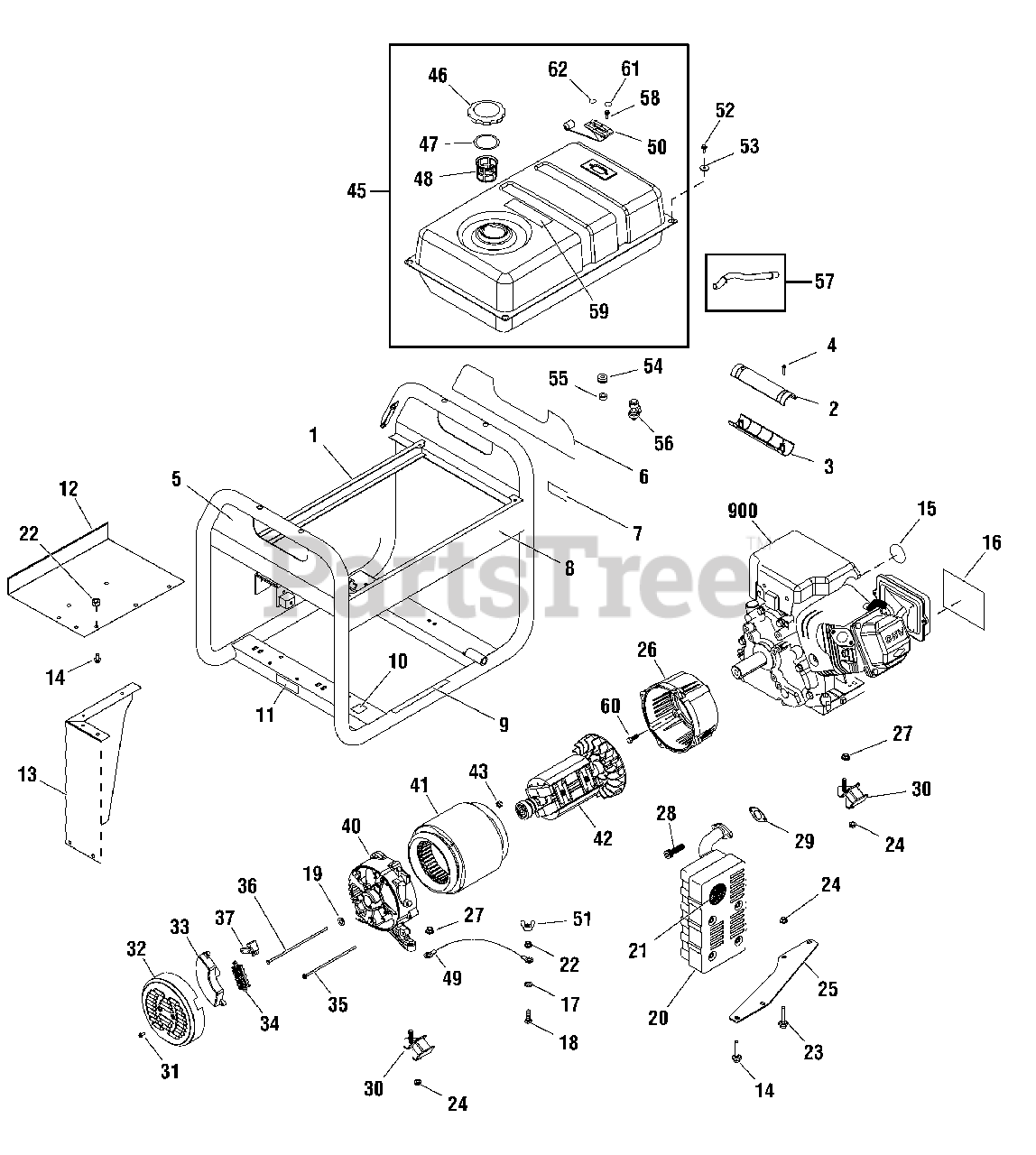

Main Unit (313515) Parts Diagram

  • Title

1

Briggs & Stratton 313521GS

CRADLE

$372.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 313321GS

GRIP-HANDLE

$14.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 313322GS

GRIP-HANDLE

$14.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 75477GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 312554GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 312555GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 197798GS

DECAL

$9.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 312556GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 200310GS

DECAL

$15.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton B4986GS

DECAL

$2.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 200311GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 313522GS

HEATSHIELD

$58.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 313523GS

HEATSHIELD

$58.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 209775GS

BOLT

$4.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 200658GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 312553GS

DECAL

$9.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 22097GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 47411GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 312045GS

WASHER

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

21

Briggs & Stratton 83083GS

SCREEN

$9.49

$

In Stock, Qty 8

0

22

Briggs & Stratton 197861GS

NUT

$3.49

$

In Stock, only 1 left!

0

23

Briggs & Stratton 313524GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 20+

0

25

Briggs & Stratton 189009GS

SUPPORT-MUFFLER

$23.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 704266

ADAPTER-ENGINE

$101.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 193747GS

NUT

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 204885GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 695398

GASKET

$7.99

$

In Stock, Qty 6

0

30

Briggs & Stratton 209425GS

MOUNT-VIBRATION
(Superseded to 706149)

$10.99

$

In Stock, Qty 7

0

31

Briggs & Stratton 207824GS

SCREW

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 313364GS

END COVER

$32.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 209420GS

VOLTAGE REGULATOR

$51.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 312041GS

TERMINAL BLOCK

$16.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 312042GS

BOLT

$17.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 313525GS

BOLT

$7.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 209441GS

BRUSH ASSY

$11.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 209423GS

CARRIER-BEARING

$149.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 313527GS

STATOR

$291.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 313529GS

ROTOR

$260.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 207878GS

NUT

$7.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 313531GS

TANK-FUEL

$148.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 311990GS

CAP-FUEL

$17.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 209939GS

SEAL

$

$

Not available

48

Briggs & Stratton 311991GS

FILTER-SCREEN

$

$

Not available

49

Briggs & Stratton 312040GS

WIRE

$6.99

$

In Stock, only 1 left!

0

50

Briggs & Stratton 311992GS

GAUGE-FUEL

$18.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 209421GS

BOLT

$4.49

$

In Stock, only 4 left!

0

53

Briggs & Stratton 312005GS

WASHER

$3.99

$

In Stock, only 3 left!

0

54

Briggs & Stratton 312006GS

GROMMET

$3.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 312010GS

SPACER

$3.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 209417GS

VALVE-FUEL

$8.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 791745

KIT-FUEL HOSE

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 6

0

58

Briggs & Stratton 197896GS

SCREW

$2.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 188333GS

DECAL

$23.99

$

In Stock, only 1 left!

0

60

Briggs & Stratton 313368GS

BOLT

$12.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 313461GS

DECAL

$10.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 313462GS

DECAL

$9.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 313874GS

CONTROL PANEL ASSEMBLY

Note: (Not Illustrated)

$291.99

$

Usually ships in 2-12 days

0
