030536-0 - PowerBoss 8,000 Watt Portable Generator Main Unit (314158) Parts Diagram

8,000 Watt Portable Generator

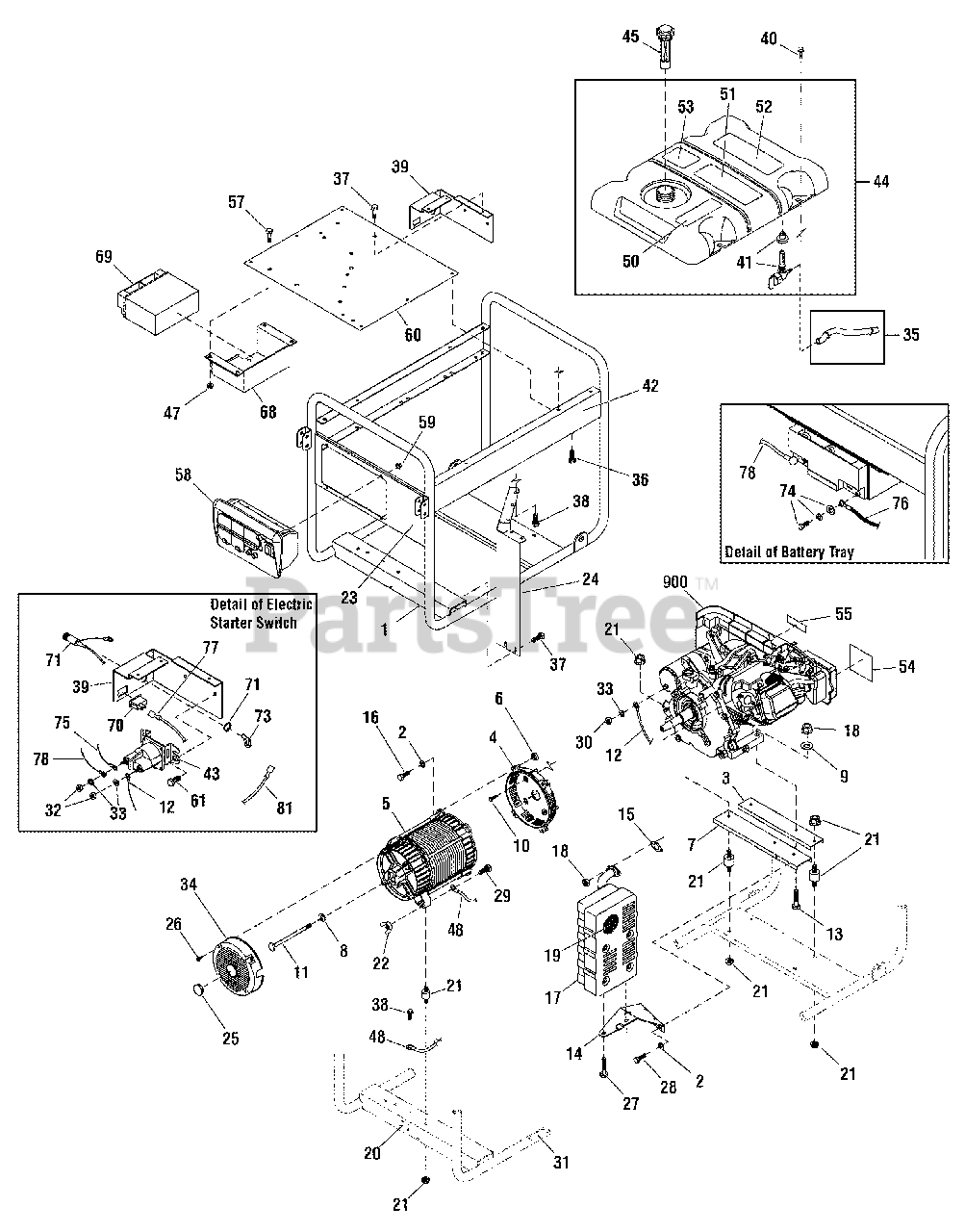

Main Unit (314158) Parts Diagram

  • Title

1

Briggs & Stratton 206597ZGS

CRADLE

Note: (Includes Ref. Nos. 20 & 31)

$372.99

$

Usually ships in 2-12 days

0

2

-----

* WASHER, Flat, 5/16-M8

$

$

Not available

3

Briggs & Stratton 92531ZGS

SUPPORT, Engine

$25.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 190220GS

ADAPTER, Engine

$43.99

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR

$

$

Not available

6

-----

* NUT, Hex, M8 - 1-1/4

$

$

Not available

7

Briggs & Stratton 190723ZGS

SUPPORT, Engine

$35.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 50190GS

WASHER

$3.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274DGS

SCREW

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 205856GS

BOLT

$7.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 189302LGS

WIRE

$22.99

$

Usually ships in 2-12 days

0

13

-----

* CAPSCREW, Hex Head, M8-1.25 x 45

$

$

Not available

14

Briggs & Stratton 92532GS

BRACKET

$22.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 710250

GASKET

$8.49

$

In Stock, only 2 left!

0

16

-----

* CAPSCREW, Hex Head, M8-1.25 x 25

$

$

Not available

17

Briggs & Stratton B4206AGS

MUFFLER

$

$

Not available

18

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 20+

0

19

Briggs & Stratton 83083GS

ARRESTOR, Spark

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton B4986GS

DECAL

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 198222GS

MOUNT, Vibration

$18.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 314183GS

DECAL

$22.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 194390GS

HEATSHIELD

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE

$2.99

$

Usually ships in 2-12 days

0

27

-----

* CAPSCREW, Hex Head, M6-1.0 x 12

$

$

Not available

28

-----

* CAPSCREW, Hex Head, 5/16-18 x 3/4

$

$

Not available

29

-----

* CAPSCREW, Hex Head, M6-1.0 x 40

$

$

Not available

30

-----

* NUT, Hex, M6-1

$

$

Not available

31

Briggs & Stratton 196830GS

DECAL

$15.99

$

Usually ships in 2-12 days

0

32

-----

* NUT, 1/4-20

$

$

Not available

33

-----

* WASHER, Lock, 1/4

$

$

Not available

34

Briggs & Stratton 195422GS

COVER, Rear Bearing

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Hose

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 7

0

36

Briggs & Stratton 192376GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 56893GS

CRIMPTITE

$3.49

$

In Stock, only 1 left!

0

38

Briggs & Stratton B2153GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 196810ZGS

BRACKET

$27.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 199256GS

BOLT

$2.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

KIT, Fuel Valve

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 314185GS

DECAL

$22.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 691656

SOLENOID

$31.99

$

In Stock, Qty 12

0

44

Briggs & Stratton 194217GS

TANK, Fuel

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel

$41.99

$

In Stock, Qty 20+

0

47

Briggs & Stratton 77395GS

NUT

$3.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 14353621GS

WIRE
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 189235GS

DECAL

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 202997GS

DECAL

$13.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 314184GS

DECAL

$15.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL

$9.49

$

Usually ships in 2-12 days

0

57

-----

* CAPSCREW, Hex Head, M6-1.0 x 12

$

$

Not available

58

Briggs & Stratton 204726GS

PANEL, Control

$235.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 189164GS

PALNUT, 3/16

$3.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 208183GS

HEATSHEILD

$93.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

68

Briggs & Stratton 195680GS

TRAY, Battery

$62.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 193463GS

BATTERY

$172.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 87799GS

SWITCH, ON/OFF

$7.49

$

In Stock, Qty 15

0

71

Briggs & Stratton 196626GS

JACK, Coaxial
(Superseded to 312004GS)

$10.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 192351GS

LUG

$2.49

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 193347GS

KIT, Hardware, Battery Terminal

$2.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 312229GS

WIRE

$5.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 185939KGS

WIRE

$

$

Not available

77

Briggs & Stratton 312230GS

WIRE

$5.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 189302MGS

WIRE

$22.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 312231GS

WIRE

$5.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 314157GS

MANUAL, Operator's

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

Note: (Not Illustrated)

$38.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton BB3061BGS

OIL
(Superseded to 100005)

Note: (Qty 2 Required) (Not Illustrated)

$8.99

$

In Stock, Qty 8

0
