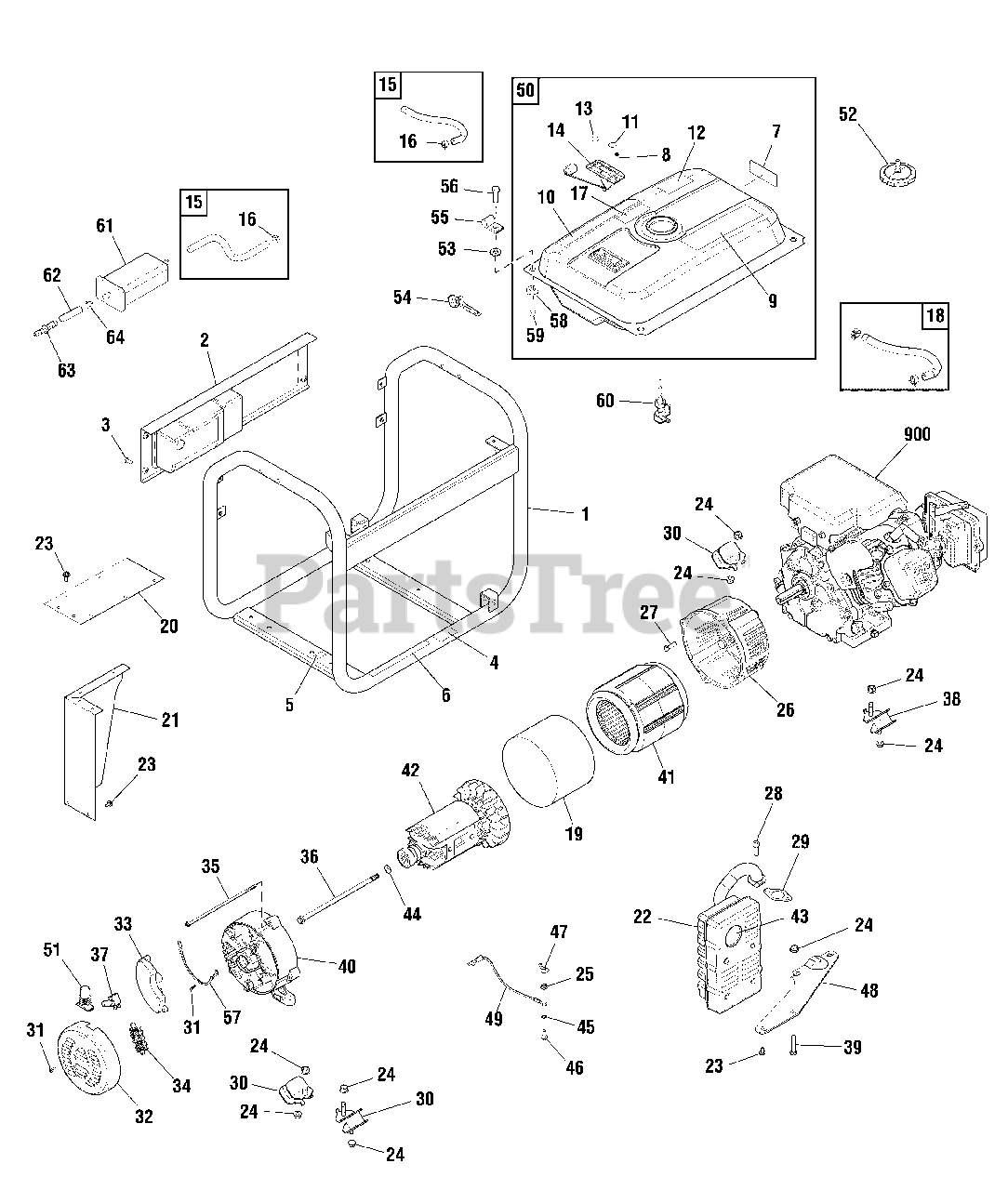

030550-02 - Briggs & Stratton 3,500 Watt Portable Generator Main Unit (80017915) Parts Diagram

3,500 Watt Portable Generator

Main Unit (80017915) Parts Diagram

  • Title

1

Briggs & Stratton 704290

CRADLE

Note: (Includes Ref. Nos. 4, 5 & 6)

$276.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 704283

ASSY-CONTRL PANEL

$186.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 703804

BOLT

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 208538GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B4986GS

DECAL

$3.49

$

In Stock, only 1 left!

0

6

Briggs & Stratton 200310GS

DECAL

$16.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 197798GS

DECAL

$9.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 314440GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 194984GS

DECAL

$18.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 312572GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 313462GS

DECAL

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 202997GS

DECAL

$14.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 313461GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 208124GS

GAUGE-FUEL

$

$

Not available

15

Briggs & Stratton 315017GS

HOSE

$30.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 314955GS

CLAMP

$5.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 312728GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 791745

KIT-FUEL HOSE

Note: (Cut to fit)

$11.99

$

In Stock, only 3 left!

0

19

Briggs & Stratton 706154

BOND

$

$

Not available

20

Briggs & Stratton 318166GS

HEATSHIELD

$35.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 318177GS

HEATSHIELD

$61.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 188301GS

MUFFLER

$161.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 706152

SCREW
(Superseded to 590850)

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 18

0

25

Briggs & Stratton 52857GS

NUT

$3.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 704266

ADAPTER-ENGINE

$107.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 313368GS

BOLT

$13.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 706921

KIT-HARDWARE

$5.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 798516

GASKET

$5.49

$

In Stock, only 2 left!

0

30

Briggs & Stratton 209425GS

MOUNT-VIBRATION
(Superseded to 706149)

$11.99

$

In Stock, only 2 left!

0

31

Briggs & Stratton 207824GS

SCREW

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 313364GS

END COVER

$34.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 209420GS

VOLTAGE REGULATOR

$54.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 316945GS

TERMINAL BLOCK

$9.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 209427GS

BOLT

$9.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 313525GS

BOLT

$7.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 207827GS

BRUSH ASSY

$

$

Not available

38

Briggs & Stratton 706149

MOUNT-VIBRATION

$11.99

$

In Stock, only 2 left!

0

39

Briggs & Stratton 313524GS

BOLT
(Superseded to 590714)

$4.49

$

In Stock, Qty 5

0

40

Briggs & Stratton 209423GS

CARRIER-BEARING

$158.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 318162GS

STATOR

$309.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 318164GS

ROTOR

$298.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 83083GS

SCREEN

$9.99

$

In Stock, only 2 left!

0

44

Briggs & Stratton 207826GS

WASHER

$4.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 26850GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 706166

SCREW
(Superseded to 590703)

$3.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 191785GS

BRACKET-MUFFLER

$

$

Not available

49

Briggs & Stratton 706153

WIRE

$6.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 707734

TANK-FUEL

$

$

Currently unavailable

51

Briggs & Stratton 207879GS

BOOT

$7.49

$

In Stock, only 2 left!

0

52

Briggs & Stratton 314950GS

CAP-FUEL

$

$

Not available

53

Briggs & Stratton 312005GS

WASHER

$3.99

$

In Stock, only 3 left!

0

54

Briggs & Stratton 706894

CLIP

$2.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 315042GS

CLAMP

$2.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 703805

BOLT

$11.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 706150

WIRE

$7.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 189134GS

GROMMET

$4.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 189137GS

SPACER

$4.49

$

In Stock, only 4 left!

0

60

Briggs & Stratton 209417GS

VALVE-FUEL

$8.99

$

In Stock, Qty 11

0

61

Briggs & Stratton 316783GS

CARBON CANISTER

$78.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 195201AGS

HOSE-FUEL

$4.49

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 317025GS

BARB-HOSE

$8.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 48031JGS

CLAMP

$

$

Not available

900

Briggs & Stratton 15T202-0163-G8

** ENGINE

$

$

Not available
