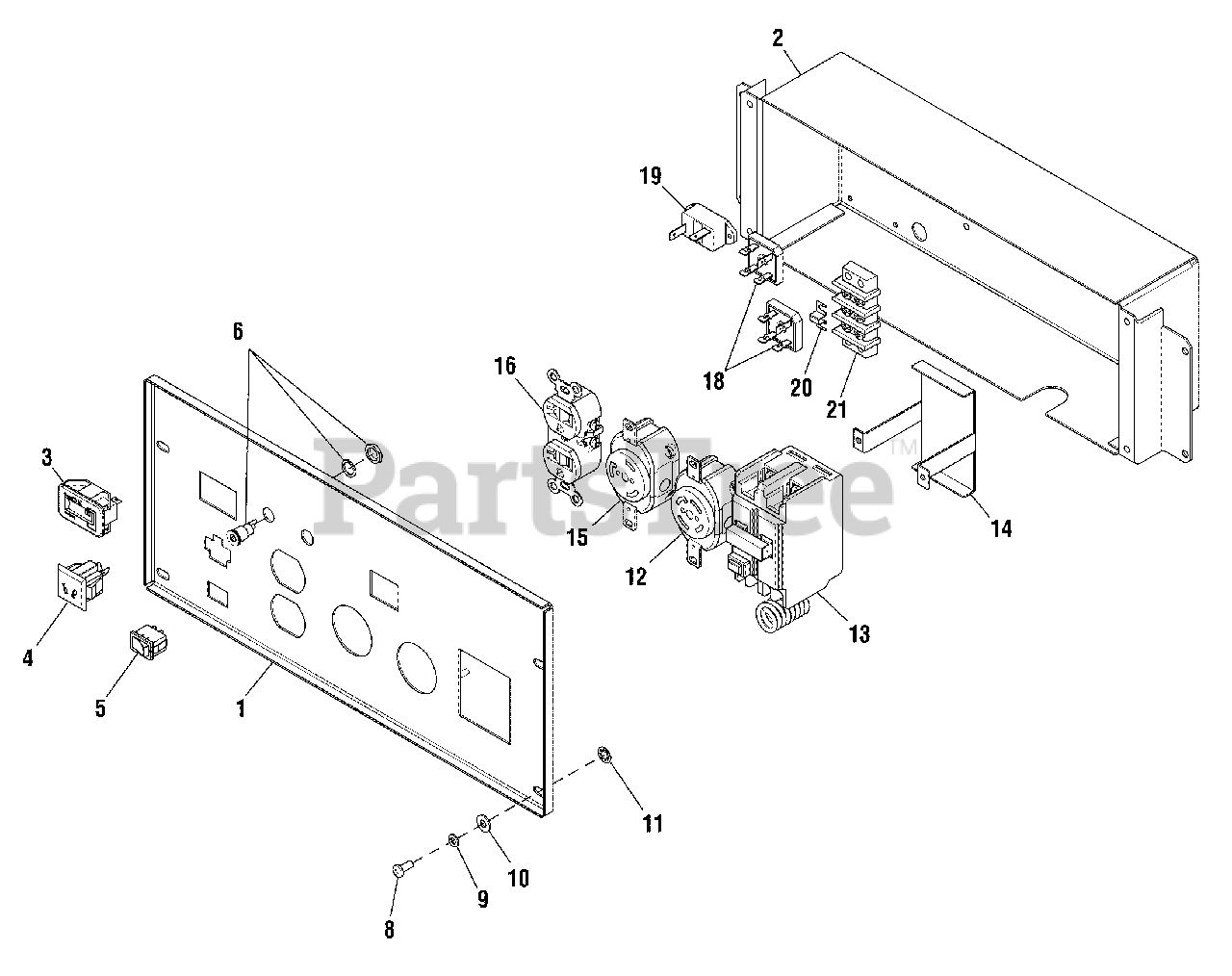

030554-00 - Briggs & Stratton 5,000 Watt Portable Generator Control Panel (318566) Parts Diagram

5,000 Watt Portable Generator

Control Panel (318566) Parts Diagram

  • Title

1

Briggs & Stratton 318376GS

PANEL-CONTROL

$

$

Currently unavailable

2

Briggs & Stratton 318378GS

BOX-CONTROL

$

$

Currently unavailable

3

Briggs & Stratton 202602GS

HOUR METER

$103.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 90418GS

OUTLET

$

$

Not available

5

Briggs & Stratton 87799GS

SWITCH

$7.99

$

In Stock, Qty 6

0

6

Briggs & Stratton 186168GS

JACK COAXIAL
(Superseded to 208511GS)

$

$

Not available

8

-----

* SCREW, M5-0.8 x 12

$

$

Not available

9

-----

* WASHER, Lock

$

$

Not available

10

-----

* WASHER, Flat

$

$

Not available

11

-----

* WASHER, Shakeproof

$

$

Not available

12

Briggs & Stratton 43437GS

OUTLET

$

$

Not available

13

Briggs & Stratton 192828BGS

CIRCUIT BREAKER

$197.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 192931GS

BRACKET

$

$

Not available

15

Briggs & Stratton 68868GS

OUTLET
(Superseded to 705932)

$39.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 68759GS

OUTLET

$26.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton B4894GS

RECTIFIER

$

$

Not available

19

Briggs & Stratton 87962GS

CIRCUIT BREAKER

$30.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 193095GS

JUMPER

$

$

Not available

21

Briggs & Stratton 193077GS

TERMINAL STRIP

$22.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 318941GS

HARNESS-WIRE POWER

$

$

Currently unavailable

--

Briggs & Stratton 318948GS

HARNESS-WIRE IGNITION

$

$

Not available
