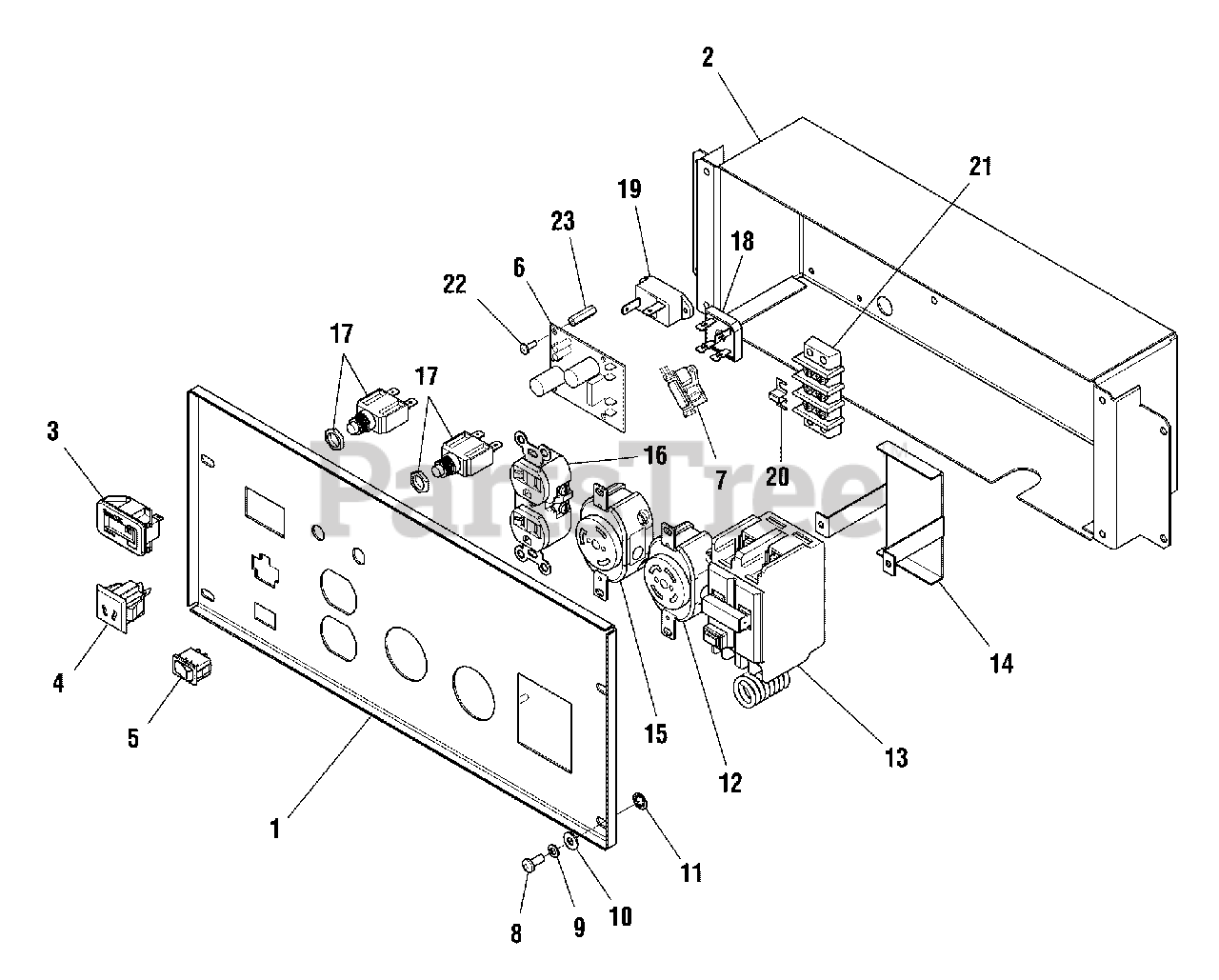

030557-00 - VOX 6,500 Watt Portable Generator Control Panel (318549) Parts Diagram

6,500 Watt Portable Generator

Control Panel (318549) Parts Diagram

  • Title

1

Briggs & Stratton 192833GS

PANEL-CONTROL

$434.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 318378GS

BOX-CONTROL

$

$

Currently unavailable

3

Briggs & Stratton 202602GS

HOUR METER

$97.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 90418GS

OUTLET

$

$

Not available

5

Briggs & Stratton 82538GS

SWITCH

$6.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 193362GS

BOARD-POWER CONTROL

$164.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 84028GS

TRANSFORMER

$47.99

$

In Stock, only 2 left!

0

8

-----

* SCREW-M5-0.8 x 12

$

$

Not available

9

-----

* WASHER-LOCK

$

$

Not available

10

-----

* WASHER-FLAT

$

$

Not available

11

-----

* WASHER-SHAKEPROOF

$

$

Not available

12

Briggs & Stratton 43437GS

OUTLET

$17.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 192828DGS

CIRCUIT-BREAKER

$215.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 192931GS

BRACKET

$46.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 68868GS

OUTLET
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 68759GS

OUTLET

$24.99

$

In Stock, only 2 left!

0

17

Briggs & Stratton 202394GS

CIRCUIT-BREAKER

$33.99

$

In Stock, only 2 left!

0

18

Briggs & Stratton B4894GS

RECTIFIER

$

$

Not available

19

Briggs & Stratton 87962GS

CIRCUIT-BREAKER

$29.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 193095GS

JUMPER

$13.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 193077GS

TERMINAL STRIP

$21.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 208595GS

SCREW

$42.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 64525GS

STANDOFF

$5.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 318766GS

HARNESS-WIRE POWER

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 205018GS

HARNESS-WIRE IDLE

Note: (Not Illustrated)

$36.99

$

Usually ships in 2-12 days

0
