030557-00 - VOX 6,500 Watt Portable Generator Main Unit (318551) Parts Diagram

6,500 Watt Portable Generator

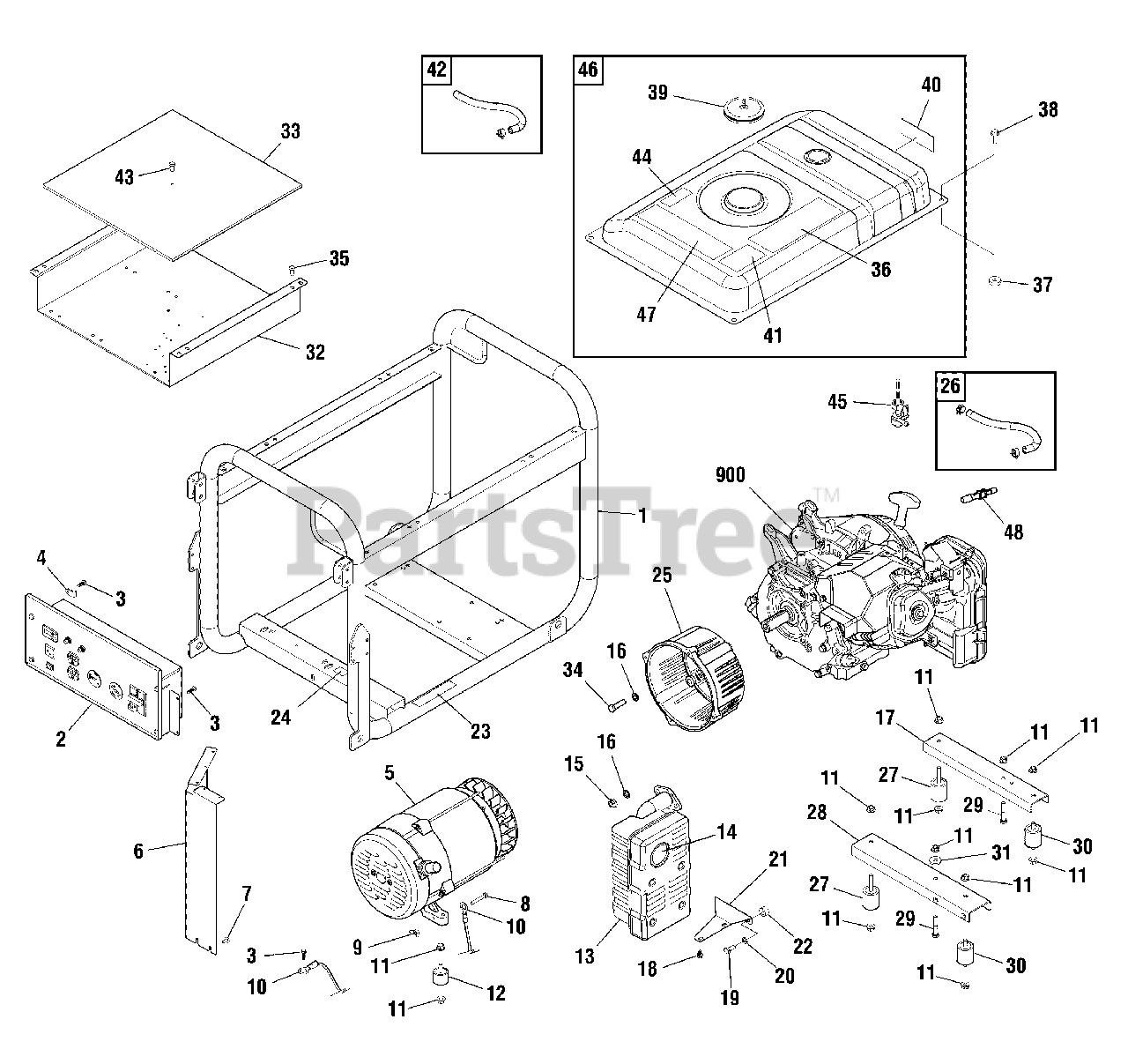

Main Unit (318551) Parts Diagram

  • Title

1

Briggs & Stratton 318303BXGS

CRADLE

Note: (Includes Ref. Nos. 23 & 24)

$

$

Currently unavailable

2

Briggs & Stratton 318297GS

PANEL-CONTROL

$1489.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B2153GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 315831GS

CLAMP

$3.99

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR

$

$

Not available

6

Briggs & Stratton 194390GS

HEATSHIELD

$86.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 192376GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

8

-----

* CAPSCREW, HEX HEAD, M6-1.0 x 40

$

$

Not available

9

Briggs & Stratton 87680GS

NUT-WING

$7.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 14353621GS

WIRE
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 20+

0

12

Briggs & Stratton 85652GS

MOUNT-VIBRATION
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 17

0

13

Briggs & Stratton 192569GS

MUFFLER

$179.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 83083GS

SCREEN

$9.49

$

In Stock, Qty 8

0

15

-----

* NUT-HEX M8 1.25

$

$

Not available

16

-----

* WASHER-LOCK 3/8

$

$

Not available

17

Briggs & Stratton 92531BXGS

BRACKET-SUPPORT

$29.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 66476GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

19

-----

* CAPSCREW, HEX HEAD. 5/16-18 x 0.75

$

$

Not available

20

-----

* WASHER-LOCK M8

$

$

Not available

21

Briggs & Stratton 193048GS

BRACKET-MUFFLER

$28.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 31579GS

SPACER

$19.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 196830GS

DECAL

$15.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B4986GS

DECAL

$2.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 208537GS

ADAPTER-ENGINE

$119.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 791745

KIT-FUEL HOSE

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 7

0

27

Briggs & Stratton B5073GS

MOUNT-VIBRATION

$

$

Currently unavailable

28

Briggs & Stratton 92731BXGS

BRACEKT-SUPPORT

$

$

Currently unavailable

29

-----

* CAPSCREW, HEX HEAD, M8-1.25 x 45

$

$

Not available

30

Briggs & Stratton B5072GS

MOUNT-VIBRATION

$12.99

$

In Stock, only 1 left!

0

31

Briggs & Stratton 50190GS

WASHER

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 208564GS

HEATSHIELD

$133.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 92665GS

INSULATION

$16.99

$

Usually ships in 2-12 days

0

34

-----

* CAPSCREW, HEX HEAD, 3/8-16 x 1-1/4

$

$

Not available

35

Briggs & Stratton B1797GS

CLIP-TREE

$3.99

$

In Stock, Qty 8

0

36

Briggs & Stratton 189235GS

DECAL

$19.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 193588GS

SPACER

$5.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 197955GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 314951GS

CAP-FUEL

$

$

Not available

40

Briggs & Stratton 197797GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 202997GS

DECAL

$13.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 315017GS

HOSE-VAPOR

$28.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 85000GS

CLIP-INSULATION

$2.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 312728GS

DECAL

$10.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 310574GS

FUEL VALVE

$10.99

$

In Stock, Qty 5

0

46

Briggs & Stratton 703803

TANK-FUEL

$347.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 194799GS

DECAL

$11.99

$

In Stock, only 1 left!

0

48

Briggs & Stratton 200082GS

CONNECTOR

$8.99

$

In Stock, only 1 left!

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton BB3061BGS

OIL (Qty 2 Required)
(Superseded to 100005)

Note: (Not Illustrated)

$8.99

$

In Stock, Qty 8

0

--

Briggs & Stratton 43438GS

PLUG

Note: (Not Illustrated)

$26.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 65787GS

CABLE-BTTRY CHARGE

Note: (Not Illustrated)

$24.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 37806GS

PLUG
(Superseded to 100523GS)

Note: (Not Illustrated)

$20.99

$

Usually ships in 2-12 days

0
