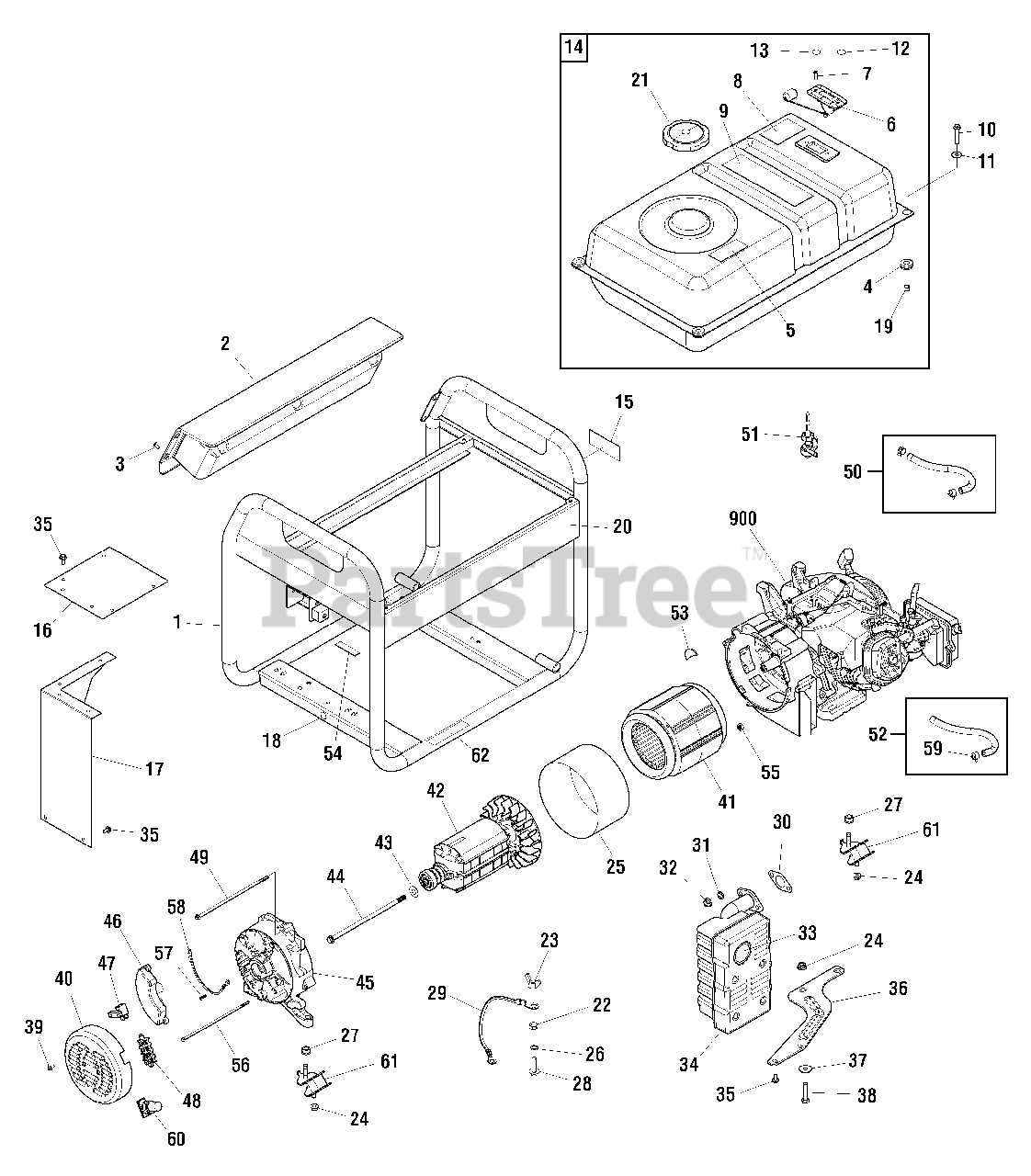

030592F-00 - Briggs & Stratton Storm 6,250 Watt Portable Generator Main Unit (80016137) Parts Diagram

Storm 6,250 Watt Portable Generator

Main Unit (80016137) Parts Diagram

  • Title

1

Briggs & Stratton 318988GS

CRADLE

$723.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 708694

PANEL-CONTROL

$513.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 703804

SCREW

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 189134GS

GROMMET

$4.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 319065GS

DECAL

$7.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 704183

GAUGE-FUEL

$18.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 314440GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 202997GS

DECAL

$14.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 319064GS

DECAL

$7.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 703805

SCREW

$11.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 312005GS

WASHER

$3.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 313462GS

DECAL

$10.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 313461GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 704184

TANK-FUEL

$457.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 704142

DECAL

$12.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 319456GS

HEATSHIELD

$23.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 319455GS

HEATSHIELD

$96.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 704331

DECAL

$10.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 189137GS

SPACER

$4.49

$

In Stock, only 4 left!

0

20

Briggs & Stratton 704141

DECAL

$19.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 319587GS

CAP-FUEL

$20.99

$

In Stock, only 2 left!

0

22

Briggs & Stratton 52857GS

NUT

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

24

-----

* NUT, Flange Lock, M8

$

$

Not available

25

Briggs & Stratton 704236

BAND

$44.99

$

Usually ships in 2-12 days

0

26

-----

* WASHER, Ext, Shakeproof, M6

$

$

Not available

27

-----

* NUT, Flange Lock, M10

$

$

Not available

28

Briggs & Stratton 706166

BOLT
(Superseded to 590703)

$3.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 706165

WIRE

$8.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 813085GS

GASKET
(Superseded to 797770)

$7.49

$

In Stock, only 1 left!

0

31

-----

* WASHER, Lock, M8

$

$

Not available

32

-----

* NUT, Hex, M8 1.25

$

$

Not available

33

Briggs & Stratton 83083GS

SCREEN

$9.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 192569GS

MUFFLER

$183.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 706152

SCREW
(Superseded to 590850)

$3.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 319457GS

BRACKET-MUFFLER

$34.99

$

In Stock, only 1 left!

0

37

-----

* WASHER, Flat, M8

$

$

Not available

38

-----

* CAPSCREW, Hex Head, M8-1.25 x 40

$

$

Not available

39

Briggs & Stratton 207824GS

SCREW

$4.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 313364GS

END COVER

$34.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 703572

STATOR

$626.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 703573

ROTOR

$492.99

$

In Stock, only 1 left!

0

43

Briggs & Stratton 207826GS

WASHER

$4.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 704235

BOLT

$11.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 207838GS

CARRIER-BEARING

$106.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 207840GS

VOLTAGE REGULATOR

$

$

Not available

47

Briggs & Stratton 207827GS

BRUSH ASSY

$

$

Not available

48

Briggs & Stratton 316945GS

TERMINAL BLOCK

$9.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 708693

BOLT

$5.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 791745

KIT-FUEL HOSE (cut to fit)

$11.99

$

In Stock, Qty 5

0

51

Briggs & Stratton 209417GS

VALVE-FUEL

$8.99

$

In Stock, Qty 15

0

52

Briggs & Stratton 315017GS

KIT-HOSE VAPOR

$30.99

$

In Stock, only 2 left!

0

53

Briggs & Stratton 706376

COVER-RUBBER

$4.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 706535

PAD-RUBBER

$4.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 207878GS

NUT

$7.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 705787

BOLT

$8.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 312911GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 706150

WIRE

$7.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 314955GS

CLAMP

$5.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 207879GS

COVER-RUBBER

$7.49

$

In Stock, only 2 left!

0

61

Briggs & Stratton 319451GS

MOUNT-VIBRATION

$

$

Not available

62

Briggs & Stratton 319066GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 206775GS

CORDSET

Note: (Not Illustrated)

$

$

Not available
