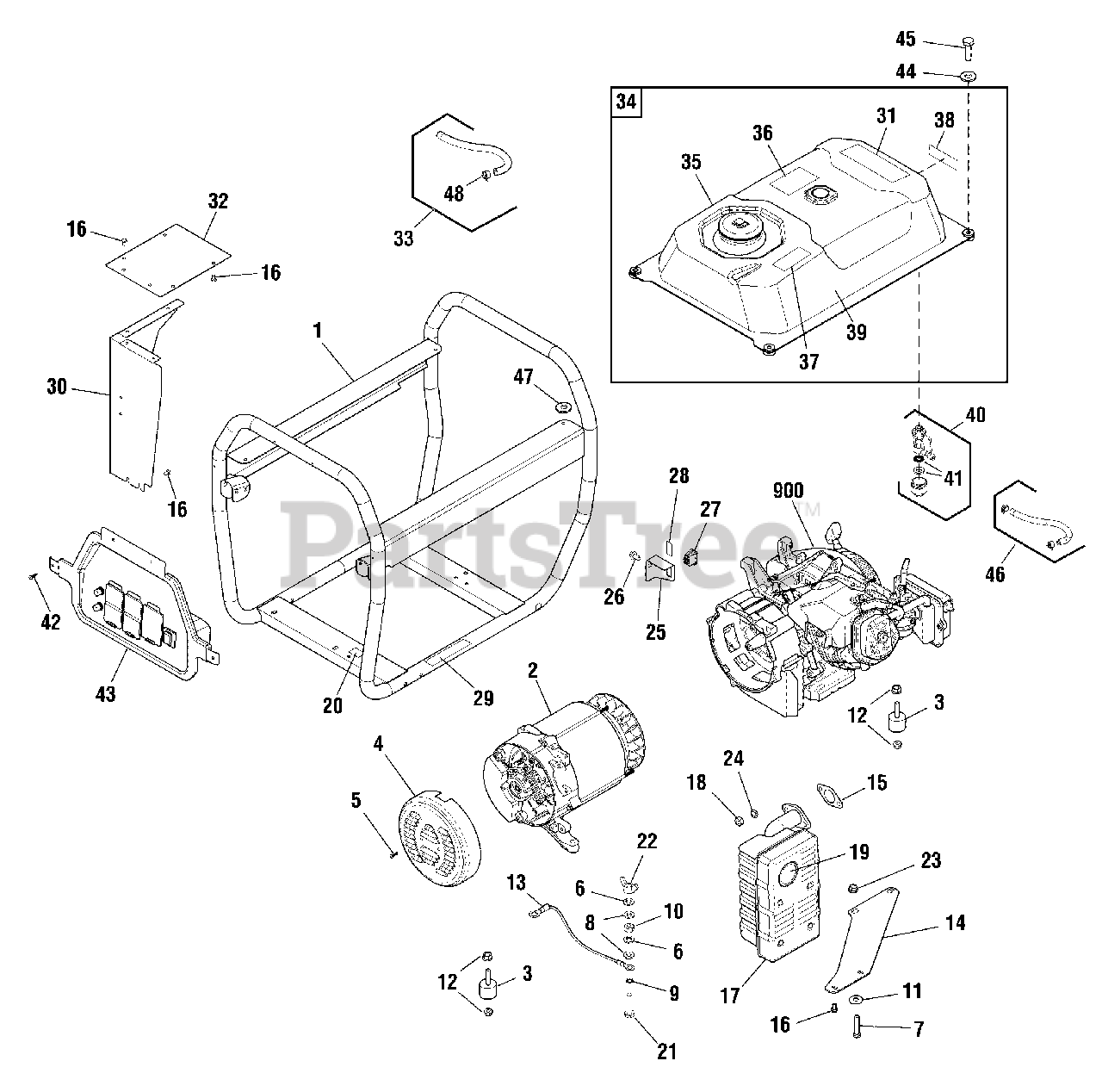

030594-01 - Troy-Bilt 6,250 Watt Portable Generator Main Unit (80006161) Parts Diagram

6,250 Watt Portable Generator

Main Unit (80006161) Parts Diagram

  • Title

1

Briggs & Stratton 318787GS

CRADLE

Note: (Includes Ref Nos. 20 & 29)

$

$

Currently unavailable

2

-----

ALTERNATOR

$

$

Not available

3

Briggs & Stratton 318779GS

MOUNT-VIBRATION

$14.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 312870GS

COVER-REAR BEARING

$14.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 312909GS

SCREW

$3.49

$

In Stock, only 2 left!

0

6

-----

* WASHER, Lock, 1/4

$

$

Not available

7

-----

* CAPSCREW, Hex Head, M10-1.5 x 45

$

$

Not available

8

-----

* WASHER, Flat, M6

$

$

Not available

9

Briggs & Stratton 26850GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

10

-----

* NUT, Hex, M6-1.0

$

$

Not available

11

Briggs & Stratton 189295GS

WASHER
(Superseded to 22304GS)

$3.49

$

In Stock, Qty 17

0

12

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 18

0

13

Briggs & Stratton 313481GS

WIRE

$6.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 312941GS

BRACKET

$25.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 794818

GASKET

$8.99

$

In Stock, only 2 left!

0

16

-----

* CAPSCREW, Hex Head, M6-1.0 x 10

$

$

Not available

17

Briggs & Stratton 192569GS

MUFFLER

$183.99

$

In Stock, only 1 left!

0

18

-----

* NUT, Hex, M8 1.25

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN

$9.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL

$3.49

$

In Stock, only 1 left!

0

21

-----

* CAPSCREW, Hex Head, M6-1.0 x 25

$

$

Not available

22

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

23

-----

* NUT, Lock, M10

$

$

Not available

24

-----

* WASHER, Lock, 3/8

$

$

Not available

25

Briggs & Stratton 319282GS

BRACKET

$5.99

$

In Stock, only 1 left!

0

26

-----

* SCREW, Flange, M8-10

$

$

Not available

27

Briggs & Stratton 797340

SWITCH-ROCKER

$18.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 319663GS

DECAL

$7.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 319066GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 318782GS

HEATSHIELD

$103.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 319064GS

DECAL

$7.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 318781GS

HEATSHIELD

$34.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 315017GS

HOSE-VAPOR

$30.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 704138

TANK-FUEL

$489.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 319385GS

CAP-FUEL

$25.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 319661GS

DECAL

$13.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 202997GS

DECAL

$14.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 319065GS

DECAL

$7.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 197797GS

DECAL

$9.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 319662GS

DECAL

$13.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 310574GS

FUEL VALVE

$10.99

$

In Stock, Qty 6

0

41

Briggs & Stratton 189759GS

KIT-FUEL VALVE REPAIR
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 6

0

42

Briggs & Stratton 313075GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 318776GS

PANEL-CONTROL

$366.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 312976GS

WASHER

$4.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 704203

SCREW

$4.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 791745

KIT-FUEL HOSE

Note: (Cut to Fit)

$11.99

$

In Stock, Qty 8

0

47

Briggs & Stratton 193588GS

WASHER-FLAT

$5.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 316173GS

CLAMP

$5.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available
