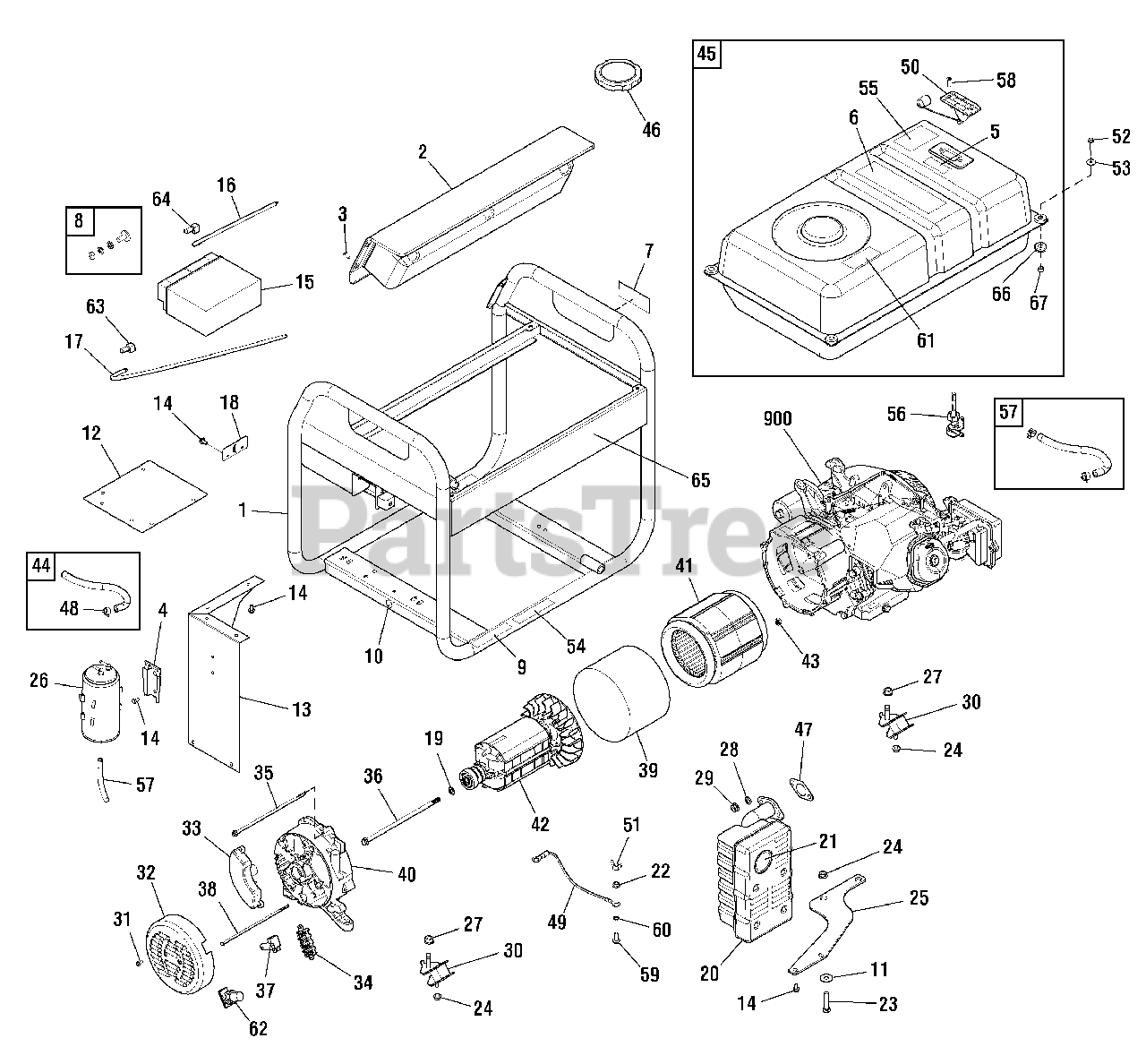

030638-00 - Briggs & Stratton 8,000 Watt Portable Generator Main Unit (80010064) Parts Diagram

8,000 Watt Portable Generator

Main Unit (80010064) Parts Diagram

  • Title

1

Briggs & Stratton 705784

CRADLE

$

$

Currently unavailable

2

Briggs & Stratton 705785

PANEL-CONTROL

$

$

Currently unavailable

3

Briggs & Stratton 703804

SCREW

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 318884GS

BRACKET

$13.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 703264

DECAL

$16.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 319064GS

DECAL

$7.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 704142

DECAL

$11.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 315546GS

KIT-HRDWR, BATTERY TERMINAL

$8.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 705545

DECAL

$11.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 704331

DECAL

$10.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B2495GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 705489

HEATSHIELD

$56.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 705503

HEATSHIELD

$99.99

$

Usually ships in 2-12 days

0

14

-----

* SCREW, Flange, M6 x 12

$

$

Not available

15

Briggs & Stratton 316345GS

BATTERY

$246.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 312014GS

CABLE-BTTRY, RED

$22.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 312026GS

CABLE-BTTRY, BLACK

$21.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 311983GS

PLATE-BATTERY

$9.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 207826GS

WASHER

$4.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 192569GS

MUFFLER

$179.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 83083GS

SCREEN

$9.49

$

In Stock, Qty 8

0

22

Briggs & Stratton 52857GS

NUT

$3.49

$

Usually ships in 2-12 days

0

23

-----

* CAPSCREW, Hex Head, M8-1.25 x 40

$

$

Not available

24

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 20+

0

25

Briggs & Stratton 319457GS

SUPPORT-MUFFLER

$34.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 209044GS

CARB CANISTER

$64.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 52859GS

NUT

$2.49

$

Usually ships in 2-12 days

0

28

-----

* WASHER, Lock, M8

$

$

Not available

29

-----

* NUT, Hex, M8 1.25

$

$

Not available

30

Briggs & Stratton 319451GS

MOUNT-VIBRATION

$13.99

$

In Stock, Qty 17

0

31

Briggs & Stratton 207824GS

SCREW

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 209428GS

END COVER

$31.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 312038GS

VOLTAGE REGULATOR

$65.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 316945GS

TERMINAL BLOCK

$9.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 704237

BOLT

$7.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 705786

BOLT

$11.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 207827GS

BRUSH ASSY

$

$

Not available

38

Briggs & Stratton 705787

BOLT

$7.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 705788

BAND-STATOR

$12.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 207838GS

CARRIER-BEARING

$106.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 705789

STATOR

$620.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 705790

ROTOR

$434.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 207878GS

NUT

$7.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 315017GS

HOSE-VAPOR

$28.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 704184

TANK-FUEL

$431.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 319587GS

CAP-FUEL

$19.99

$

In Stock, only 1 left!

0

47

Briggs & Stratton 813085GS

GASKET
(Superseded to 797770)

$6.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 314955GS

CLAMP

$4.99

$

In Stock, only 1 left!

0

49

Briggs & Stratton 312040GS

WIRE

$6.99

$

In Stock, only 1 left!

0

50

Briggs & Stratton 704183

GAUGE-FUEL

$17.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 703805

BOLT

$10.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 312005GS

WASHER

$3.99

$

In Stock, only 3 left!

0

54

Briggs & Stratton 319066GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 202997GS

DECAL

$13.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 209417GS

VALVE-FUEL

$8.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 791745

KIT-FUEL HOSE

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 7

0

58

Briggs & Stratton 314440GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

59

-----

* BOLT, Flange, M6 x 16

$

$

Not available

60

-----

* WASHER, Shakeproof, M6

$

$

Not available

61

Briggs & Stratton 319065GS

DECAL

$6.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 207879GS

BOOT

$6.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 319821GS

CAP-WIRE, BLACK

$3.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 319405GS

CAP-WIRE, RED

$3.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 705500

DECAL

$71.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 189134GS

GROMMET

$4.99

$

In Stock, only 4 left!

0

67

Briggs & Stratton 189137GS

SPACER

$4.49

$

In Stock, only 4 left!

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton B4177GS

CHARGER-BATTERY
(Superseded to 705927)

$38.99

$

In Stock, only 1 left!

0
