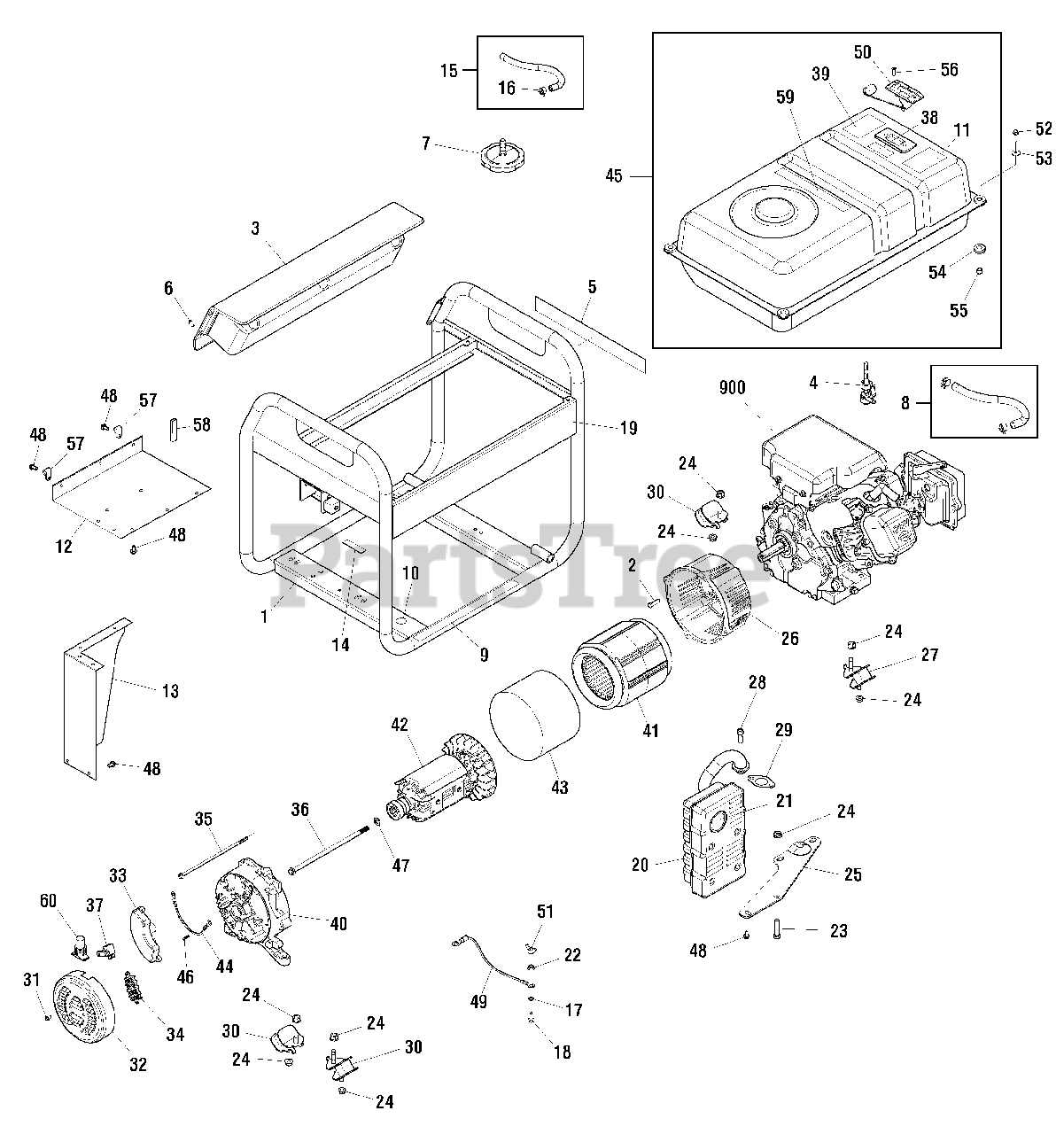

030661-01 - Briggs & Stratton 3,500 Watt Portable Generator Main Unit (80018050) Parts Diagram

3,500 Watt Portable Generator

Main Unit (80018050) Parts Diagram

  • Title

1

Briggs & Stratton 707619

CRADLE

Note: (Includes Ref. Nos. 7, 9, 10 & 19)

$335.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 313368GS

BOLT

$12.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 704284

ASSY-CONTROL PANEL

$291.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 209417GS

VALVE-FUEL

$8.99

$

In Stock, Qty 20+

0

5

Briggs & Stratton 707623

DECAL

$5.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 703804

SCREW

$4.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 314950GS

CAP-FUEL

$

$

Not available

8

Briggs & Stratton 791745

KIT-FUEL HOSE

Note: (Cut to fit.)

$10.99

$

In Stock, Qty 6

0

9

Briggs & Stratton 704187

DECAL

$5.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 704331

DECAL

$10.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 202997GS

DECAL

$13.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 313522GS

HEATSHIELD

$58.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 313523GS

HEATSHIELD

$58.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 706535

PAD-RUBBER

$4.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 315017GS

HOSE

$28.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 314955GS

CLAMP

$4.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton 26850GS

WASHER

$2.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 706166

SCREW

$5.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 707621

DECAL

$11.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 188301GS

MUFFLER

$152.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 83083GS

SCREEN

$9.49

$

In Stock, Qty 8

0

22

Briggs & Stratton 52857GS

NUT

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 313524GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 20+

0

25

Briggs & Stratton 191785GS

SUPPORT-MUFFLER

$16.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 704266

ADAPTER-ENGINE

$101.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 706149

MOUNT-VIBRATION

$10.99

$

In Stock, Qty 7

0

28

Briggs & Stratton 706921

KIT-HARDWARE MUFFLER

$5.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 798516

GASKET

$4.99

$

In Stock, only 1 left!

0

30

Briggs & Stratton 209425GS

MOUNT-VIBRATION
(Superseded to 706149)

$10.99

$

In Stock, Qty 7

0

31

Briggs & Stratton 207824GS

SCREW

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 313364GS

END COVER

$32.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 209420GS

VOLTAGE REGULATOR

$51.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 316945GS

TERMINAL BLOCK

$9.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 209427GS

BOLT

$8.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 313525GS

BOLT

$7.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 207827GS

BRUSH ASSY

$

$

Not available

38

Briggs & Stratton 703264

DECAL

$16.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 704192

DECAL

$12.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 209423GS

CARRIER-BEARING

$149.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 313527GS

STATOR

$291.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 313529GS

ROTOR

$260.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 706154

BOND

$5.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 706150

WIRE

$6.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 707622

TANK-FUEL

Note: (Includes Ref. Nos. 11, 38, 39 & 59)

$335.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 207824GS

SCREW

$4.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 207826GS

WASHER

$4.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 706152

SCREW

$4.49

$

In Stock, only 2 left!

0

49

Briggs & Stratton 706153

WIRE

$6.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 311992GS

GAUGE-FUEL

$18.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 703805

BOLT

$10.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 312005GS

WASHER

$3.99

$

In Stock, only 3 left!

0

54

Briggs & Stratton 189134GS

GROMMET

$4.99

$

In Stock, only 4 left!

0

55

Briggs & Stratton 189137GS

SPACER

$4.49

$

In Stock, only 4 left!

0

56

Briggs & Stratton 314440GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 315042GS

CLAMP

$2.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 707616

EDGING-RUBBER

$11.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 704193

DECAL

$13.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 207879GS

BOOT

$6.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 15T212-1115-G8

** ENGINE

$

$

Not available

--

Briggs & Stratton 100005

OIL BOTTLE

$8.99

$

In Stock, Qty 8

0
