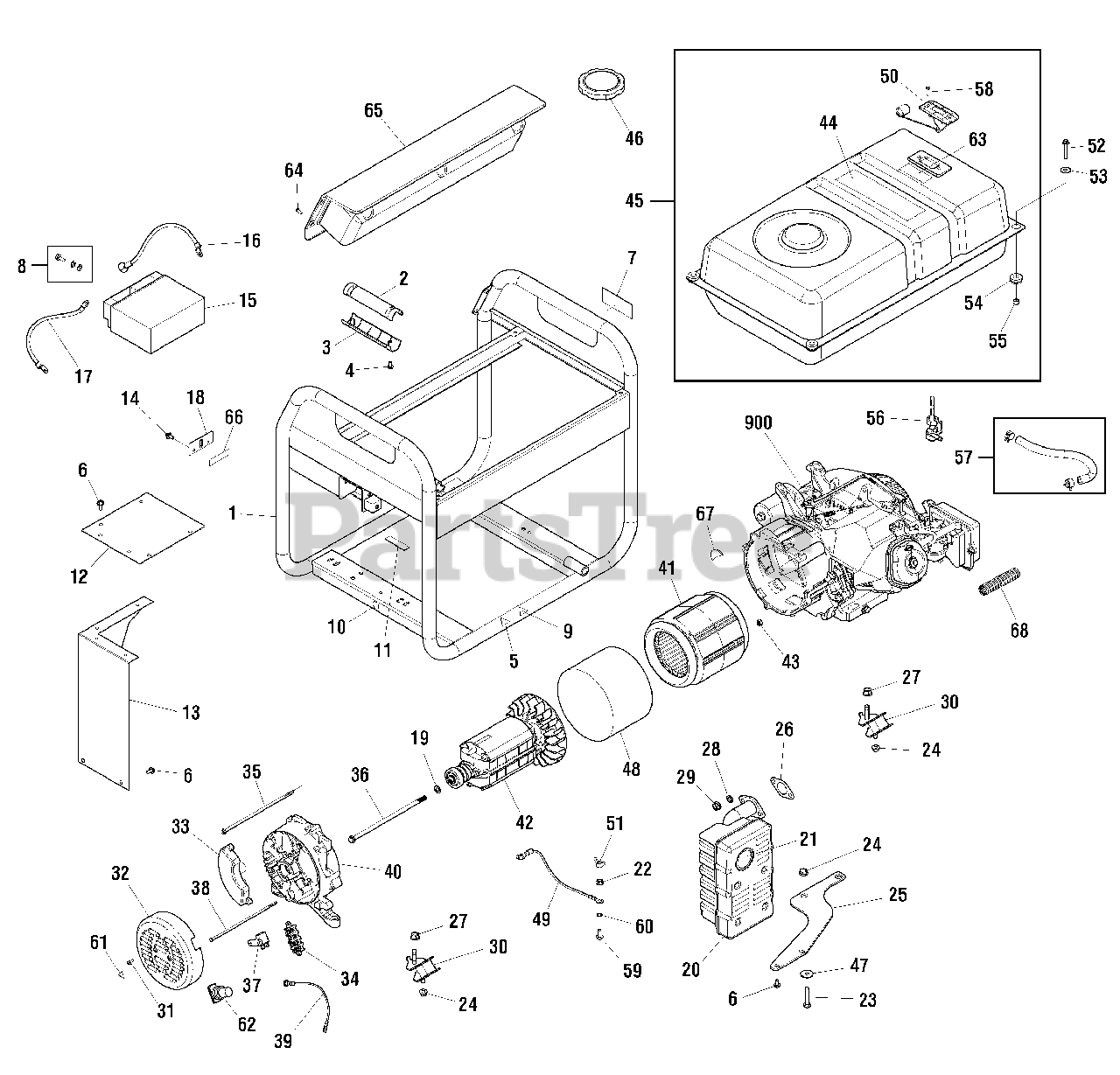

030668-00 - Briggs & Stratton 7,500 Watt Portable Generator Main Unit (80013624) Parts Diagram

7,500 Watt Portable Generator

Main Unit (80013624) Parts Diagram

  • Title

1

Briggs & Stratton 706171

CRADLE

$342.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 312008GS

GRIP-HANDLE

$17.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 312009GS

GRIP-HANDLE

$19.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 75477GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 315634GS

DECAL

$7.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 706152

SCREW
(Superseded to 590850)

$3.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 704330

DECAL

$11.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 315546GS

KIT-HRDWR, BATTERY TERMINAL

$9.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 315635GS

DECAL

$7.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 704331

DECAL

$10.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 706535

PAD-RUBBER

$4.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 312020GS

HEATSHIELD

$38.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 312019GS

HEATSHIELD

$64.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 209775GS

BOLT

$5.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 316435GS

BATTERY
(Superseded to 316345GS)

$261.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 312014GS

CABLE-BTTRY, RED

$23.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 312026GS

CABLE-BTTRY, BLACK

$22.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 311983GS

PLATE-BATTERY

$10.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 207826GS

WASHER

$4.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 192569GS

MUFFLER

$183.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 83083GS

SCREEN

$9.99

$

In Stock, only 2 left!

0

22

Briggs & Stratton 52857GS

NUT

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 57821GS

SCREW

$

$

Not available

24

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 18

0

25

Briggs & Stratton 319457GS

SUPPORT-MUFFLER

$34.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 813085GS

GASKET
(Superseded to 797770)

$7.49

$

In Stock, only 1 left!

0

27

Briggs & Stratton 52859GS

NUT

$

$

Not available

28

Briggs & Stratton 22237GS

WASHER
(Superseded to 703454)

$3.49

$

In Stock, Qty 5

0

29

Briggs & Stratton 45771GS

NUT

$6.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton 319451GS

MOUNT-VIBRATION

$

$

Not available

31

Briggs & Stratton 207824GS

SCREW

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 209428GS

END COVER

$33.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 312038GS

VOLTAGE REGULATOR

$68.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 316945GS

TERMINAL BLOCK

$9.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 312638GS

BOLT

$19.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 312639GS

BOLT

$8.99

$

In Stock, only 2 left!

0

37

Briggs & Stratton 207827GS

BRUSH ASSY

$

$

Not available

38

Briggs & Stratton 312640GS

BOLT

$7.49

$

In Stock, only 2 left!

0

39

Briggs & Stratton 706150

WIRE

$7.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 207838GS

CARRIER-BEARING

$106.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 706533

STATOR

$583.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 317336GS

ROTOR

$460.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 207878GS

NUT

$7.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 315637GS

DECAL

$7.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 704666

TANK-FUEL

$355.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 704655

CAP-FUEL

$18.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton B2495GS

WASHER-FLAT M8

$3.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 706168

BOND

$39.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 706165

WIRE

$8.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 704183

GAUGE-FUEL

$18.99

$

In Stock, only 2 left!

0

51

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 703805

BOLT

$11.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 312005GS

WASHER

$3.99

$

In Stock, only 3 left!

0

54

Briggs & Stratton 189134GS

GROMMET

$4.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 189137GS

SPACER

$4.49

$

In Stock, only 4 left!

0

56

Briggs & Stratton 209417GS

VALVE-FUEL

$8.99

$

In Stock, Qty 11

0

57

Briggs & Stratton 791745

KIT-FUEL HOSE

Note: (Cut to Fit)

$11.99

$

In Stock, only 3 left!

0

58

Briggs & Stratton 314440GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 706166

SCREW
(Superseded to 590703)

$3.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 26850GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 315636GS

DECAL

$7.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 207879GS

BOOT

$7.49

$

In Stock, only 2 left!

0

63

Briggs & Stratton 703264

DECAL

$17.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 703804

BOLT

$4.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 706169

CONTROL-PANEL

$592.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 706377

PAD-RUBBER

$4.49

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 706376

COVER-RUBBER

$4.49

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 706534

BELLOW

$39.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 316742GS

FUSE

Note: (Not Illustrated)

$14.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton B4177GS

CHARGER-BATTERY
(Superseded to 705927)

Note: (Not Illustrated)

$42.99

$

Usually ships in 2-12 days

0
