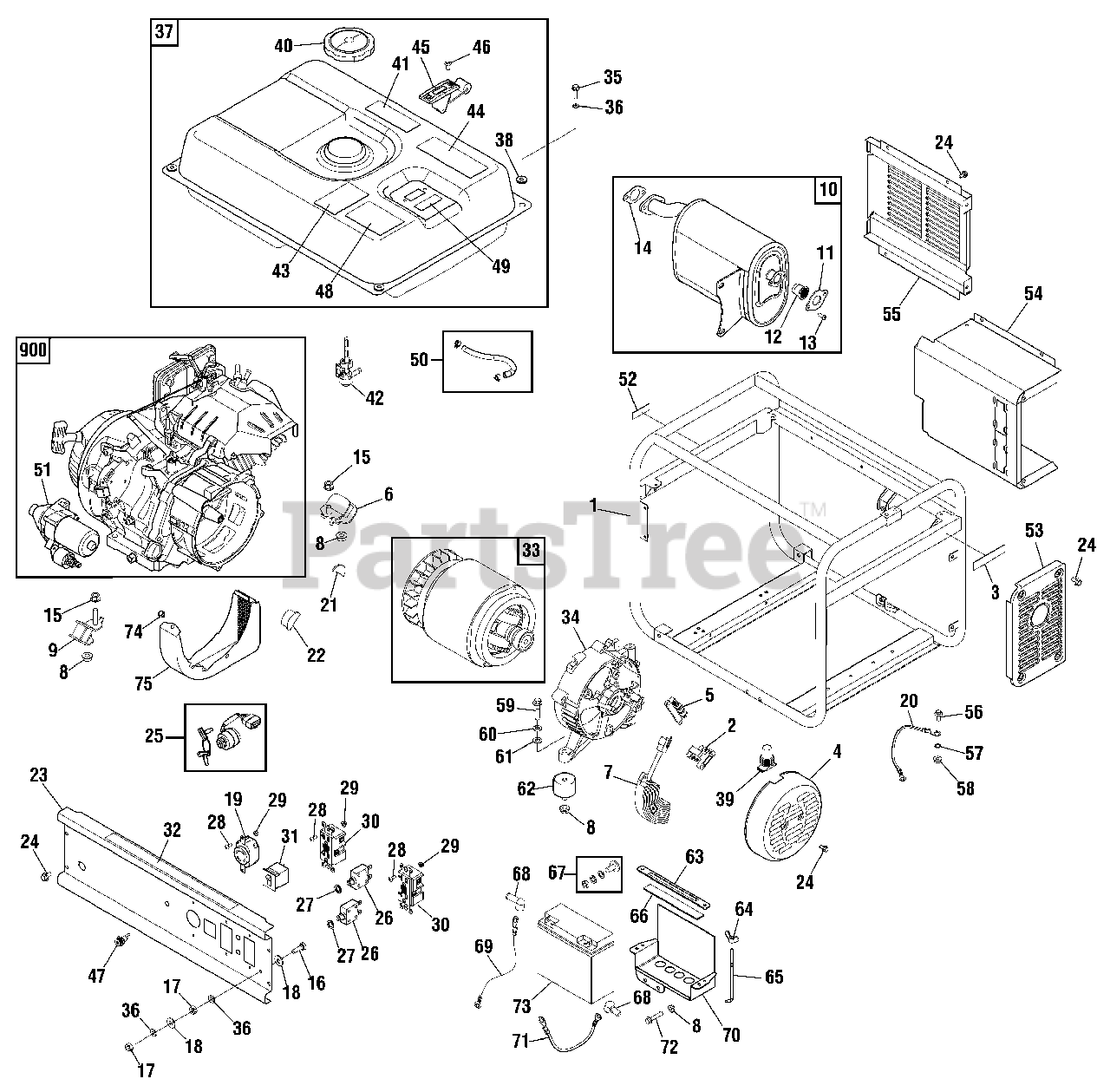

030687-00 - Brute 6,500 Watt Portable Generator Main Unit (80019472) Parts Diagram

6,500 Watt Portable Generator

Main Unit (80019472) Parts Diagram

  • Title

1

Briggs & Stratton 704095

CRADLE

Note: (Includes Ref. Nos. 3 & 52)

$175.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 704915

BRUSH ASSY

$7.49

$

In Stock, only 1 left!

0

3

Briggs & Stratton 704082

DECAL

$11.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 704838

END COVER

$31.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 705783

TERMINAL

$4.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 704890

MOUNT-VIBRATION

$10.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 704913

VOLTAGE REGULATOR

$57.99

$

Usually ships in 2-12 days

0

8

-----

* NUT, Flange, M8

$

$

Not available

9

Briggs & Stratton 704891

MOUNT-VIBRATION

$11.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 704084

ASSY-MUFFLER

$125.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 704845

PLATE

$4.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 704846

SPARK ARRESTOR

$8.49

$

Usually ships in 2-12 days

0

13

-----

* SCREW, M5 x 12

$

$

Not available

14

Briggs & Stratton 704853

GASKET-MUFFLER

$4.49

$

Usually ships in 2-12 days

0

15

-----

* NUT, Flange, M10

$

$

Not available

16

-----

* BOLT, M6 x 22

$

$

Not available

17

-----

* NUT, M6

$

$

Not available

18

-----

* WASHER, Flat, M6

$

$

Not available

19

Briggs & Stratton 704905

OUTLET

$15.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 705633

WIRE

$5.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 705772

GUARD-RUBBER

$4.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 705771

GUARD-RUBBER

$4.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 704419

PANEL-CONTROL

Note: (Includes Ref. No. 52)

$38.99

$

Usually ships in 2-12 days

0

24

-----

* BOLT, M6 x 12

$

$

Not available

25

Briggs & Stratton 704040

SWITCH-KEY

$38.99

$

In Stock, Qty 6

0

--

Briggs & Stratton 704051

KEY-SET

$6.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton 704907

BREAKER-CIRCUIT

$10.99

$

In Stock, only 2 left!

0

27

Briggs & Stratton 704909

NUT-BREAKER

$3.49

$

In Stock, only 2 left!

0

28

-----

* SCREW, M4 x 14

$

$

Not available

29

-----

* NUT, Flange, M4

$

$

Not available

30

Briggs & Stratton 709526

OUTLET

$68.99

$

In Stock, only 1 left!

0

31

Briggs & Stratton 704025

BREAKER-CIRCUIT

$58.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 704016

DECAL

$14.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 704077

ALTERNATOR

$762.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 704836

CARRIER-BEARING

$84.99

$

Usually ships in 2-12 days

0

35

-----

* BOLT, M6 x 20

$

$

Not available

36

-----

* WASHER, Lock, M6

$

$

Not available

37

Briggs & Stratton 704080

TANK-FUEL

$296.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 704861

MOUNT-VIBRATION

$4.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 207879GS

BOOT

$7.49

$

In Stock, only 2 left!

0

40

Briggs & Stratton 319587GS

CAP-FUEL

$20.99

$

In Stock, only 2 left!

0

41

Briggs & Stratton 709667

DECAL

$11.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 209417GS

VALVE-FUEL

$8.99

$

In Stock, Qty 11

0

43

Briggs & Stratton 709937

DECAL

$10.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 704017

DECAL

$14.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 704870

GAUGE-FUEL

$

$

Currently unavailable

46

-----

* SCREW-M5 x 10

$

$

Not available

47

Briggs & Stratton 186168GS

JACK-COAXIAL
(Superseded to 208511GS)

$

$

Not available

48

Briggs & Stratton 202997GS

DECAL

$14.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 703264

DECAL

$17.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 791745

KIT-FUEL HOSE

Note: (Cut to Fit)

$11.99

$

In Stock, only 3 left!

0

51

Briggs & Stratton 595628

ELECTRIC START

$140.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 704142

DECAL

$12.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 705776

COVER-FRONT

$22.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 704041

COVER-BACK

$57.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 705775

COVER-SIDE

$22.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 706152

SCREW
(Superseded to 590850)

$3.99

$

Usually ships in 2-12 days

0

57

-----

* WASHER, Lock, M6

$

$

Not available

58

-----

* NUT, Flange, M6

$

$

Not available

59

Briggs & Stratton 313524GS

BOLT
(Superseded to 590714)

$4.49

$

In Stock, Qty 5

0

60

-----

* WASHER, Lock, M8

$

$

Not available

61

-----

* WASHER, Flat, M8

$

$

Not available

62

Briggs & Stratton 704081

MOUNT-VIBRATION

$8.49

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 704019

BRACKET

$7.49

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 87680GS

WING NUT

$7.49

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 704083

J-BOLT

$6.49

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 704018

INSULATION

$132.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 315546GS

KIT-BATTERY HARDWARE

$9.49

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 704050

BOOT-CABLE

$5.49

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 704020

WIRE

$7.49

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 704070

TRAY-BATTERY

$40.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 704024

WIRE

$8.49

$

Usually ships in 2-12 days

0

72

-----

* BOLT, M8 x 40

$

$

Not available

73

Briggs & Stratton 316345GS

BATTERY

$261.99

$

In Stock, only 1 left!

0

74

-----

* BOLT, Flange, M6 x 8

$

$

Not available

75

Briggs & Stratton 709941

COVER-ALT

$30.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 24G035-0005-G1

** ENGINE

$

$

Currently unavailable

--

Briggs & Stratton 100028

OIL BOTTLE

Note: (Not Illustrated)

$18.99

$

In Stock, Qty 14

0

--

Briggs & Stratton 705927

BATTERY CHARGER
(Superseded to 84002790)

Note: (Not Illustrated)

$42.99

$

Usually ships in 2-12 days

0
