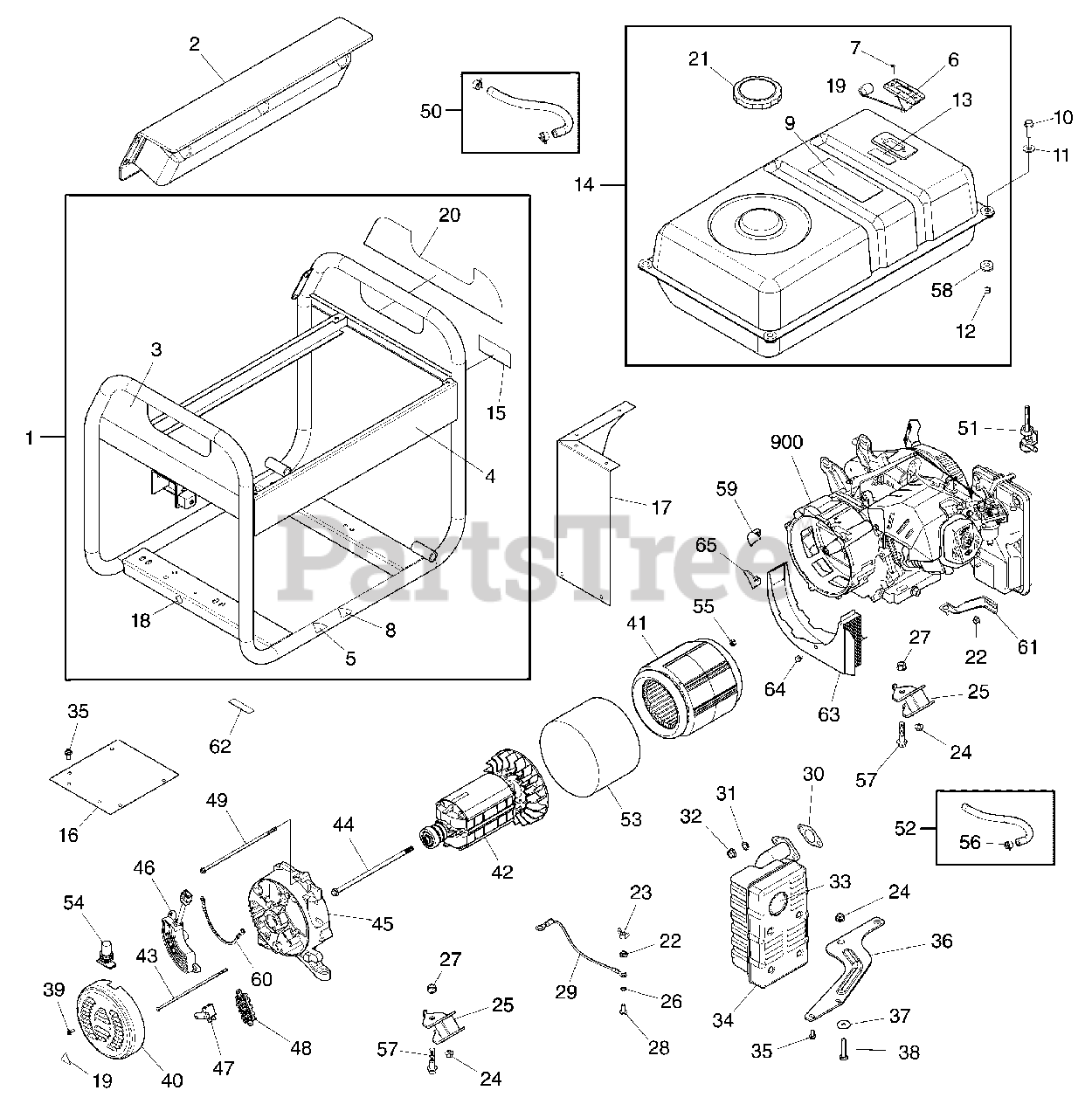

030709-00 - Briggs & Stratton 5,750 Watt Portable Generator Main Unit (80025211) Parts Diagram

5,750 Watt Portable Generator

Main Unit (80025211) Parts Diagram

  • Title

1

Briggs & Stratton 707589

CRADLE

Note: (Includes Ref. Nos. 3, 4, 5, 8, 15, 18 & 20)

$230.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 707468

PANEL-CONTROL

$434.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 707598

DECAL

$20.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 707593

DECAL

$20.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 315634GS

DECAL

$7.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 704183

GAUGE-FUEL

$18.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 314440GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 315635GS

DECAL

$7.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 707893

DECAL

$

$

Currently unavailable

10

Briggs & Stratton 703805

SCREW

$11.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 312005GS

WASHER

$3.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 189137GS

SPACER

$4.49

$

In Stock, only 4 left!

0

13

Briggs & Stratton 703264

DECAL

$17.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 707600

TANK-FUEL

$365.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 704330

DECAL

$11.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 319456GS

HEATSHIELD

$23.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 708881

HEATSHIELD

$80.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 704331

DECAL

$10.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 315636GS

DECAL

$7.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 707594

DECAL

$22.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 319587GS

CAP-FUEL

$20.99

$

In Stock, only 2 left!

0

22

* NUT, Flange Lock, M6

$

$

Not available

23

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

24

* NUT, Flange Lock, M8

$

$

Not available

25

Briggs & Stratton 708887

MOUNT-VIBRATION

$5401.99

$

Usually ships in 2-12 days

0

26

* WASHER, Ext Shakeproof, M6

$

$

Not available

27

Briggs & Stratton 709938

NUT

$7.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 706355

SCREW
(Superseded to 797686)

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 709932

WIRE

$5.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 704853

GASKET

$4.49

$

Usually ships in 2-12 days

0

31

* WASHER, Lock, M8

$

$

Not available

32

* NUT, Hex, M8 1.25

$

$

Not available

33

Briggs & Stratton 83083GS

SCREEN

$9.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 708878

MUFFLER

$142.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 706152

SCREW
(Superseded to 590850)

$3.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 708879

BRACKET-MUFFLER

$220.99

$

Usually ships in 2-12 days

0

37

* WASHER, Flat, M8

$

$

Not available

38

Briggs & Stratton 709934

BOLT

$10.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 709935

SCREW

$3.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 704838

END COVER

$31.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 707429

STATOR

$526.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 707432

ROTOR

$320.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 707298

BOLT

$7.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 707296

BOLT

$7.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 704836

CARRIER-BEARING

$84.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 704913

VOLTAGE REGULATOR

$57.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 704915

BRUSH ASSY

$7.49

$

In Stock, only 1 left!

0

48

Briggs & Stratton 705783

TERMINAL BLOCK

$4.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 707297

BOLT

$7.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 791745

KIT-FUEL, Hose (Cut To Fit)

Note: (Cut to Fit)

$11.99

$

In Stock, Qty 5

0

51

Briggs & Stratton 209417GS

VALVE-FUEL

$8.99

$

In Stock, Qty 15

0

52

Briggs & Stratton 315017GS

HOSE-VAPOR

Note: (Cut to Fit)

$30.99

$

In Stock, only 2 left!

0

53

Briggs & Stratton 707295

BAND-STATOR

$45.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 207879GS

BOOT

$7.49

$

In Stock, only 2 left!

0

55

Briggs & Stratton 709931

NUT

$3.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 314955GS

CLAMP

$5.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 709939

BOLT

$4.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 189134GS

GROMMET

$4.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 705771

COVER-RUBBER

$4.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 709940

WIRE

$5.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 708880

BRACKET-AIR CLEANER

$4.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 706535

PAD-RUBBER

$4.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 709941

COVER-ALT

$30.99

$

Usually ships in 2-12 days

0

64

SCREW-FLANGE M6 X 8

$

$

Not available

65

Briggs & Stratton 705772

COVER-RUBBER

$4.49

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 24G032-0006-G1

** ENGINE

$

$

Currently unavailable
