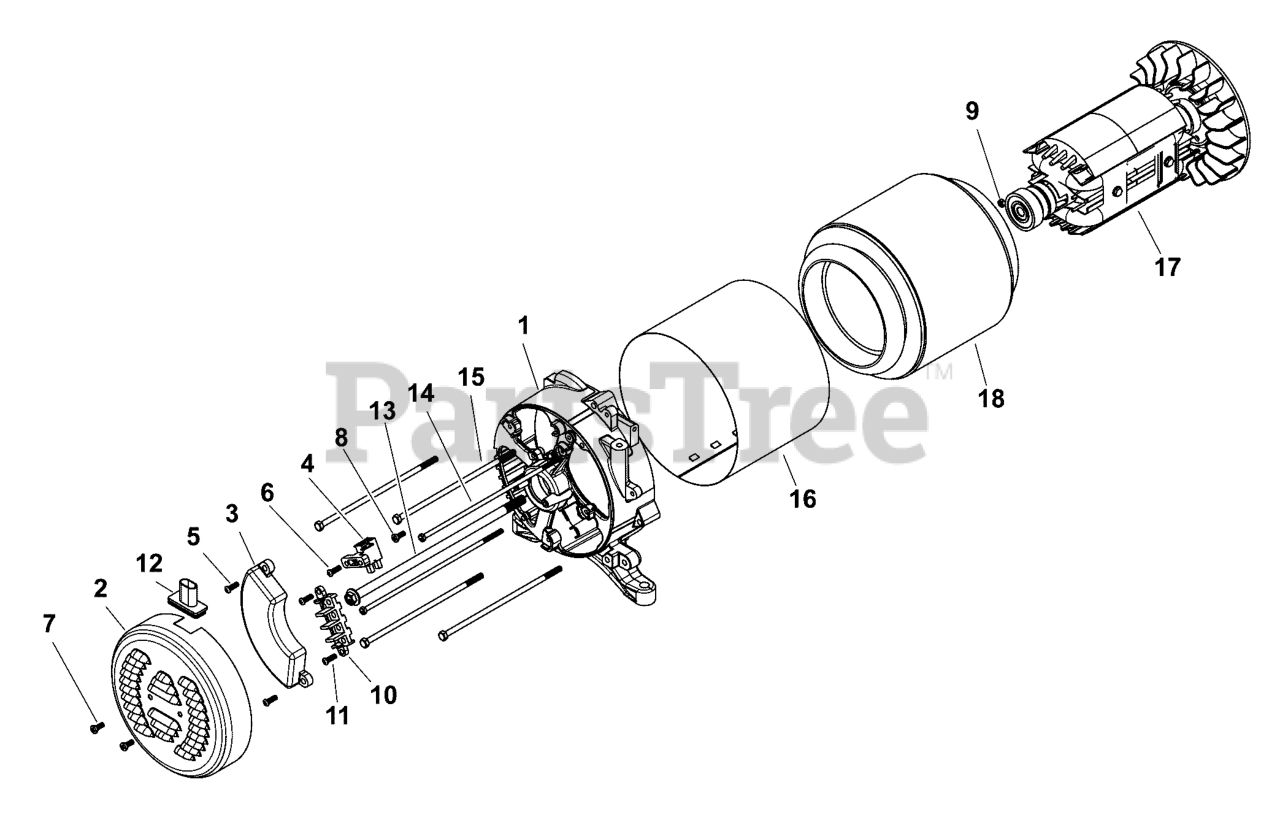

030728-04 - Briggs & Stratton Storm 6,250 Watt Portable Generator Alternator Parts Diagram

Storm 6,250 Watt Portable Generator

Alternator Parts Diagram

  • Title

1

Briggs & Stratton 312866GS

SUPPORT, Bearing

$88.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 312870GS

COVER, Rear Bearing

$14.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 312871GS

REGULATOR-VOLTAGE

$68.99

$

In Stock, only 3 left!

0

4

Briggs & Stratton 312904GS

BRUSH ASSEMBLY

$16.99

$

In Stock, Qty 8

0

5

Briggs & Stratton 312907GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 312908GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 312909GS

SCREW

$3.49

$

In Stock, only 2 left!

0

8

Briggs & Stratton 312911GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 312916GS

NUT

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 312921GS

BLOCK, Junction

$10.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 312922GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 703013

COVER, Alternator, Rubber

$5.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 703910

BOLT

$9.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 703908

BOLT

$7.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 703909

BOLT

$6.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 703911

BAND-STATOR

$47.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 706902

ROTOR

$464.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 706903

STATOR

$598.99

$

Usually ships in 2-12 days

0
