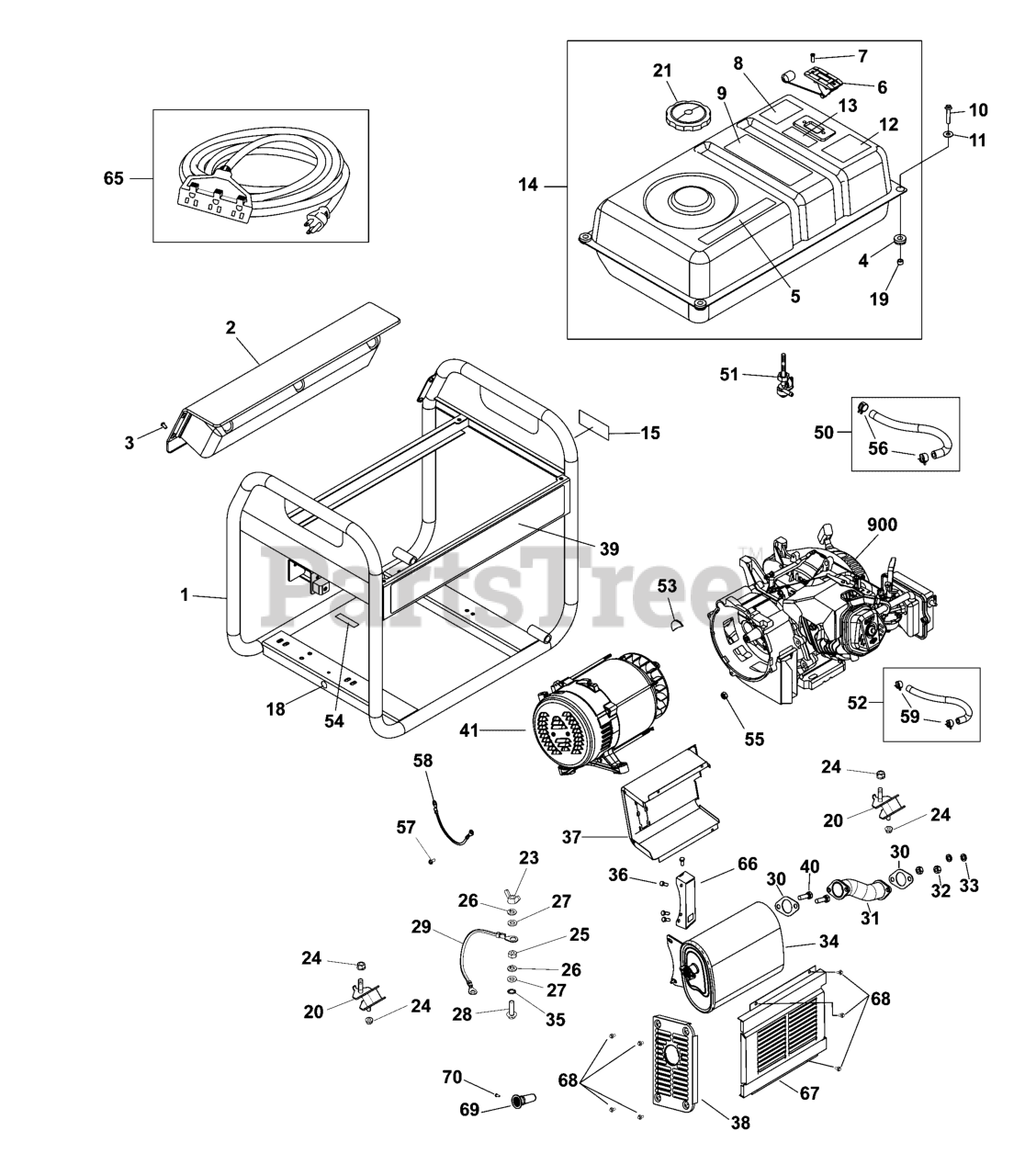

030728-04 - Briggs & Stratton Storm 6,250 Watt Portable Generator Main Unit Parts Diagram

Storm 6,250 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

CRADLE

$

$

Not available

2

Briggs & Stratton REF-80029808

Refer to: Control Panel Group

$

$

Currently unavailable

3

Briggs & Stratton 772229

SCREW

$3.49

$

In Stock, only 4 left!

0

4

Briggs & Stratton 189134GS

GROMMET, Rubber

$4.99

$

In Stock, only 4 left!

0

5

Briggs & Stratton 772237

DECAL

$8.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 704183

GAUGE-FUEL

$17.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 314440GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 772233

DECAL

$9.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 84007365

DECAL

$

$

Currently unavailable

10

Briggs & Stratton 703805

SCREW

$10.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 312005GS

WASHER

$3.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 202997GS

DECAL, Warning, CO

$13.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 703264

DECAL

$16.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 772227

TANK-FUEL

$431.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 772236

DECAL

$9.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 704331

DECAL

$10.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 189137GS

SPACER

$4.49

$

In Stock, only 4 left!

0

20

Briggs & Stratton 319451GS

MOUNT-VIBRATION

$13.99

$

In Stock, Qty 17

0

21

Briggs & Stratton 319587GS

CAP-FUEL

$19.99

$

In Stock, only 1 left!

0

23

Briggs & Stratton 87680GS

NUT, M6 - 1.0 Wing

$7.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 20+

0

25

Briggs & Stratton 49813GS

NUT, Hex, M6 - 1.0

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 22097GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 49811GS

WASHER

$1.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 45757GS

HHCS, M6 - 1.0 x 25

$3.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 706165

WIRE

$8.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 797770

GASKET, Exhaust

$6.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 84007593

MANIFOLD, Muffler

$

$

Currently unavailable

32

Briggs & Stratton 45771GS

NUT, M8 - 1.25

$6.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 22237GS

WASHER, Locking, 3/8

$2.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 84007592

MUFFLER

$

$

Currently unavailable

35

Briggs & Stratton 26850GS

WASHER, Ext. M6 - 1/4" Shakeproof

$2.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 84001684

BOLT

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 84007309

HEATSHIELD, Rear

$

$

Currently unavailable

38

Briggs & Stratton 84007310

HEATSHIELD, End

$

$

Currently unavailable

39

Briggs & Stratton 772231

DECAL

$14.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 43107GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton REF-80012663

Refer to: Alternator Group

$

$

Currently unavailable

50

Briggs & Stratton 791745

FUEL LINE, 16

Note: (Includes 2 Hose Clamps, Cut To Length)

$10.99

$

In Stock, Qty 7

0

51

Briggs & Stratton 209417GS

VALVE, Fuel

$8.99

$

In Stock, Qty 20+

0

52

Briggs & Stratton 315017GS

HOSE, Vapor (cut to fit)

Note: (Includes 1 Hose Clamp)

$28.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 706376

COVER-RUBBER

$3.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 706535

PAD-RUBBER

$4.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 709931

NUT

$3.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 791850

CLAMP-HOSE

$3.49

$

In Stock, Qty 20+

0

57

Briggs & Stratton 709935

SCREW

$3.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 706150

WIRE

$6.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 314955GS

CLAMP

$4.99

$

In Stock, only 1 left!

0

65

Briggs & Stratton 771800

CORDSET

$69.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 84007363

BRACKET, Muffler

$

$

Currently unavailable

67

Briggs & Stratton 84007310

HEATSHIELD, End

$

$

Currently unavailable

68

Briggs & Stratton 706152

SCREW, M6 x 12

$4.49

$

In Stock, only 2 left!

0

69

Briggs & Stratton 84007598

ARRESTOR, Spark

$

$

Currently unavailable

70

Briggs & Stratton 75475GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 80005671

*ENGINE

Note: *(Refer to Note:)

$

$

Currently unavailable
