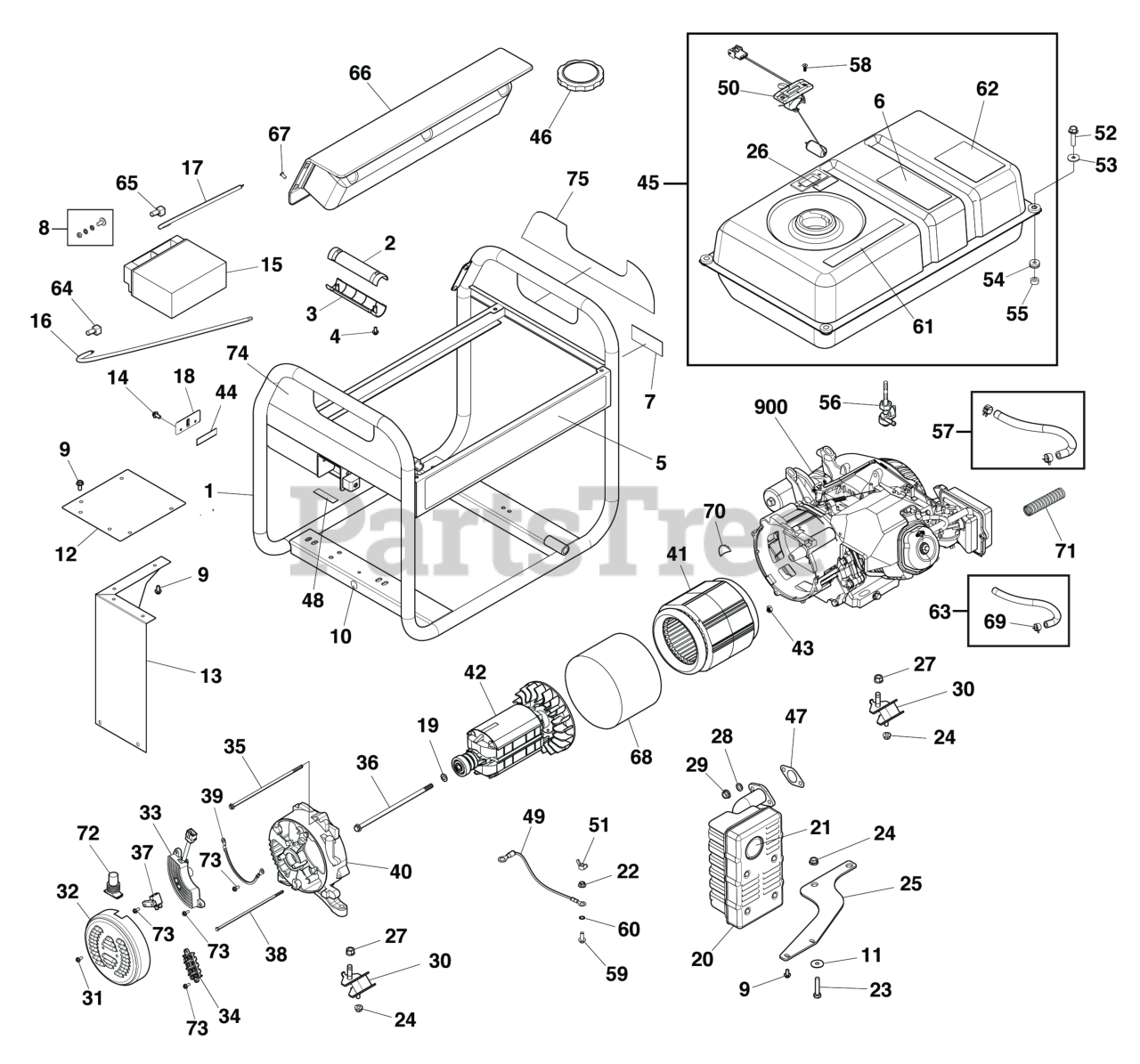

030742-00 - Briggs & Stratton 8,000 Watt Portable Generator Main Unit Parts Diagram

8,000 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 84002820

CRADLE

Note: (Includes Ref. Nos. 5, 7 & 10)

$288.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 312009GS

GRIP, Handle

$19.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 312008GS

GRIP, Handle

$17.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 75477GS

PPHMS, M5 - 0.8 x 20

$3.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 772231

DECAL

$15.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 772234

DECAL

$10.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 772236

DECAL

$10.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 315546GS

KIT, Hardware, Battery Terminal

$9.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 706152

SCREW, M6 x 12
(Superseded to 590850)

$3.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 704331

DECAL

$10.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B2495GS

WSHR, 25.4 X 8.45 X 1.4

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 312020GS

HEATSHIELD

$38.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 312019GS

HEATSHIELD

$64.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 209775GS

BOLT

$5.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 316345GS

BATTERY

$261.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 312014GS

CABLE-BATTRY, RED

$23.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 312026GS

CABLE-BTTRY, BLACK

$22.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 311983GS

PLATE-BATTERY

$10.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 207826GS

WASHER, Senci

$4.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 192569GS

MUFFLER

$183.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.99

$

In Stock, only 2 left!

0

22

Briggs & Stratton 52857GS

NUT-M6 FLANGE

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 57821GS

CAPSCREW, Hex Head, M8-1.25 x 40

$

$

Not available

24

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 18

0

25

Briggs & Stratton 319457GS

BRACKET, Muffler

$34.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 705398

DECAL

$11.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 52859GS

NUT, Lock

$

$

Not available

28

Briggs & Stratton 22237GS

WASHER, Locking, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

29

Briggs & Stratton 45771GS

NUT, M8 - 1.25

$6.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton 319451GS

MOUNT-VIBRATION

$

$

Not available

31

Briggs & Stratton 700308

SCREW

$3.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 312870GS

COVER, Rear Bearing

$14.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 701360

VOLTAGE REGULATOR

$77.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 312921GS

BLOCK, Junction

$10.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 703909

BOLT

$6.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 703910

BOLT

$9.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 312904GS

BRUSH ASSEMBLY

$16.99

$

In Stock, Qty 8

0

38

Briggs & Stratton 703908

BOLT

$7.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 706150

WIRE

$7.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 312866GS

SUPPORT, Bearing

$88.99

$

In Stock, only 1 left!

0

41

Briggs & Stratton 701363

STATOR

$743.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 701377

ROTOR

$524.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 312916GS

NUT

$3.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 706377

PAD-RUBBER

$4.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 84002823

TANK-FUEL

$

$

Currently unavailable

46

Briggs & Stratton 319587GS

CAP-FUEL

$20.99

$

In Stock, only 2 left!

0

47

Briggs & Stratton 813085GS

GASKET
(Superseded to 797770)

$7.49

$

In Stock, only 1 left!

0

48

Briggs & Stratton 706535

PAD-RUBBER

$4.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 706165

WIRE

$8.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 705407

GAUGE-FUEL

$69.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 87680GS

NUT, M6 - 1.0 Wing

$7.49

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 703805

SCREW

$11.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 312005GS

WASHER

$3.99

$

In Stock, only 3 left!

0

54

Briggs & Stratton 189134GS

GROMMET, Rubber

$4.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 189137GS

SPACER

$4.49

$

In Stock, only 4 left!

0

56

Briggs & Stratton 209417GS

VALVE, Fuel

$8.99

$

In Stock, Qty 16

0

57

Briggs & Stratton 791745

LINE, Fuel

$11.99

$

In Stock, Qty 8

0

58

Briggs & Stratton 314440GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 706166

SCREW
(Superseded to 590703)

$3.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 26850GS

WASHER, Ext. M6 - 1/4" Shakeproof

$2.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 772237

DECAL

$9.49

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 84002819

DECAL

$9.49

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 315017GS

HOSE, Vapor (cut to fit)

$30.99

$

In Stock, only 3 left!

0

64

Briggs & Stratton 319405GS

CAP-WIRE, RED

$3.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 319821GS

CAP-WIRE, BLACK

$3.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton REF-80080522

Refer To Control Panel Group

$

$

Currently unavailable

67

Briggs & Stratton 703804

SCREW

$4.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 703911

BAND-STATOR

$47.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 314955GS

CLAMP

$5.49

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 706376

COVER-RUBBER

$4.49

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 706534

BELLOWS

$39.99

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 207879GS

BOOT, Rubber

$7.49

$

In Stock, only 2 left!

0

73

Briggs & Stratton 84002093

SCREW

$2.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 84002822

DECAL

$14.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 84002824

DECAL

$13.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 25T235-0348-G1

ENGINE

$

$

Currently unavailable
