030751-00 - Brute 3,500 Watt Portable Generator Wiring Schematic Parts Diagram

3,500 Watt Portable Generator

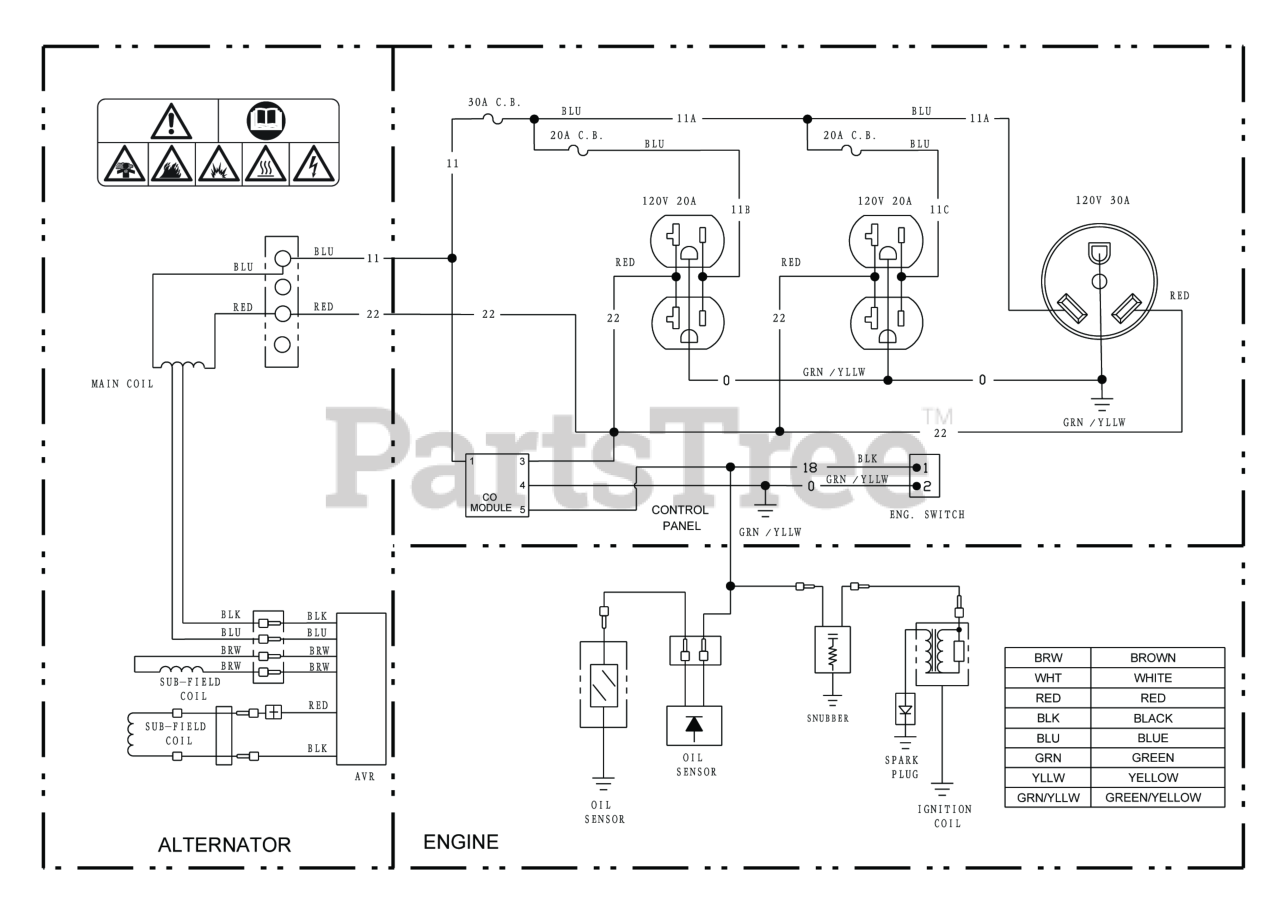

Wiring Schematic Parts Diagram

  • Title

--

Wiring Diagram/Schematic Only

$

$

Not available

--

WARNING - Generator Voltage Could Cause Electrical Shock or Burn Resulting in Death Or Serious Injury. To Avoid Electrical Shock Or Burn Hazard, Please Refer Service To Qualified Personnel.

$

$

Not available
