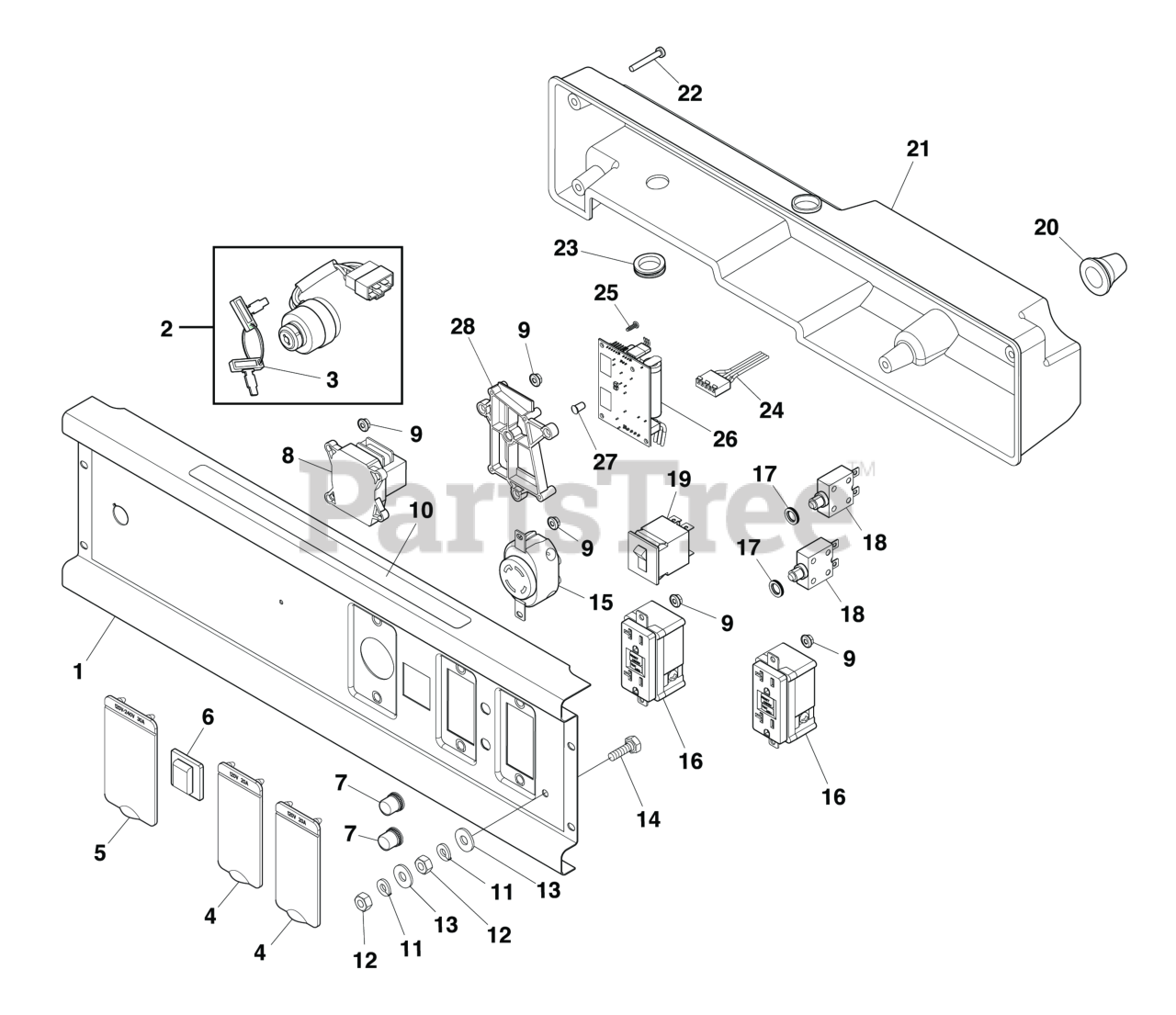

030752-00 - PowerBoss 6,500 Watt Portable Generator Control Panel Parts Diagram

6,500 Watt Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 84003485

PANEL-CONTROL

Note: (Includes Item 10)

$79.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 704040

SWITCH-KEY

$36.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 704051

KEY-SET

$6.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 319476GS

COVER-OUTLET

$9.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 319477GS

COVER-OUTLET

$

$

Not available

6

Briggs & Stratton 191481GS

BOOT, Breaker Circuit

$11.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 312636GS

BOOT, Circuit Breaker

$5.49

$

In Stock, only 4 left!

0

8

Briggs & Stratton 84002089

MODULE-BATTERY CHARGE

$32.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 795016

NUT

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 84003477

DECAL

$11.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 84003624

WASHER-LOCK

$

$

Currently unavailable

12

Briggs & Stratton 84003617

NUT-M6

$

$

Currently unavailable

13

Briggs & Stratton 84003618

WASHER-FLAT

$

$

Currently unavailable

14

Briggs & Stratton 84003619

BOLT-M6 x 22

$

$

Currently unavailable

15

Briggs & Stratton 704905

OUTLET

$14.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 709526

OUTLET-GFCI

$64.99

$

In Stock, only 2 left!

0

17

Briggs & Stratton 704909

NUT-BREAKER

$3.49

$

In Stock, only 2 left!

0

18

Briggs & Stratton 704907

BREAKER-CIRCUIT 20A

$9.99

$

In Stock, only 1 left!

0

19

Briggs & Stratton 704025

BREAKER-CIRCUIT

$55.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 319530GS

GROMMET

$7.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 84003484

BOX-CONTROL PANEL

$60.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 84003625

BOLT

$

$

Currently unavailable

23

Briggs & Stratton 84003620

GROMMET

$

$

Currently unavailable

24

Briggs & Stratton 772215

WIRE-HARNESS-CO

$27.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 84001081

SCREW

$1.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 772211

MODULE-CO

$182.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 772217

LIGHT-PIPE

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 772213

BRACKET-MODULE

$3.99

$

Usually ships in 2-12 days

0
